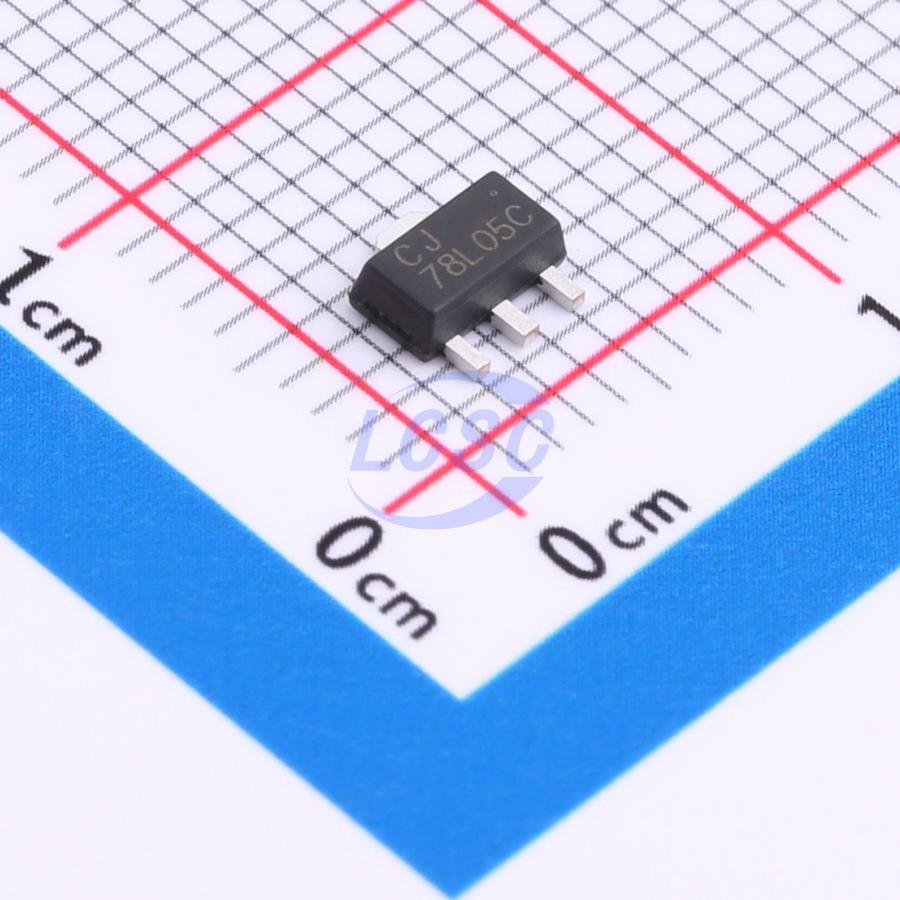

CJ78L05C-P3T-ARG

The CJ78L00C series is a group of three terminal positive voltage linear regulators with fixed voltage output. Its input voltage can reach up to 30V (or 35V) and can deliver output current up to 100mA with good power dissipation. The CJ78L00C series adopts fixed voltage output and no peripheral resistance, improving the space utilization efficiency of printed circuit boards (PCBs). In addition, the CJ78L00C series also integrates internal current limiting, thermal shutdown, and safe-area compensation, which helps protect the device from overload. Therefore, the CJ78L00C series is widely used in various scenarios, such as on card adjustment, to eliminate noise and distribution issues related to single point supervision. When used as a substitute for Zener diode resistor combinations, it can effectively increase output impedance and reduce bias current.

Applications

• Chemical or Gas Sensors
• Computing and Servers
• Field Transmitter: Temperature Sensors
• Flow Meters
• On-Card Regulation
• Telecommunications White Goods

Key features

• Available Output Voltage: 5.0V, 6.0V, 8.0V, 9.0V, 12V, 15V, 18V
• Maximum Input Voltage: 30V for VOUT < 10V; 35V for VOUT > 10V
• Maximum Output Current: up to 100mA
• Operating Junction Temperature: -40~125°C
• Output Voltage Tolerances at TJ = 25°C: ±3% for Conventional Device; ±2% can be Customized
• Output Voltage Tolerances of ±5% over the Temperature Range
• No External Components
• Build-in Current Limit
• Thermal Shutdown Protection
• Output Transistor Safe-Area Protection
