JSCJ

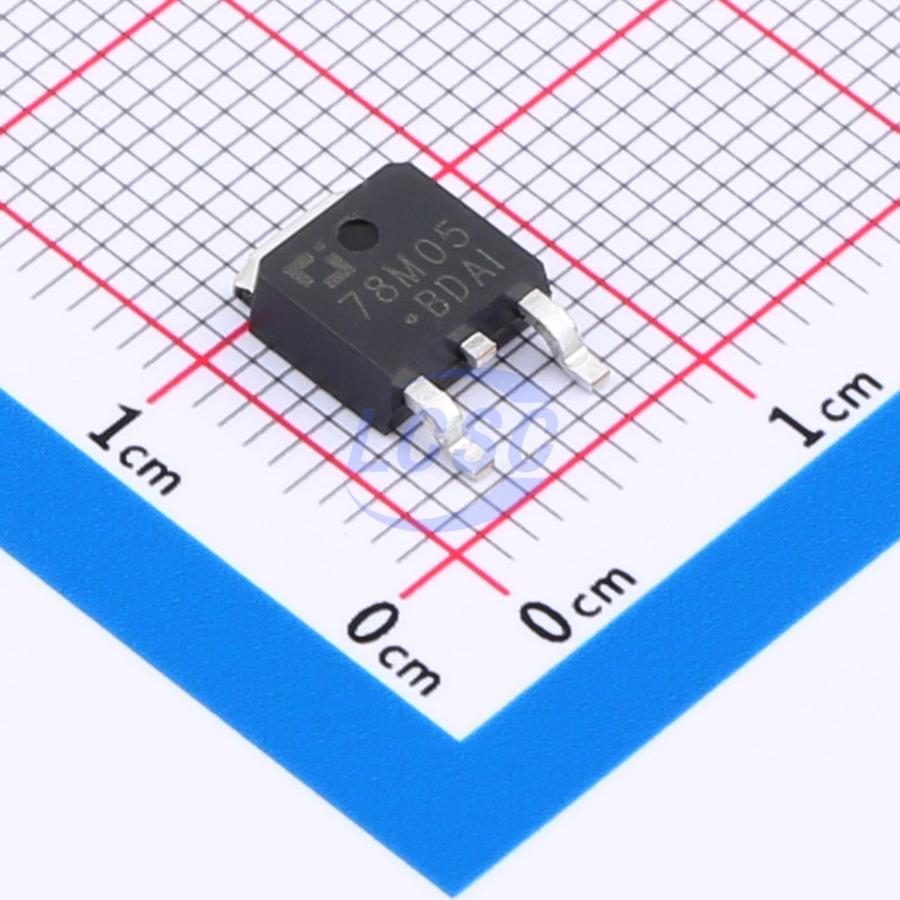

CJ78M05 3%

5V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252ROHS CompliantSold out at source

500mA three-terminal positive voltage regulator

Manufacturer: JSCJ
Manufacturer part #: CJ78M05 3%
Store part #: C19269071
Package / case: TO-252
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,105 in stock

#C19269071

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
5+	₹18.84	₹94.20
50+	₹14.78	₹739.00
150+	₹12.74	₹1,911.00
500+	₹11.22	₹5,610.00
2,500+	₹10.00	₹25,000.00
5,000+	₹9.38	₹46,900.00

Quantity (min 5, multiples of 5)

5 × ₹18.84

₹94.20

excl. GST

₹111.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CJ78M05 3%

₹94.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 6mA
Output Configuration: Positive
Output Current: 500mA
Operating Voltage: 25V
Output Type: Fixed
Features: Short Circuit Protection;Over Current Protection;Thermal shutdown

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Sold out at source
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.458 g

Overview

The CJ78M series is a group of three terminal positive voltage linear regulators with multiple fixed output voltages. In the case of good heat dissipation, it can provide an output current of 500mA, and has internal short-circuit protection and thermal shutdown protection, which makes it not affected by overload. In addition to being used as fixed voltage regulators, these devices can also be used with external components to obtain adjustable output voltage and current, and can also be used as power transmission elements in precision regulators.

Applications

Appliances and White Goods
Building Automation
Computing & Servers Electronic Point-of-sale
Motor Drives
On-Card Regulation
Portable Devices
Telecommunications TVs and Set-top Boxes

Key features

Output Current: up to 500mA at TJ = 25°C
Available Output Fixed Voltage: 5.0V, 6.0V, 8.0V, 9.0V and 12V
Output Voltage Tolerance: ±3% at TJ = 25°C, ±5% over the Operating TJ
Line Regulation: 3.0 - 10mV (Typ.) at TJ = 25°C
Load Regulation: 15 - 25mV (Typ.) at TJ = 25°C
Dropout Voltage: 2.0V@350mA
Power Supply Rejection Ratio: 80dB@120Hz (Typ.)
Operating Junction Temperature: -40 - 125°C
Built-in Current Limit
Short Circuit Protection
Thermal Shutdown Protection
Fixed Output Voltage Regulator
