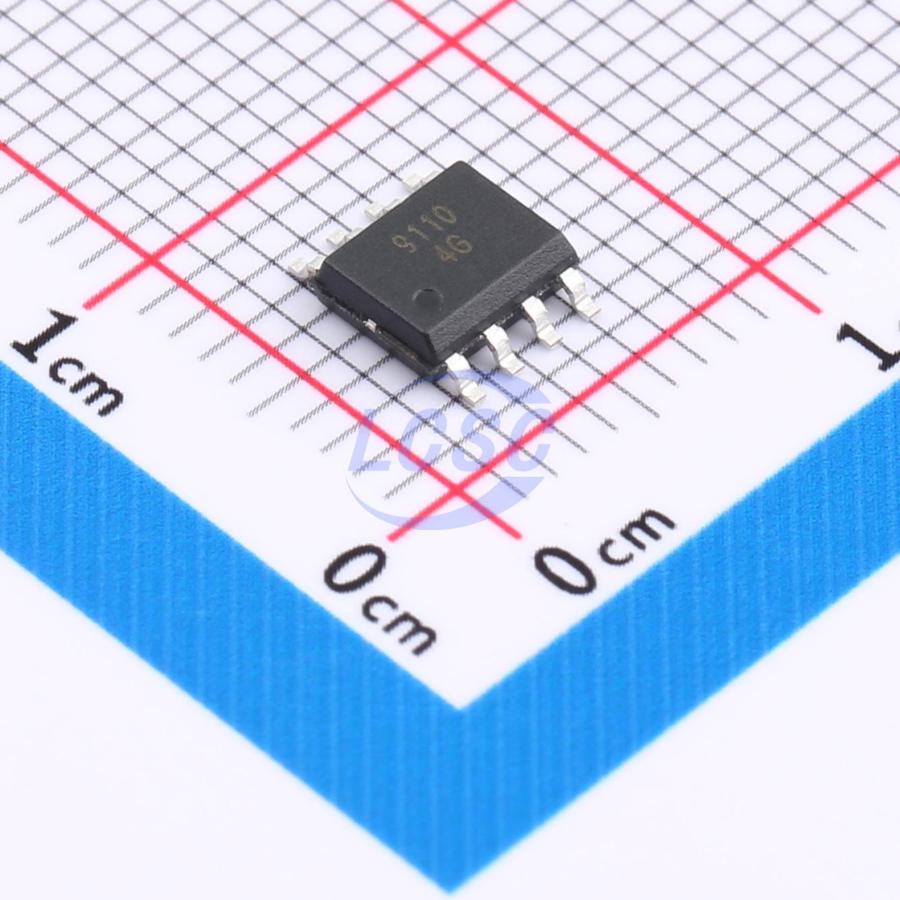

CJDR9110
1.2V~6V ESOP8 Motor Drivers, Controllers RoHS
Single Channel Full-bridge Motor Driver
- Manufacturer
- JSCJ
- Manufacturer part #
- CJDR9110
- Store part #
- C17703107
- Package / case
- ESOP8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,980 in stock
#C17703107
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.29 | ₹131.45 |
| 50+ | ₹20.64 | ₹1,032.00 |
| 150+ | ₹18.22 | ₹2,733.00 |
| 500+ | ₹15.20 | ₹7,600.00 |
| 2,500+ | ₹13.87 | ₹34,675.00 |
| 4,000+ | ₹13.06 | ₹52,240.00 |
5 × ₹26.29
₹131.45
excl. GST
₹155.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CJDR9110
₹131.45 for 5 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.2V~6V
- Operating Temperature
- -40℃~+100℃
- Supply Current (Iq)
- 10nA
- Output Current
- 1.3A
- Peak Current
- 2.3A
- RDS(on)
- 420mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
CJDR9110 is a 5V DC brushed motor drive, which is internally integrated with an H bridge composed of four MOSFETs, and can be controlled through PWM interfaces (IN / IN) compatible with industry standard devices. CJDR9110 can allow continuous output current up to 1.3A and peak current up to 2.3A, and also has functions such as thermal shutdown and undervoltage locking. Therefore, CJDR9110 is very suitable for cameras, toys, consumer products and other low-voltage battery powered equipment. CJDR9110 is a single-channel full-bridge driver that provides up to 1.3A continuous output current and can operate at 1.2~6.0V power supply voltage. CJDR9110 has industry standard compatible PWM (IN / IN) input interface, and has thermal shutdown protection functions.
Applications
- Video Camera
- Digital Single Lens Reflective (DSLR) Lens
- Toys
- Robotics
- Shared Bicycle Lock
- Water Gas Meter Switch
- Medical Equipment
- Electric Toothbrush
Key features
- Independent H-bridge motor
- Operating input voltage: 1.2~6.0V
- 420mΩ conduction internal resistance (HS + LS)
- 1.3A output current drive capability
- PWM control with IN 1 / IN 2
- Internal integrated current regulation function
- Low power sleep mode
- Thermal shutdown protection
- Undervoltage locking
