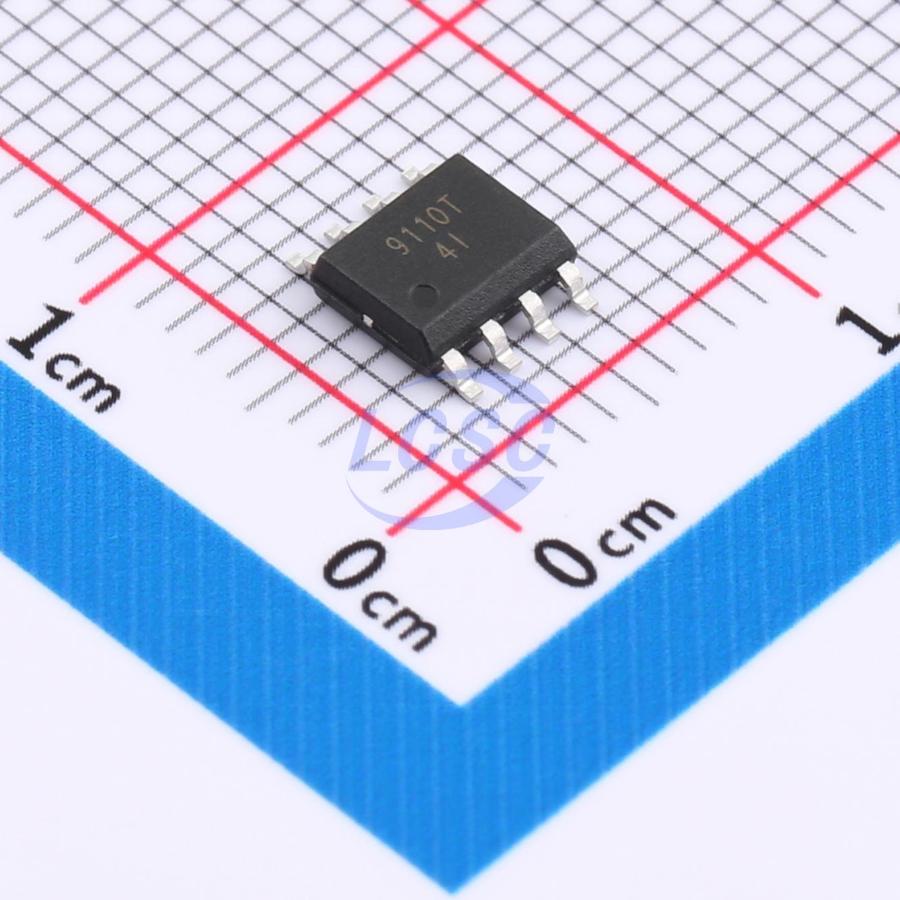

CJDR9110T
ESOP8 Motor Drivers, Controllers RoHS
ESOP8ROHS CompliantActive
12V Input Single Channel Full Bridge Motor Driver
- Manufacturer
- JSCJ
- Manufacturer part #
- CJDR9110T
- Store part #
- C17703108
- Package / case
- ESOP8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,655 in stock
#C17703108
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.12 | ₹135.60 |
| 50+ | ₹21.59 | ₹1,079.50 |
| 150+ | ₹19.22 | ₹2,883.00 |
| 500+ | ₹16.27 | ₹8,135.00 |
| 2,500+ | ₹14.95 | ₹37,375.00 |
| 4,000+ | ₹14.16 | ₹56,640.00 |
5 × ₹27.12
₹135.60
excl. GST
₹160.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CJDR9110T
₹135.60 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 1
- Features
- Over temperature protection;Under-voltage lockout;Overcurrent Protection;Short-Circuit Protection
- Technology
- Yes
- Operating Temperature
- -40℃~+100℃
- Output Current
- 1.5A
- Control Voltage
- 3.8V~12V
- RDS(on)
- 350mΩ
- Motor Drive Voltage(Vm)
- 3.8V~12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
CJDR9110T is a 12V, single channel, full bridge motor drive integrated circuit. It supports 12V power input supply voltage and can provide up to 1.5A continuous output current. CJDR9110T has a PWM (IN / IN) input interface and is compatible with industry standard devices.
Applications
- Video Camera
- Digital Single Lens Reflective (DSLR)
- Lens
- Toys
- Robotics
- Shared Bicycle Lock
- Water Meter Switch
- Medical Equipment
Key features
- Power supply input voltage: 3.8V~12V
- Output current: 1.5A for continuous operation 2.5A for peak current
- Low RDS ON: 350mΩ (HS + LS)
- Pulse width modulation (PWM) input, compatible with common logic input levels of 3.3V and 5.0V
- Sleep mode low current consumption: nA level
- Comprehensive protection:
- Thermal shutdown
- Undervoltage protection
- Built-in current limit
- Short circuit protection
- Automatic fault recovery
