JSCJDatasheet (PDF)

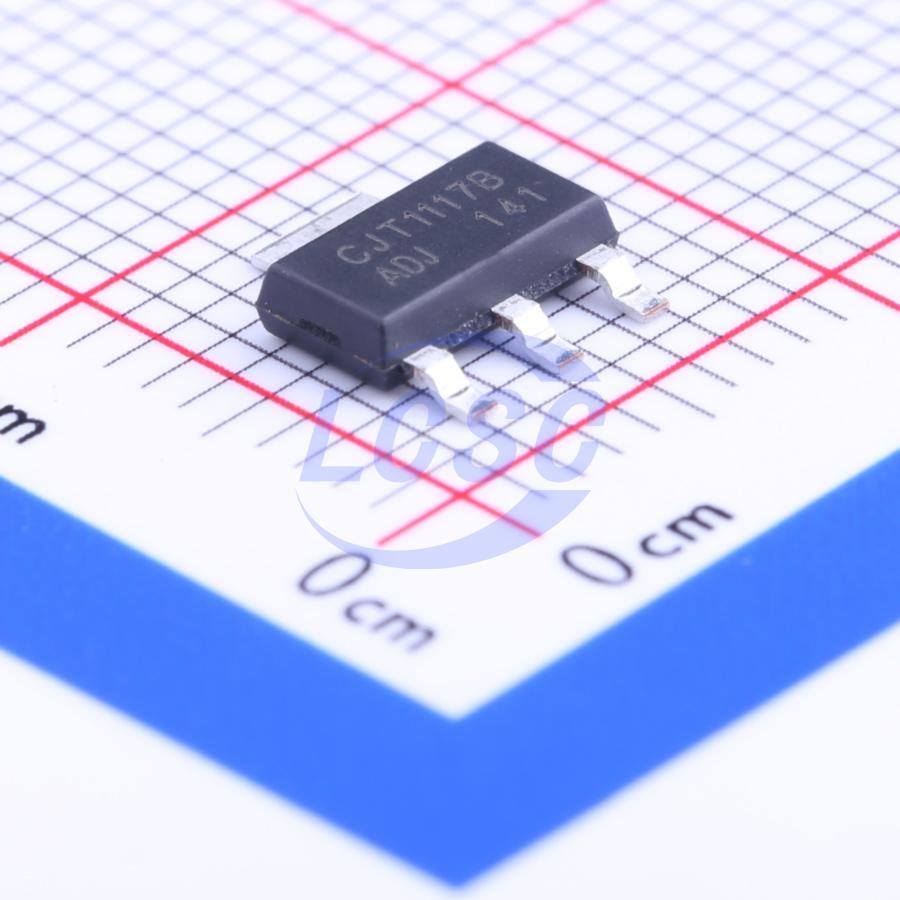

CJT1117B-ADJ
1.25V~5V Positive Adjustable SOT-223 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-223ROHS CompliantActive
ADJ Input 15V Output 1.25V~5V 1A
- Manufacturer
- JSCJ
- Manufacturer part #
- CJT1117B-ADJ
- Store part #
- C67882
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,600 in stock
#C67882
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.29 | ₹92.90 |
| 100+ | ₹7.47 | ₹747.00 |
| 300+ | ₹6.58 | ₹1,974.00 |
| 2,500+ | ₹5.90 | ₹14,750.00 |
| 5,000+ | ₹5.36 | ₹26,800.00 |
| 10,000+ | ₹5.09 | ₹50,900.00 |
10 × ₹9.29
₹92.90
excl. GST
₹109.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJT1117B-ADJ
₹92.90 for 10 + GST
Specifications
- Output Voltage
- 1.25V~5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Tj)
- Supply Current (Iq)
- 10mA
- Output Configuration
- Positive
- Operating Voltage
- 15V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.243 g
Overview
The CJT1117B-XXX is a series of low dropout three-terminal regulators with a dropout of 1.15V(typ.) at 1A output current. The CJT1117B-XXX series provides current limiting and thermal shutdown. Its circuit includes a trimmed bandgap reference to assure output voltage accuracy to be within 1.5%. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal shutdown provides protection against any combination of overload and ambient temperature that would create excessive junction temperature. The CJT1117B-XXX has an adjustable version, that can provide the output voltage from 1.25V to 5V with only 2 external resistors.
Applications
- PC Motherboard
- LCD Monitor
- Graphic Card
- DVD-Video Player
- NIC/Switch
- Telecom Modem
- ADSL Modem
- Printer and Other Peripheral Equipment
Key features
- Low Dropout Voltage: 1.15V(typ.) at 1A Output Current
- Trimmed Current Limit
- On-Chip Thermal Shutdown
- Three-Terminal Adjustable or Fixed 1.25V, 1.8V, 2.5V, 3.3V, 5V Operation
- Junction Temperature: -25°C to 125°C
