JSCJ

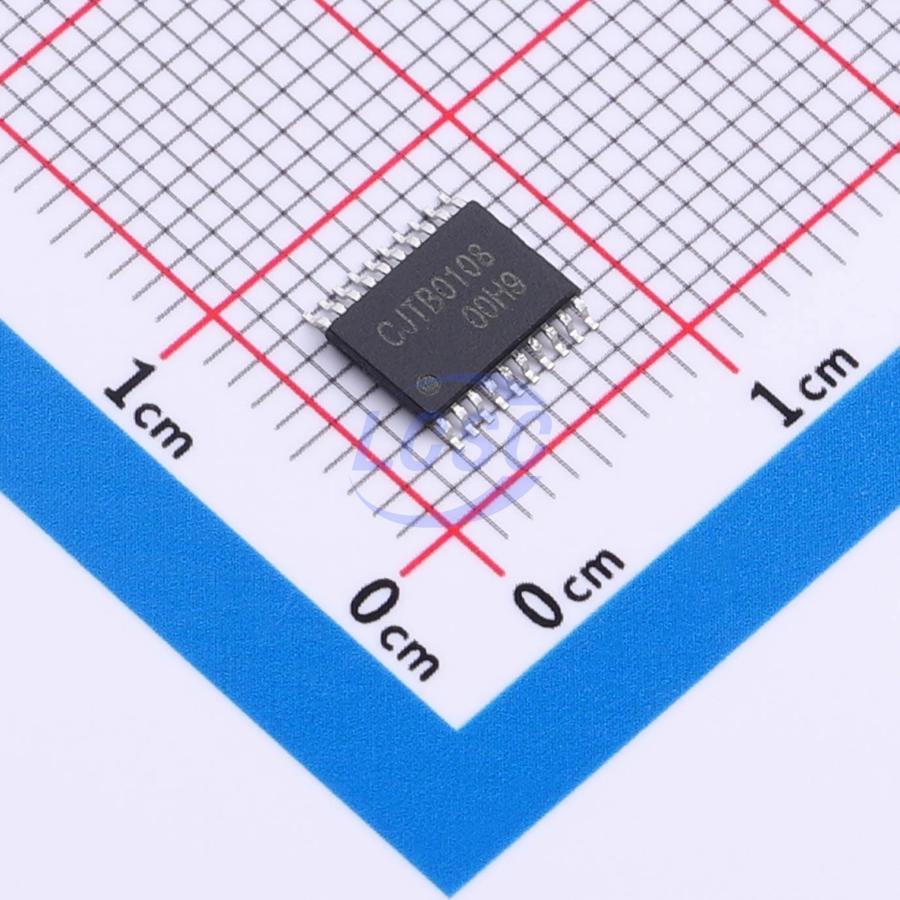

CJTB0108BGN

8 TSSOP-20 Translators, Level Shifters

TSSOP-20RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJTB0108BGN
Store part #: C52145752
Package / case: TSSOP-20
Category: Translators, Level Shifters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,982 in stock

#C52145752

Stock & price checked 30 h ago

Quantity	Unit price	Pack price
1+	₹53.78	₹53.78
10+	₹52.70	₹527.00
30+	₹51.82	₹1,554.60
100+	₹50.96	₹5,096.00

Quantity (min 1)

1 × ₹53.78

₹53.78

excl. GST

₹63.46 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CJTB0108BGN

₹53.78 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

output type: Tri-State
Operating Temperature: -40℃~+125℃
Channel Type: Bidirectional
Features: Automatic direction detection;Output enable high-impedance;Power-off protection
Voltage - Supply: 1.2V~3.6V;1.65V~5.5V
Number of Circuits: 8

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.285 g

Overview

CJTB010X is an 8-bit dual-supply level-translating transceiver with automatic direction sensing, enabling bidirectional voltage level translation. It features two 8-bit I/O ports (An and Bn), an output enable input (OE), and two supply pins (VCC(A) and VCC(B)). VCC(A) supports supply voltages ranging from 1.2V to 3.6V, while VCC(B) supports supply voltages ranging from 1.65V to 5.5V, making the device suitable for level translation between any low-voltage nodes (1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V). Pins An and OE are referenced to VCC(A), and pins Bn are referenced to VCC(B). When the OE pin is driven LOW, the outputs are placed in a high-impedance off state. The device is fully specified for partial-power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging backflow current when the device is powered down.
