JSCJDatasheet (PDF)

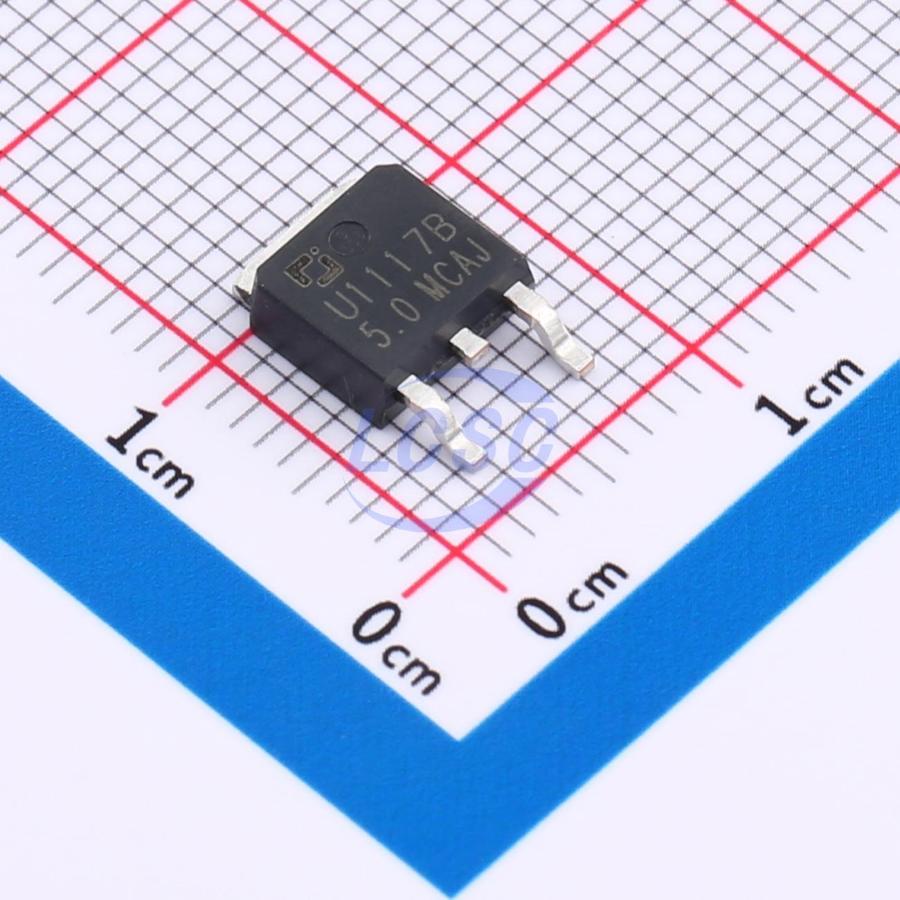

CJU1117B-5.0
5V Positive Fixed TO-252-2L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2LROHS CompliantActive
1A Low Dropout Linear Regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJU1117B-5.0
- Store part #
- C17703060
- Package / case
- TO-252-2L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,610 in stock
#C17703060
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.35 | ₹116.75 |
| 50+ | ₹18.97 | ₹948.50 |
| 150+ | ₹17.09 | ₹2,563.50 |
| 500+ | ₹14.75 | ₹7,375.00 |
| 2,500+ | ₹13.71 | ₹34,275.00 |
| 5,000+ | ₹13.08 | ₹65,400.00 |
5 × ₹23.35
₹116.75
excl. GST
₹137.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJU1117B-5.0
₹116.75 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 5mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 15V
- Output Type
- Fixed
- Features
- Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.479 g
Overview
The CJU1117B-XXX is a series of low dropout three-terminal regulators with a dropout of 1.3V at 1A output current. The CJU1117B-XXX series provides current limiting and thermal shutdown. Its circuit includes a trimmed bandage reference to assure output voltage accuracy to be within 1.5%. Current limit is trimmed to ensure specified output current and controlled short-circuit current. On-chip thermal shutdown provides protection against any combination of overload and ambient temperature that would create excessive junction temperature. The CJU1117B-XXX has an adjustable version, that can provide the output voltage from 1.25V to 12V with only 2 external resistors.
Applications
- PC Motherboard
- LCD Monitor
- Graphic Card
- DVD-Video Player
- NIC/Switch
- Telecom Modem
- ADSL Modem
- Printer and other peripheral Equipment
Key features
- Low Dropout Voltage: 1.3V at 1A Output Current
- Trimmed Current Limit
- On-Chip Thermal Shutdown
- Three-Terminal Adjustable or Fixed 1.8V, 2.5V, 3.3V, 5V Operation
- Junction Temperature: -40 to 125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ7805 3%#C21706JSCJ · TO-252-2(DPAK) | JSCJ | TO-252-2(DPAK) | 75,855 | ₹27.72 · 75,855 in stock | View |
 | CJ7805B-TFN-ARG#C17703096JSCJ · TO-252-2L | JSCJ | TO-252-2L | 1,045 | ₹25.77 · 1,045 in stock | View |
 | CJ78D05#C89272JSCJ · TO-252-2L | JSCJ | TO-252-2L | 90,765 | ₹23.21 · 90,765 in stock | View |
