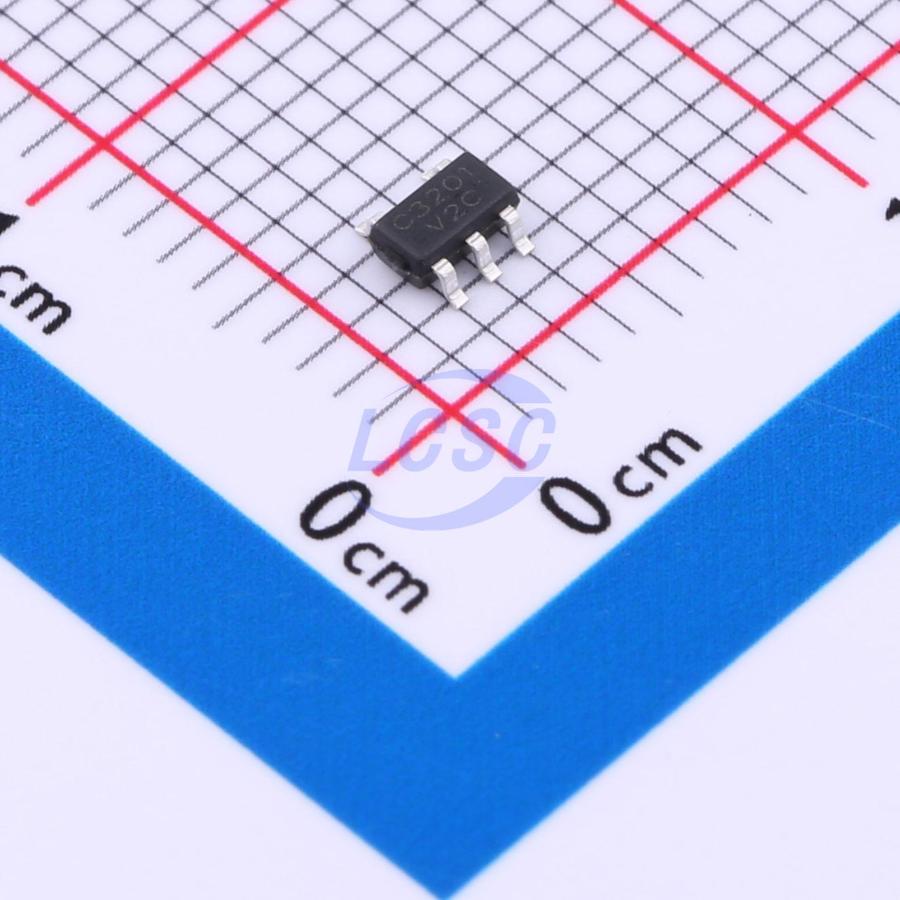

COS3201TR
Rail-to-Rail Input, Rail-to-Rail Output 1mV 1pA 1 SOT-23-5 Linear Comparators RoHS
1.6V to 7V, Low-power Push-Pull Output Comparator
- Manufacturer
- COSINE
- Manufacturer part #
- COS3201TR
- Store part #
- C3035955
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,980 in stock
#C3035955
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.24 | ₹161.20 |
| 50+ | ₹25.31 | ₹1,265.50 |
| 150+ | ₹22.33 | ₹3,349.50 |
| 500+ | ₹18.63 | ₹9,315.00 |
| 3,000+ | ₹16.97 | ₹50,910.00 |
| 6,000+ | ₹16.00 | ₹96,000.00 |
5 × ₹32.24
₹161.20
excl. GST
₹190.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS3201TR
₹161.20 for 5 + GST
Specifications
- Output Type
- Push-pull
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Quiescent Current
- 18uA
- Output Mode
- CMOS
- Propagation Delay Time
- 200ns
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 1pA
- Number of Channels
- 1
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Input Offset Current(Ios)
- 1pA
- Single Supply
- 1.6V~7V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.097 g
Overview
The COS3201 is a single channel low-power comparator which features wide supply voltage range and rail-to-rail push-pull output. Their operating voltage ranges from +1.6V to +7.0V, making them ideal for 1.8, 3.3V and 5V systems. It consumes only 25μA while achieving a 200ns propagation delay. Input bias current is typically 1.0 pA, and input offset voltage is typically 1 mV. The COS3201 has push-pull output stages capable of sinking and sourcing milliamps of current when controlling an LED or driving a capacitive load. The COS3201 is available in tiny 5-pin SOT23-5 and SC70-5 packages.
Applications
- Inspection Equipment
- Threshold Detectors/Discriminators
- Peak and Zero-crossing detectors
- Logic Level Shifting or Translation
- Portable Equipment
- Sensor Conditioning
- High-Speed Sampling Systems
- Battery Powered Electronics
Key features
- Operates on 1.6V ~ 7.0V Supplies
- Low Quiescent Current: 18μA at 1.8V
- Low Propagation Delay: 200 ns
- Low Input Offset Voltage: 1 mV
- Push-Pull Outputs
- Input Common Mode Voltage Range Includes Ground
- Input Bias Current: 1.0 pA Typical
- No Phase Inversion for Overdrive Inputs
- Extended Temperature Ranges From -40°C to +125°C
- Small Packaging: SOT23-5 and SC70-5
