COSINEDatasheet (PDF)

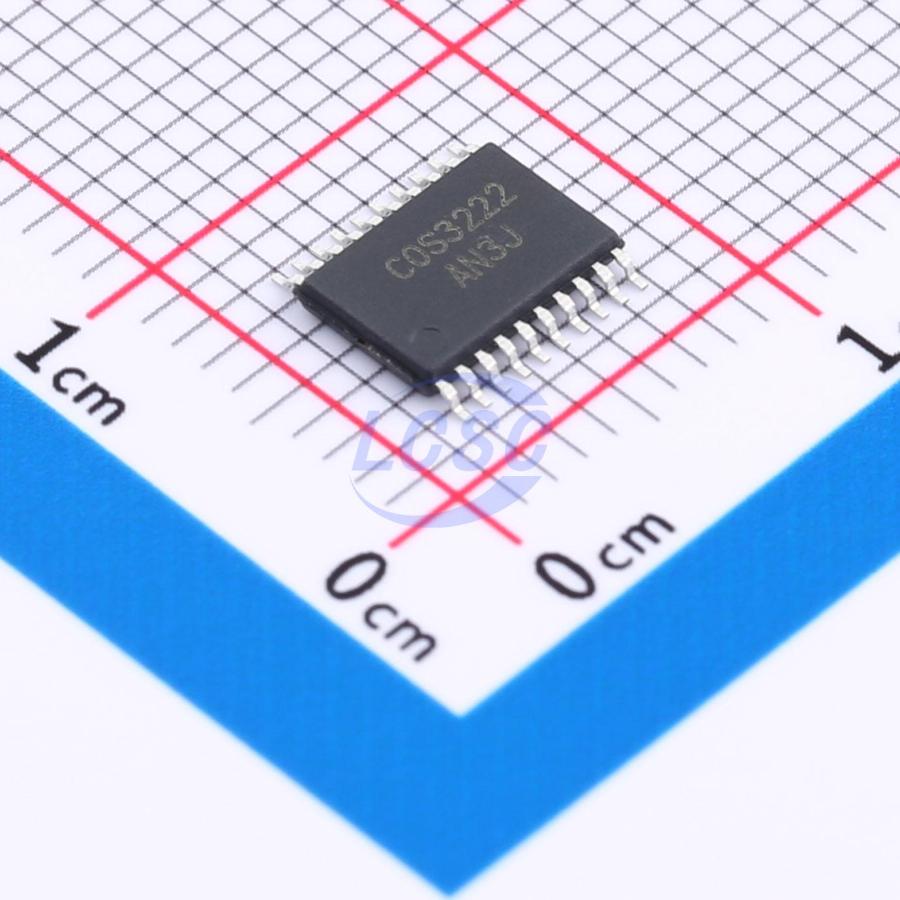

COSMAX3222
Transceiver 3V~5.5V 250Kbps TSSOP-20 Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS CompliantActive
RS-232 Transceivers
- Manufacturer
- COSINE
- Manufacturer part #
- COSMAX3222
- Store part #
- C19078605
- Package / case
- TSSOP-20
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,660 in stock
#C19078605
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.76 | ₹107.76 |
| 10+ | ₹87.38 | ₹873.80 |
| 30+ | ₹77.20 | ₹2,316.00 |
| 100+ | ₹67.00 | ₹6,700.00 |
| 500+ | ₹60.94 | ₹30,470.00 |
| 1,000+ | ₹57.89 | ₹57,890.00 |
1 × ₹107.76
₹107.76
excl. GST
₹127.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
COSMAX3222
₹107.76 for 1 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 0.4mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.093 g
Overview
The COSMAX3232 and COSMAX3222 family consists of two-line drivers, two-line receivers, and a dual charge-pump circuit. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- Hand-Held Equipment
- Laptops
- Notebooks
Key features
- Meets EIA/TIA-232-F standards
- Operates With 3-V to 5.5-V VCC Supply Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- 1μA low power shutdown with receivers active (COSMAX3222)
