COSINEDatasheet (PDF)

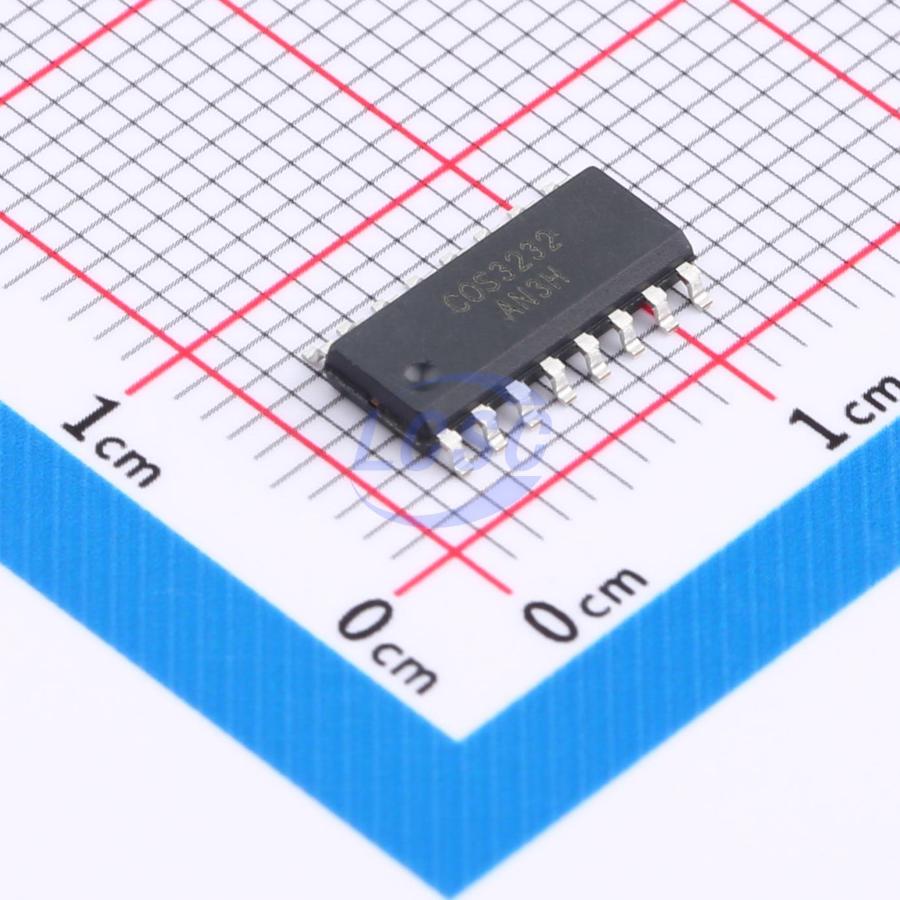

COSMAX3232ID
3V~5.5V Transceiver 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
RS-232 Transceivers
- Manufacturer
- COSINE
- Manufacturer part #
- COSMAX3232ID
- Store part #
- C18198088
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,085 in stock
#C18198088
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.44 | ₹202.20 |
| 50+ | ₹31.71 | ₹1,585.50 |
| 150+ | ₹27.95 | ₹4,192.50 |
| 500+ | ₹23.28 | ₹11,640.00 |
| 2,500+ | ₹21.21 | ₹53,025.00 |
| 5,000+ | ₹19.95 | ₹99,750.00 |
5 × ₹40.44
₹202.20
excl. GST
₹238.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
COSMAX3232ID
₹202.20 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 250Kbps
- Operating Temperature
- -40℃~+85℃
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.367 g
Overview
The COSMAX3232 and COSMAX3222 family consists of two-line drivers, two-line receivers, and a dual charge-pump circuit. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/μs driver output slew rate.
Applications
- Battery-Powered Systems
- Hand-Held Equipment
- Laptops
- Notebooks
Key features
- Meets EIA/TIA-232-F standards
- Operates With 3-V to 5.5-V VCC Supply Operates up to 250 kbit/s
- Two Drivers and Two Receivers
- Low Supply Current External Capacitors: 4×0.1 μF
- Accepts 5-V Logic Input With 3.3-V Supply
- 1μA low power shutdown with receivers active (COSMAX3222)
