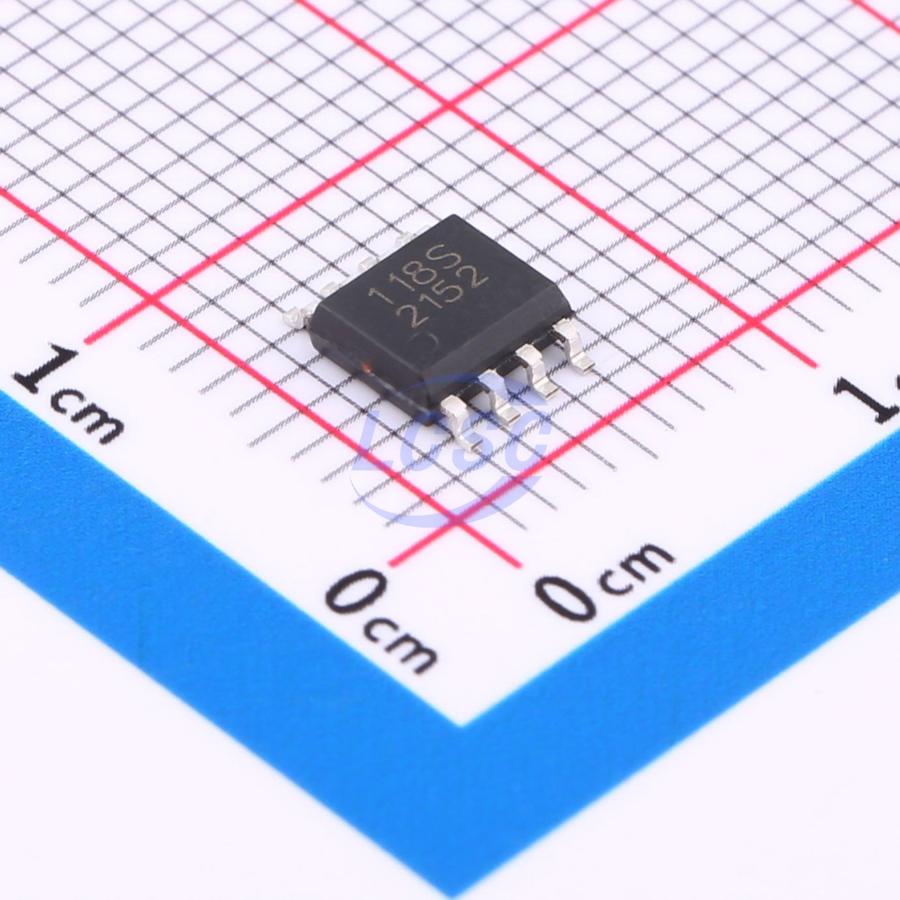

CP118SDTR(XBLW)
2.2V~7.5V SOP-8 Motor Drivers, Controllers RoHS
1.6A DC motor driver
- Manufacturer
- XBLW
- Manufacturer part #
- CP118SDTR(XBLW)
- Store part #
- C18723578
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C18723578
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.63 | ₹86.30 |
| 100+ | ₹6.80 | ₹680.00 |
| 300+ | ₹5.89 | ₹1,767.00 |
| 3,000+ | ₹5.21 | ₹15,630.00 |
| 6,000+ | ₹4.66 | ₹27,960.00 |
| 9,000+ | ₹4.39 | ₹39,510.00 |
10 × ₹8.63
₹86.30
excl. GST
₹101.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CP118SDTR(XBLW)
₹86.30 for 10 + GST
Specifications
- Features
- Motor stall protection;Active braking function
- Technology
- Yes
- Voltage - Supply
- 2.2V~7.5V
- Operating Temperature
- -20℃~+85℃
- Supply Current (Iq)
- 0uA
- Output Current
- 1.6A
- Peak Current
- 3A
- RDS(on)
- 450mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.195 g
Overview
CP118S is a single-channel toy DC motor driver IC designed for low-voltage systems. It integrates an H-bridge driver using PMOS and NMOS power transistors with low output resistance. The low on-resistance minimizes power dissipation during continuous high-current operation, ensuring stable long-term performance. The IC features built-in thermal protection: when the load motor stalls or an output short circuit causes a sudden surge in current, resulting in a rapid rise in power dissipation and junction temperature, if the temperature exceeds the threshold set by the internal protection circuit (typical value 150°C), the internal circuitry will shut down the power switches to cut off the load current, preventing safety hazards caused by overheating. A built-in thermal hysteresis circuit ensures that control is only permitted to resume after the chip temperature has recovered to a safe range.
Applications
- Advanced robotics motor drive
- Consumer electronics motor drive
- Industrial motor drive
- Electronic toy robots
- Toy motor drive for 2-4 cell battery-powered applications
Key features
- Built-in H-bridge driver with PMOS/NMOS power switches
- Supports four motor control modes: forward, reverse, stop, and brake
- Low standby current
- Wide operating voltage range (2.0V–7.5V)
- Low output impedance, capable of continuous output 1.6A (VDD=6V, T=25°C) and peak output 3.0A (VDD=6V, T=25°C)
- Built-in thermal protection
- ESD rating: 2KV (Human Body Model)
- SOP8 package
