CS3817BEO

CS3817BEO is a 15W (per channel) stereo high-efficiency Class D audio power amplifier. Advanced EMI suppression technology allows inexpensive ferrite bead filters at the output port to meet EMC requirements. An internal DC detection circuit provides speaker protection by shutting down the output stage when input capacitor failure or input short circuit is detected. The CS3817BEO can drive stereo speakers with loads as low as 4Ω, achieving up to 90% efficiency, eliminating the need for additional heatsinks during music playback. The CS3817BEO is suitable for LCD TVs and consumer audio equipment.

Applications

• LCD TVs
• Consumer audio equipment

Key features

• 15W/channel output power (16V supply, 8Ω load, THD+N = 10%)
• 10W/channel output power (13V supply, 8Ω load, THD+N = 10%)
• 30W output power (16V supply, 4Ω mono load, THD+N = 10%)
• Up to 90% efficiency, no heatsink required
• Wide supply voltage range: 8.5V~20V
• Filter-free operation, no output inductor required
• Output pins optimized for easy PCB routing
• Robust short-circuit protection and auto-recovery thermal protection
• Low distortion and pop-free performance
• Built-in 26dB gain
• Differential inputs
• Mute and standby functions
• Simple peripheral design

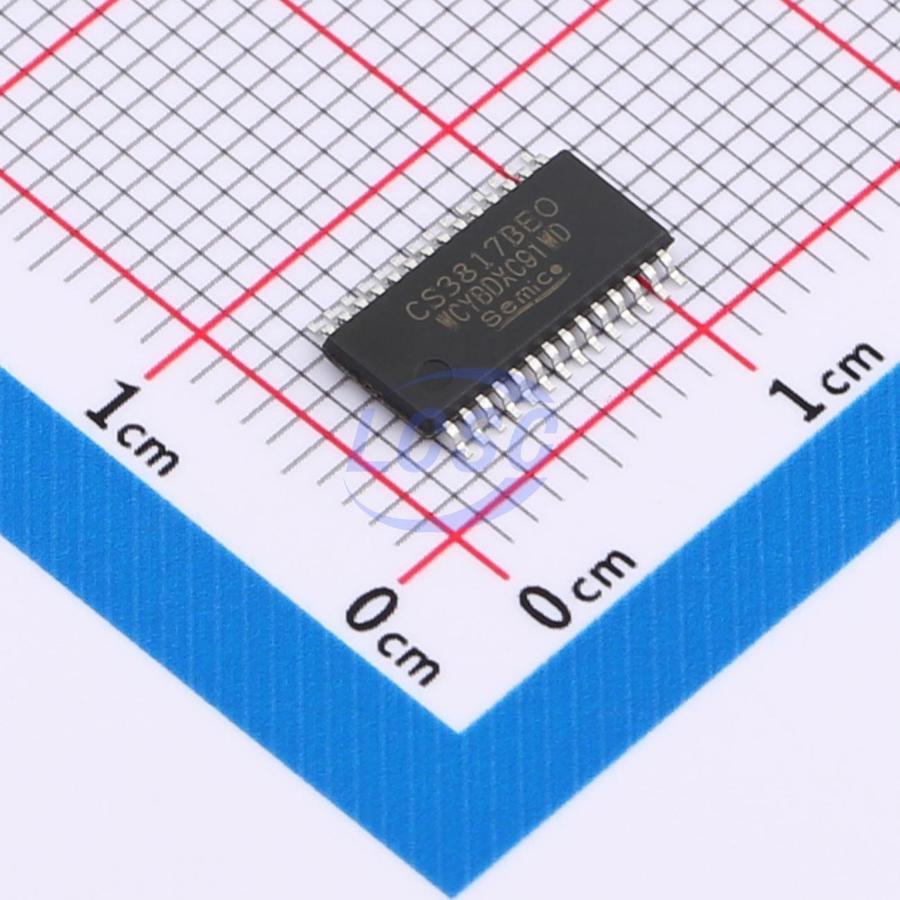

• Package: HTSSOP28
