Chipanalog

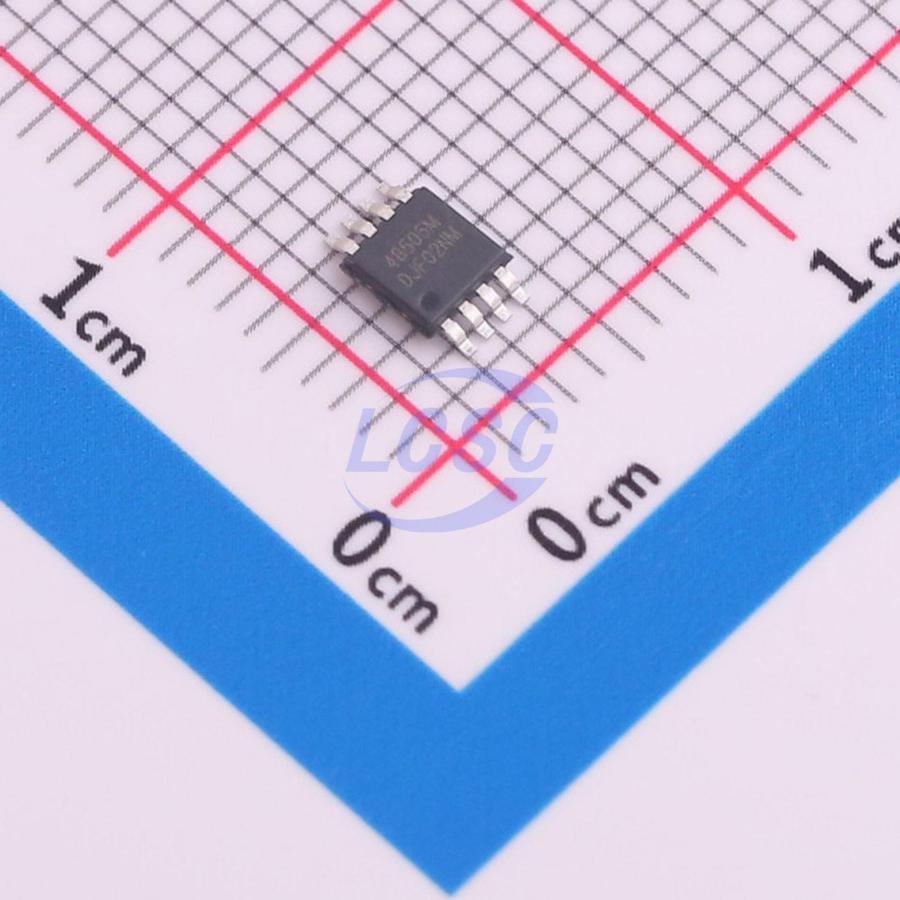

CS48505M

3V~5.5V Transceiver 500Kbps 50 MSOP-8 Drivers, Receivers, Transceivers

MSOP-8RoHSActive

Manufacturer: Chipanalog
Manufacturer part #: CS48505M
Store part #: C7422537
Package / case: MSOP-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,705 in stock

#C7422537

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.79	₹133.95
50+	₹20.92	₹1,046.00
150+	₹17.65	₹2,647.50
500+	₹15.69	₹7,845.00
2,500+	₹13.98	₹34,950.00
5,000+	₹13.07	₹65,350.00

Quantity (min 5, multiples of 5)

5 × ₹26.79

₹133.95

excl. GST

₹158.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

CS48505M

₹133.95 for 5 + GST

Specifications

Voltage - Supply: 3V~5.5V
Type: Transceiver
Data Rate: 500Kbps
Operating Temperature: -40℃~+125℃
Number of Nodes: 50
ESD Protect: ±20kV
Communication Mode: Half-Duplex
Number of Drivers: 1
Features: Tx/Rx enable;Enable shutdown;Overcurrent Protection;Thermal shutdown protection
Number of Receivers: 1
Quiescent Supply Current: 950uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.159 g

Overview

The CS485xx family of devices are low-power half-duplex transceivers for RS-485/RS-422 communications in harsh environments. All devices feature ±20kV electro-static discharge (ESD) protection for the bus pins (A and B), eliminating the need for additional system level protection components. The CS485xx family of devices contain one driver (TX) and one receiver (RX), operates over the +3V to +5.5V supply range, making these devices convenient for designers to use one part with either +3.3V or +5V supply systems. The CS48520x devices can transmit and receive at data rates up to 20Mbps, while the CS48505x devices are specified for data rates up to 500kbps. These devices also include fail-safe circuitry, guaranteeing a logic-high receiver output when the receiver inputs are shorted or open. All devices are specified over the -40°C to +125°C wide operating temperature range and are available in small 8-pin MSOP, 8-pin DFN packages for space constrained applications and 8-pin SOIC for drop-in compatibility design.

Applications

Factory Automation & Control
Grid Infrastructure
Home and Building Automation
Video Surveillance
Smart Meters
Process Control
Telecommunication Equipment

Key features

High-Performance and Compliant with RS-485 EIA/TIA-485 Standard
Low EMI 500kbps Data Rate (CS48505x) and up to 20Mbps (CS48520x) High-Speed Data Rate
50 Nodes on the Same Bus
7V to +12V Common-Mode Voltage Range
±20kV Human Body Model ESD Protection and ±4kV Contact Discharge IEC 61000-4-2 ESD Protection on A/B pins
1/2 Unit Load Enables up to 64 Nodes on the Same Bus
Short-Circuit Protection
Thermal Shutdown
True Fail-Safe Guarantees Known Receiver Output State
Glitch-free during Power on/Power off
Output Level is Compatible with Profibus Standard
|VOD| > 2.1V@5V Supply Voltage
Low Power
Low Supply Current (0.95mA, typ.)
Shutdown Current < 5μA
3V to 5.5V Supply Voltage Range
Wide Operating Temperature Range: -40°C to 125°C
8 pin SOIC, 8 pin MSOP and 8 pin DFN Packages
