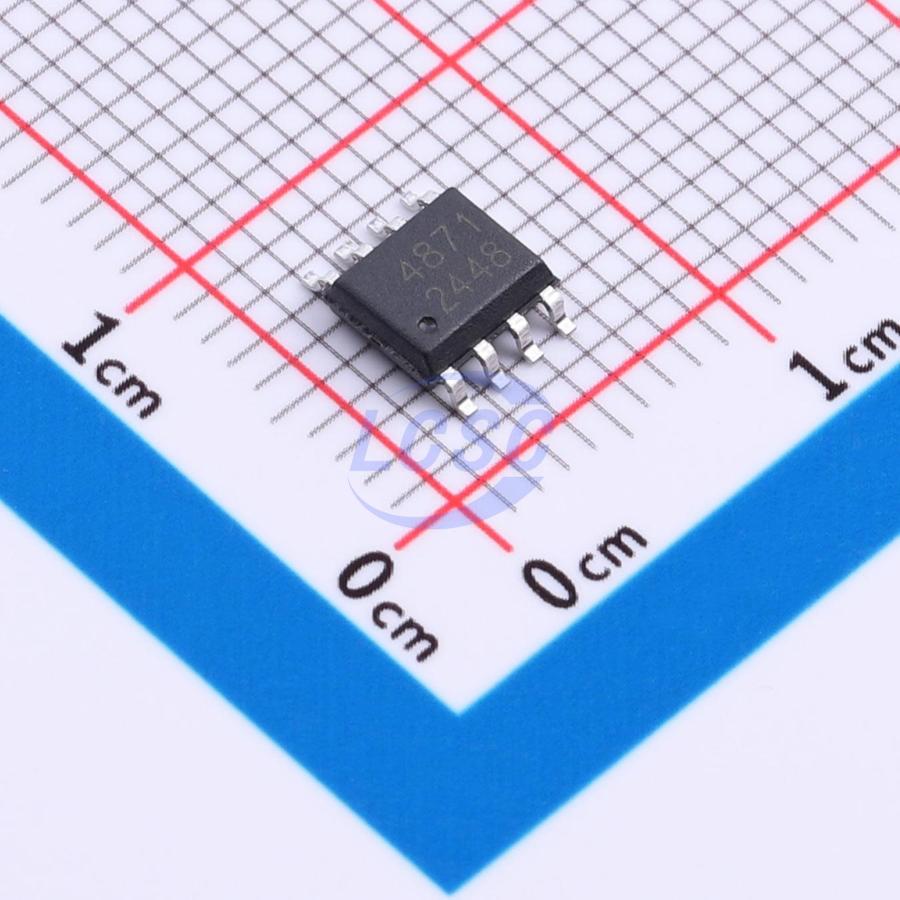

CS4871SA8.TR
2V~5V 6.5mA 1-Channel Class AB SOP-8 Audio Amplifiers
- Manufacturer
- Wuxi I-core Elec
- Manufacturer part #
- CS4871SA8.TR
- Store part #
- C52260211
- Package / case
- SOP-8
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,990 in stock
#C52260211
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.03 | ₹110.15 |
| 50+ | ₹17.37 | ₹868.50 |
| 150+ | ₹15.37 | ₹2,305.50 |
| 500+ | ₹12.87 | ₹6,435.00 |
| 2,500+ | ₹11.76 | ₹29,400.00 |
| 4,000+ | ₹11.10 | ₹44,400.00 |
5 × ₹22.03
₹110.15
excl. GST
₹129.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CS4871SA8.TR
₹110.15 for 5 + GST
Specifications
- Voltage - Supply
- 2V~5V
- Quiescent Current
- 6.5mA
- Total Harmonic Distortion + Noise (THD+N)
- 0.13%
- Features
- Enable/shutdown function
- Operating Temperature
- -40℃~+85℃
- Number of Inputs
- 1 Pair Differential Inputs
- Speaker Channels
- 1-Channel
- Output Power
- 3Wx1@3Ω;2.5Wx1@4Ω;1.5Wx1@8Ω
- Class
- Class AB
- Power Supply Rejection Ratio (PSRR)
- 60dB
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
The CS4871 is a mono bridge audio power amplifier capable of delivering 3W continuous average power into a 3Ω load at 5V supply voltage with less than 10% THD. The device features a shutdown mode with a typical quiescent current IQ of 0.6μA. It operates over a supply voltage range of 2.0V to 5.0V, requiring no external output coupling capacitors, bootstrap capacitors, or output impedance matching networks, and integrates thermal shutdown protection. The amplifier is unity-gain stable, with gain set by external components.
Applications
- Bluetooth speakers
- Portable computers
- Radio systems
Key features
- No output coupling capacitor, bootstrap capacitor, or output impedance matching network required
- Unity-gain stable; gain externally configurable
- Pin-compatible with LM4861 and LM4871
- Available in DIP8, SOP8, MSOP8, and ESOP8 packages
