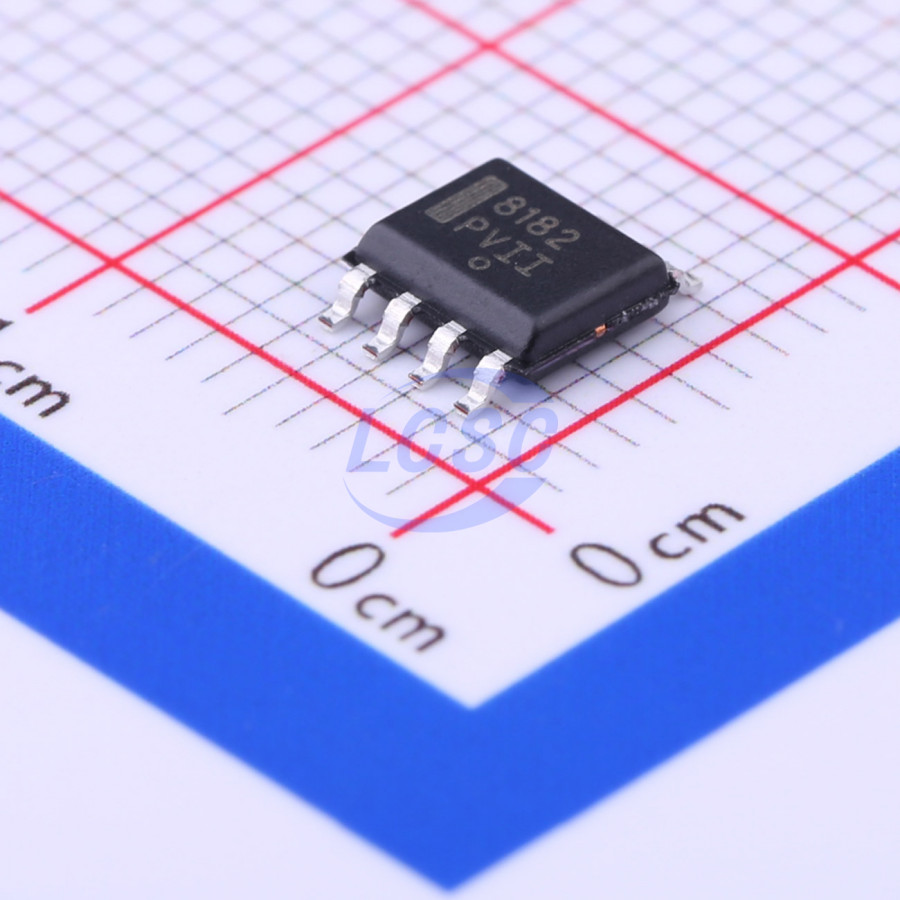

CS8182YDFR8G

The CS8182 is a monolithic integrated low dropout tracking regulator designed to provides an adjustable buffered output voltage that closely tracks (±10mV) the reference input. The output delivers up to 200 mA while being able to be configured higher, lower or equal to the reference voltages. The device has been designed to operate over a wide range (2.8 V to 45 V) while still maintaining excellent DC characteristics. The CS8182 is protected from reverse battery, short circuit and thermal runaway conditions. The device also can withstand 45 V load dump transients and -50 V reverse polarity input voltage transients. This makes it suitable for use in automotive environments. The VREF/ENABLE lead serves two purposes. It is used to provide the input voltage as a reference for the output and it also can be pulled low to place the device in sleep mode where it nominally draws 30 μA from the supply.

Key features

• 200 mA Source Capability
• Output Tracks within ±10 mV Worst Case
• Low Dropout (3.35 V Typ. @ 200 mA)
• Low Quiescent Current
• Thermal Shutdown
• Short Circuit Protection
• Wide Operating Range
• Internally Fused Leads in SO−8 Package
• For Automotive and Other Applications Requiring Site and Change Control These are Pb−Free Devices
