TokmasDatasheet (PDF)

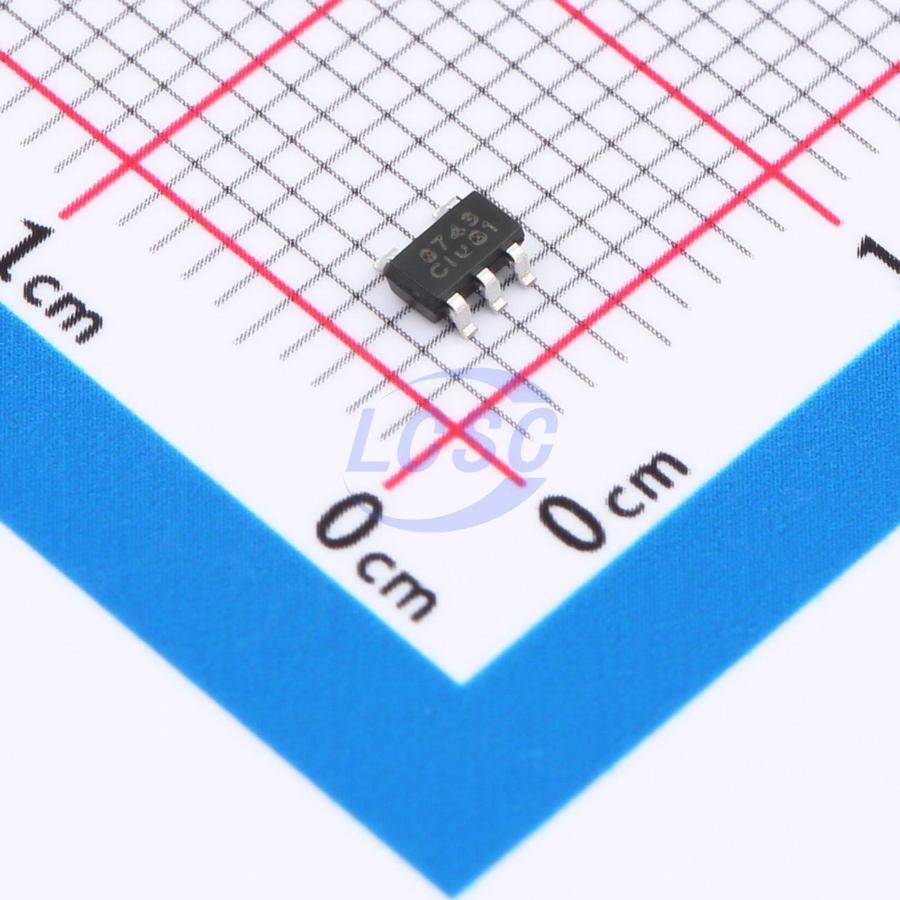

CSGM8743
Rail-to-Rail Input, Rail-to-Rail Output 400uV 6pA SOT-23-5 Linear Comparators RoHS
SOT-23-5ROHS CompliantActive
Low-power, rail-to-rail input, single-supply comparator
- Manufacturer
- Tokmas
- Manufacturer part #
- CSGM8743
- Store part #
- C46491529
- Package / case
- SOT-23-5
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,068 in stock
#C46491529
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.90 | ₹39.90 |
| 10+ | ₹34.50 | ₹345.00 |
| 30+ | ₹32.14 | ₹964.20 |
| 100+ | ₹29.33 | ₹2,933.00 |
| 500+ | ₹28.03 | ₹14,015.00 |
| 1,000+ | ₹27.17 | ₹27,170.00 |
1 × ₹39.90
₹39.90
excl. GST
₹47.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CSGM8743
₹39.90 for 1 + GST
Specifications
- Features
- Built-in hysteresis
- Input Hysteresis Voltage (Vhys)
- 3mV
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Common Mode Rejection Ratio(CMRR)
- 77dB
- Vos - Input Offset Voltage
- 400uV
- Ib - Input Bias Current
- 6pA
- Quiescent Current
- 1.3mA
- Output Mode
- CMOS;TTL
- Propagation Delay Time
- 6ns
- Input Offset Current(Ios)
- 4pA
- Operating Temperature
- -40℃~+85℃
- Response Time (tr)
- 3.6ns
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
Applications
- High-speed or digital line receivers
- High-speed sampling circuits
- Peak and zero-crossing detectors
- Logic level translation
- Clock and data signal recovery
Key features
- Ultra-fast propagation delay: 6ns
- Low power consumption: typical 1.3mA
- Single-supply operating range: +2.7V ~ +5.5V
- Low offset voltage: 5mV maximum
- Rail-to-rail input and output
- CMOS/TTL compatible output
- Built-in hysteresis for clean switching
- No phase reversal with input overdrive
- Operating temperature range: -40℃ ~ +85℃
