HXY MOSFETDatasheet (PDF)

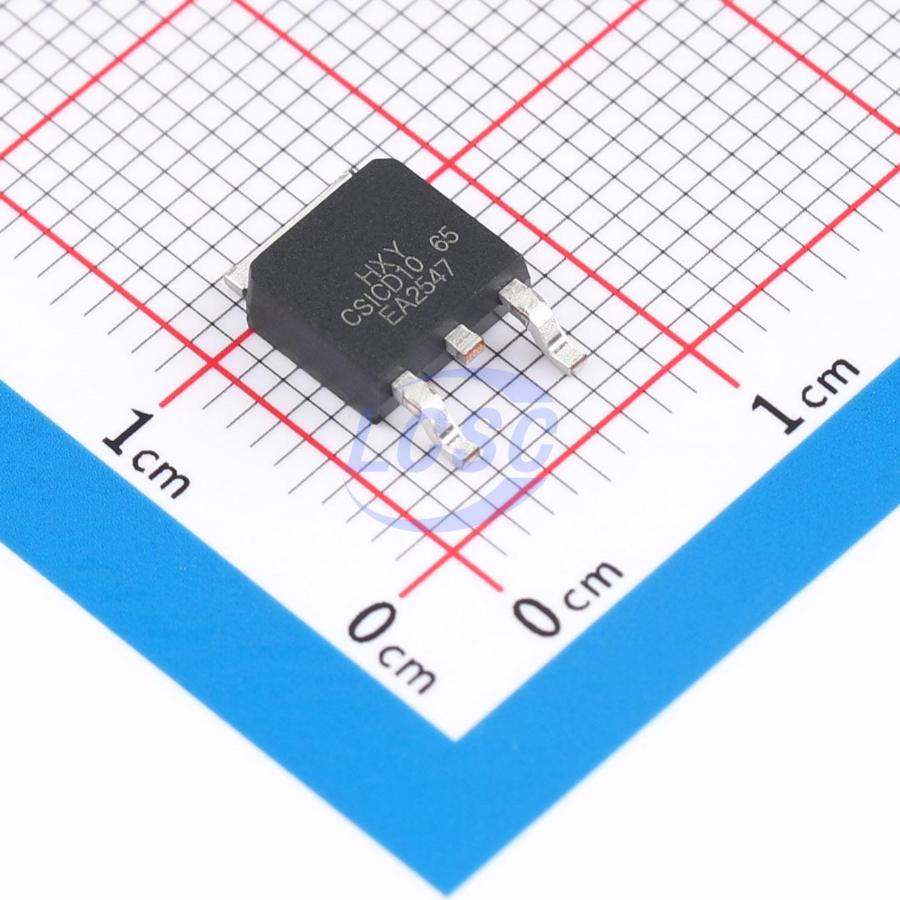

CSICD10-650 TR13-HXY
1 Independent 650V 1.3V@10A 30A TO-252-2L Single Diodes
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- CSICD10-650 TR13-HXY
- Store part #
- C53468120
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C53468120
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹327.44 | ₹327.44 |
| 10+ | ₹278.37 | ₹2,783.70 |
| 30+ | ₹247.72 | ₹7,431.60 |
| 100+ | ₹216.22 | ₹21,622.00 |
| 500+ | ₹202.08 | ₹1,01,040.00 |
| 1,000+ | ₹195.87 | ₹1,95,870.00 |
1 × ₹327.44
₹327.44
excl. GST
₹386.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSICD10-650 TR13-HXY
₹327.44 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.3V@10A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.483 g
Overview
This product series delivers state-of-the-art performance. It is designed for high-frequency applications requiring high efficiency and reliability.
Applications
- Uninterruptible Power Supply (UPS)
- Power Inverters
- High-Performance Switched-Mode Power Supplies (SMPS)
- Power Factor Correction
Key features
- Low conduction loss due to low forward voltage (VF)
- Extremely low switching loss due to minimal charge (QC)
- High durability due to improved surge current capability
- Industrial-standard quality and reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HC3D10065E#C22449557HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 6 | ₹337.78 · 6 in stock | View |
 | DSC10065D1-HXY#C53468124HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹485.58 · 50 in stock | View |
 | PSC1065HJ-HXY#C53468132HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 49 | ₹317.59 · 49 in stock | View |
 | PSC1065H-QJ-HXY#C53468134HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 40 | ₹404.59 · 40 in stock | View |
 | S3D10065E-HXY#C51896241HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹159.57 · 48 in stock | View |
