HXY MOSFETDatasheet (PDF)

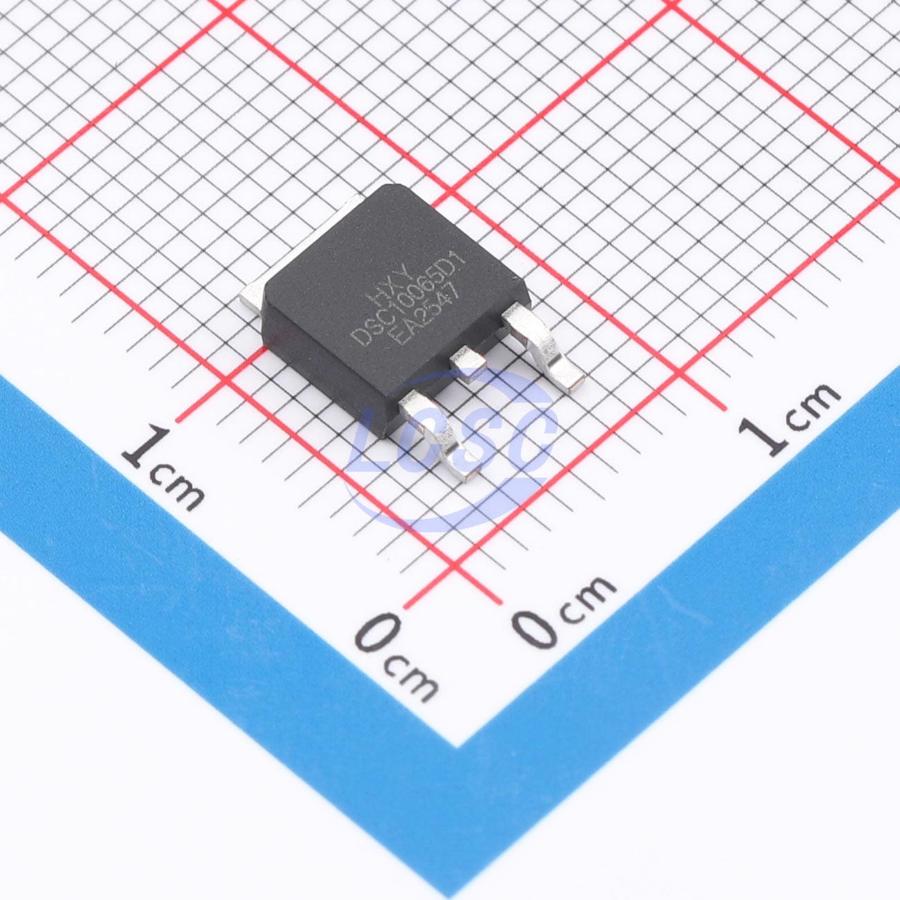

DSC10065D1-HXY
1 Independent 650V 1.3V@10A 30A TO-252-2L Single Diodes
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DSC10065D1-HXY
- Store part #
- C53468124
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C53468124
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹485.58 | ₹485.58 |
| 10+ | ₹416.59 | ₹4,165.90 |
| 30+ | ₹375.65 | ₹11,269.50 |
| 100+ | ₹334.30 | ₹33,430.00 |
| 500+ | ₹315.23 | ₹1,57,615.00 |
| 1,000+ | ₹306.43 | ₹3,06,430.00 |
1 × ₹485.58
₹485.58
excl. GST
₹572.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DSC10065D1-HXY
₹485.58 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.3V@10A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.392 g
Overview
This product series delivers state-of-the-art performance. It is designed for high-frequency applications requiring high efficiency and reliability.
Applications
- Uninterruptible Power Supply (UPS)
- Power Inverters
- High-Performance Switched-Mode Power Supplies (SMPS)
- Power Factor Correction
Key features
- Low conduction loss due to low forward voltage (VF)
- Extremely low switching loss due to minimal charge (QC)
- High durability due to improved surge current capability
- Industrial-standard quality and reliability
