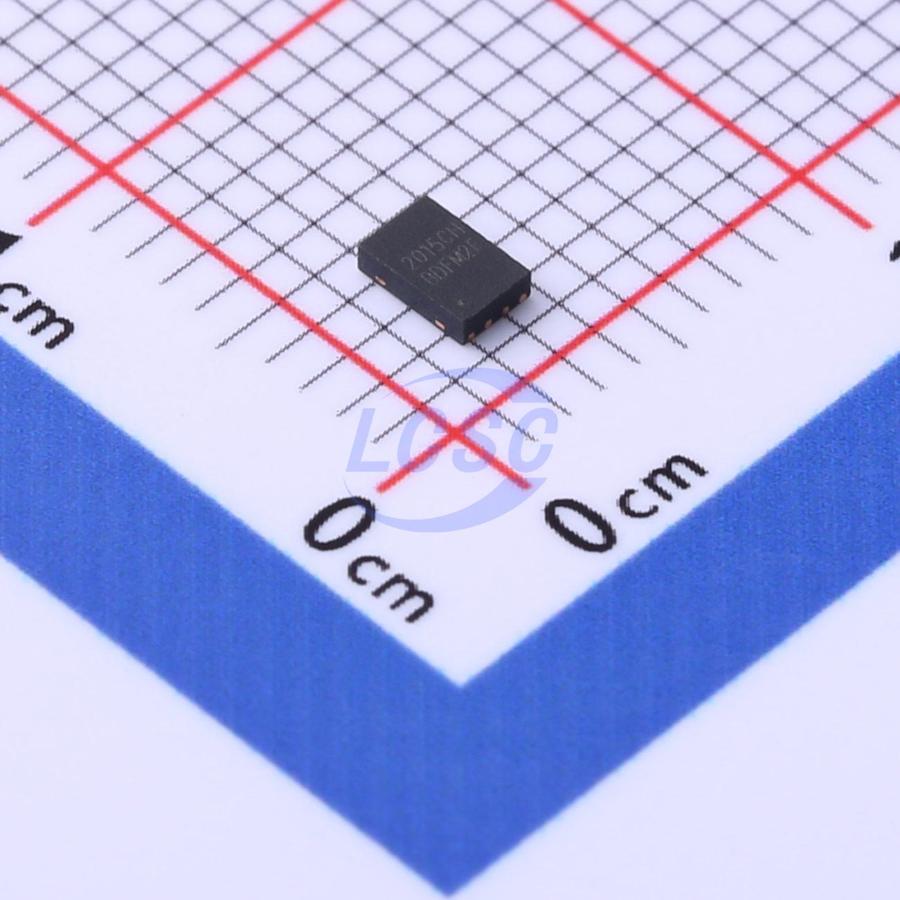

CW2015CHBD
I2C Lithium Battery TDFN-8-EP(2x3) Battery Management
Low-Cost Fuel Gauge IC with Low-SOC Alert
- Manufacturer
- Cellwise
- Manufacturer part #
- CW2015CHBD
- Store part #
- C881838
- Package / case
- TDFN-8-EP(2x3)
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,103 in stock
#C881838
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.18 | ₹105.18 |
| 10+ | ₹86.48 | ₹864.80 |
| 30+ | ₹77.14 | ₹2,314.20 |
| 100+ | ₹67.80 | ₹6,780.00 |
| 500+ | ₹62.37 | ₹31,185.00 |
| 1,000+ | ₹59.55 | ₹59,550.00 |
| 3,000+ | ₹58.90 | ₹1,76,700.00 |
| 6,000+ | ₹58.46 | ₹3,50,760.00 |
1 × ₹105.18
₹105.18
excl. GST
₹124.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CW2015CHBD
₹105.18 for 1 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Interface
- I2C
- Quiescent Current
- 500nA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 2.5V~4.5V
- The Chip Type
- Monitoring IC
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The CW2015 is an ultra-compact, low-cost, hostside/pack-side, sensing resistor free, fuel gauging system IC for Lithium-ion (Li+) based batteries in handheld and portable devices. CW2015 tracks Li+ battery’s operational condition and uses state-of-art algorithm to report the relative State-of-Charge (SOC) of very different battery chemistry systems (LiCoOx, polymer Li-ion, LiMnOx etc.). CW2015 includes a 14-bit Sigma-Delta ADC, a precision voltage reference and build-in accurate temperature sensor. The IC allows the end-user to eliminate the expensive sensing resistor which occupies large board area. And the IC also sends out the alarm signal if the battery SOC level reaches pre-programmed threshold. Quick start function offers the possibility to make an initial estimation of the battery’s SOC, which also enables the IC to be located on system side or pack side, giving the flexibility to system maker on pack selection. CW2015 uses a 2-wire I2C compatible serial interface that operates in standard (100 kHz) or fast (400 kHz) mode.
Applications
- Smartphone
- Tablet PCs
- Handheld and Portable Applications
Key features
- System-Side or Pack-Side Fuel Gauging
- 3% Maximum Total SOC Measurement Error
- 14-bit Sigma-Delta ADC for Temperature and Cell Voltage Measurement
- Precision Voltage Measurement
- No Offset Accumulation During Life Time
- No Full-to-Empty Battery Learning Cycles Necessary
- No Sense Resistor Required
- SOC and RRT available
- External Alarm/Interrupt for Low-Battery Warning Available
- Patented “FastCali” gas gauging algorithm
- Calibration After Quick Soft-Reset
- Very Low Active and Sleep Power Consumption
- Normal mode 15μA
- Sleep mode < 1μA
- General I²C interface
- Tiny, Lead(Pb)-Free, TDFN Package
