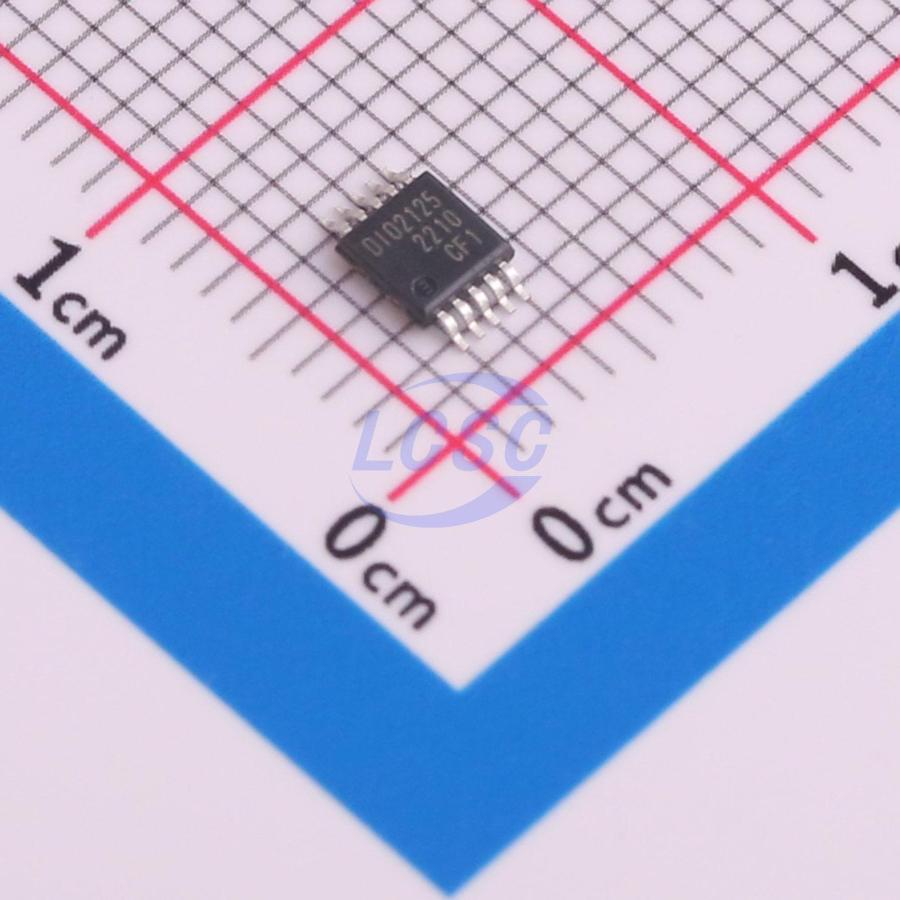

DIO2125XM10
4.75V~5.25V 14mA MSOP-10-EP Audio Amplifiers RoHS
3Vrms Audio Driver with Adjustable Gain
- Manufacturer
- DIOO
- Manufacturer part #
- DIO2125XM10
- Store part #
- C2920630
- Package / case
- MSOP-10-EP
- Category
- Audio Amplifiers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,460 in stock
#C2920630
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.50 | ₹122.50 |
| 50+ | ₹19.65 | ₹982.50 |
| 150+ | ₹17.56 | ₹2,634.00 |
| 500+ | ₹14.95 | ₹7,475.00 |
| 3,000+ | ₹12.57 | ₹37,710.00 |
| 6,000+ | ₹11.88 | ₹71,280.00 |
5 × ₹24.50
₹122.50
excl. GST
₹144.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO2125XM10
₹122.50 for 5 + GST
Specifications
- Voltage - Supply
- 4.75V~5.25V
- Quiescent Current
- 14mA
- Features
- Automatic mute/no-noise switch;ESD protection;Enable/shutdown function
- Total Harmonic Distortion + Noise (THD+N)
- 0.001%
- Operating Temperature
- -40℃~+85℃
- Signal-to-Noise Ratio
- 108dB
- Power Supply Rejection Ratio (PSRR)
- 85dB
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.171 g
Overview
The DlO2125 is an integrated solution for Set- top box and high definition player, and designed to optimize the audio driver circuit performance while reducing the BOM cost by eliminating the peripheral discrete components for noise reduction. DIO2125 is able to deliver up to 3Vrms audio output with no need of output AC- coupling capacitors. The DlO2125 is able to offer 3Vrms output with 2.5kΩ load under 5V supply. Meanwhile, the DlO2125 offers built- in shut- down control circuitry for maximum noise reduction under power- up or power- down conditions.
Applications
- Set-Top Boxes
- High Definition DVD Players
- Car Entertainment System
- Medical
- Flat Panel TV
Key features
- Voltage Output at 2.5kΩ Load: 3Vrms With 5V Supply Voltage
- Ultra Low Distortion: SNR>109dB Typical Vn<7µVrms THD+N<0.001%
- No Pop/Clicks Noise when Power ON/OFF
- No Need for Output DC-Blocking Capacitors
- Optimized Frequency Response between 20Hz-20kHz
- Featuring external under voltage mute
- Output Pin HBM ESD protection 8kV
- Package available in EP-MSOP-10 with exposed Pad
