DK045GJF

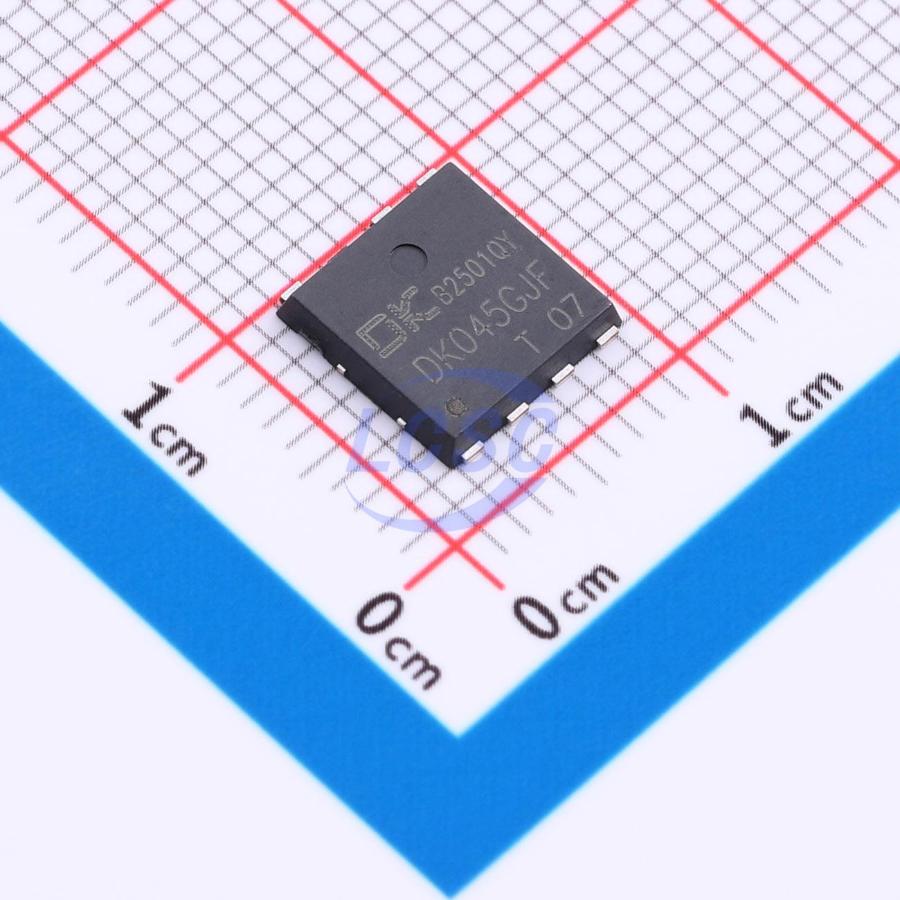

DK045GJF is a highly integrated quasi-resonant flyback AC-DC power switch IC featuring a 700V/330mΩ GaN HEMT. It detects the power transistor drain voltage V_D,Λ and turns on the power transistor when V_D reaches its minimum value, thereby reducing switching losses and improving EMI. This IC greatly simplifies the design and manufacturing of flyback AC-DC converters, making it particularly suitable for applications requiring high conversion efficiency and high power density. The DK045GJF incorporates comprehensive protection features, including output OVP, VCC over/under-voltage protection, OTP, open-loop protection, and output OCP. This series is available in a PDFN8×8 package.

Applications

• High power density fast chargers and adapters
• Laptop adapters
• Tablet adapters
• Set-top box adapters
• Auxiliary and standby power supplies

Key features

• High-voltage adaptive function: suitable for X-capacitor discharge before the bridge, or connected to SW for startup (Note: DK0xxG can be connected before or after the bridge; post-bridge connection supports VBUS only, which differs from this SW startup solution)
• Maximum switching frequency up to 200kHz
• Standby power consumption below 50mW
• Quasi-Resonant (QR) operation mode
• Built-in algorithm-optimized valley detection and valley lockout circuits
• Built-in demagnetization detection circuit
• Built-in frequency jittering circuit for effective EMI improvement
• Built-in high/low voltage input power compensation circuit, ensuring consistent maximum output power across input voltage range
• Halogen-free and RoHS compliant
