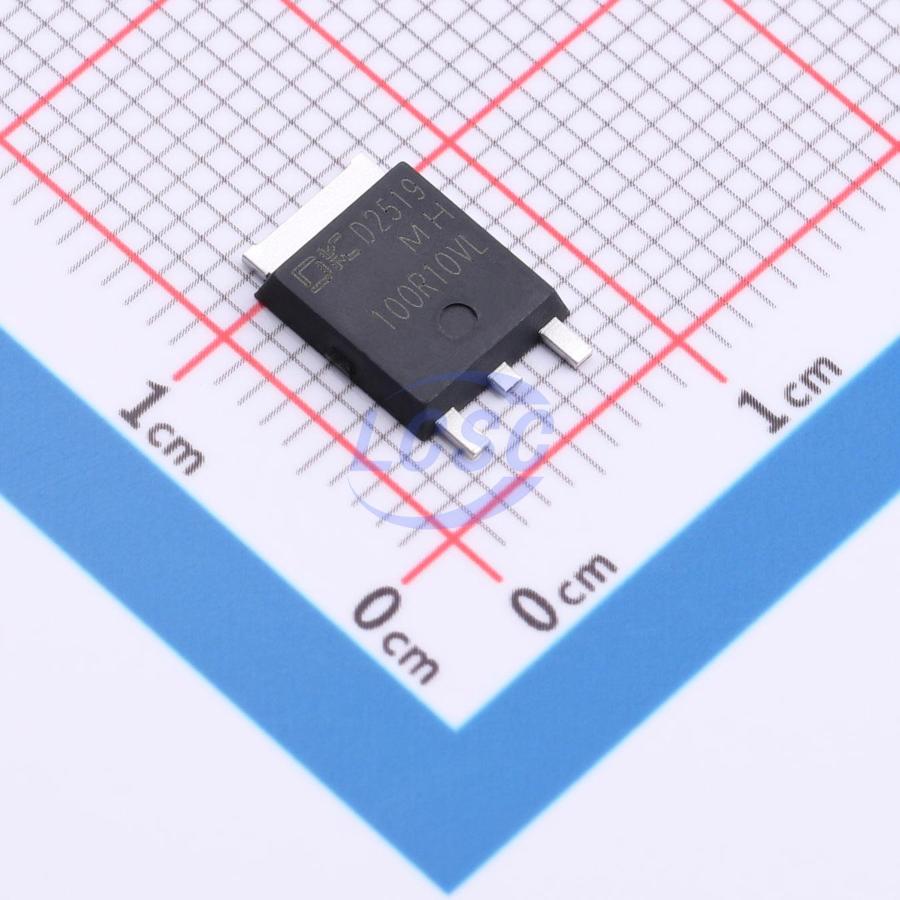

DK5V100R10VL
300kHz 1 10mΩ TO-252 Power Supply Controllers, Monitors
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V100R10VL
- Store part #
- C53183639
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,941 in stock
#C53183639
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.94 | ₹91.94 |
| 10+ | ₹74.45 | ₹744.50 |
| 30+ | ₹65.49 | ₹1,964.70 |
| 100+ | ₹56.96 | ₹5,696.00 |
| 500+ | ₹51.62 | ₹25,810.00 |
| 1,000+ | ₹49.06 | ₹49,060.00 |
1 × ₹91.94
₹91.94
excl. GST
₹108.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DK5V100R10VL
₹91.94 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 100V
- Frequency - Switching
- 300kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 10mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.72 g
Overview
DK5VxxRxxVL is a simple-structure, high-efficiency synchronous rectification chip featuring only two functional pins — A (Anode) and K (Cathode) — corresponding to the anode and cathode of a Schottky diode. The chip integrates an internal power NMOS with a voltage rating of 45V, 60V, 85V, 100V, or 120V, significantly reducing the conduction losses of conventional Schottky diodes and improving overall system efficiency. It serves as a drop-in replacement for existing Schottky rectifier diodes on the market. The chip is available in a TO-252 package.
Applications
- USB charger
- Power adapter
- LED driver
Key features
- Suitable for flyback primary-side feedback and secondary-side feedback applications
- Ultra-low forward voltage drop
- Extremely low operating temperature rise
- Integrated power NMOS with RDS(on) of 5mΩ, 10mΩ, or 15mΩ; voltage ratings of 45V, 60V, 85V, 100V, and 120V
- Supports CCM, DCM, and quasi-resonant mode operation
- Self-powered technology, no external auxiliary power supply required
- Intelligent detection system, no front-end synchronization signal required
- Improved EMI performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DK5V100R05VL#C48735479Shenzhen DongKe Semicon · TO-252 | Shenzhen DongKe Semicon | TO-252 | 1,390 | ₹143.11 · 1,390 in stock | View |
 | DK5V100R15VL#C53183638Shenzhen DongKe Semicon · TO-252 | Shenzhen DongKe Semicon | TO-252 | 118 | ₹73.39 · 118 in stock | View |
 | DK5V85R10VL#C53183637Shenzhen DongKe Semicon · TO-252 | Shenzhen DongKe Semicon | TO-252 | 500 | ₹92.81 · 500 in stock | View |
 | DK5V45R10VL#C53183633Shenzhen DongKe Semicon · TO-252 | Shenzhen DongKe Semicon | TO-252 | 5 | ₹43.51 · 5 in stock | View |
 | DK5V60R10VL#C53183635Shenzhen DongKe Semicon · TO-252 | Shenzhen DongKe Semicon | TO-252 | 945 | ₹50.99 · 945 in stock | View |
