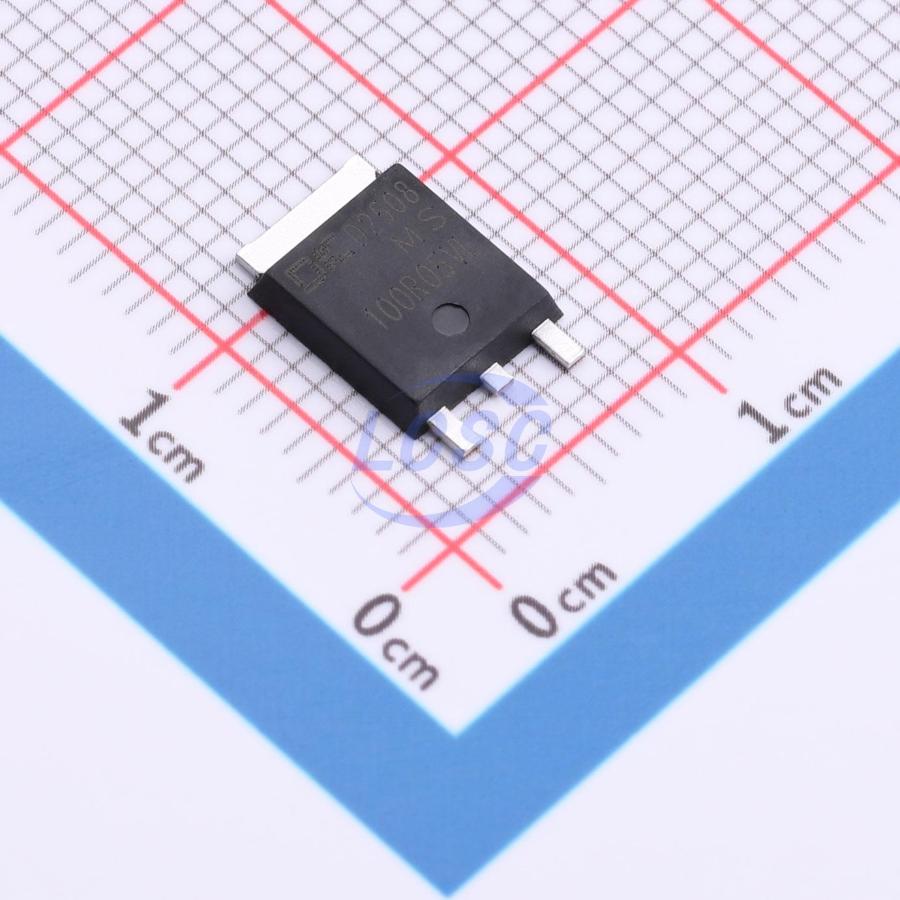

DK5V100R05VL
300kHz 5mΩ 1 TO-252 Power Supply Controllers, Monitors
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V100R05VL
- Store part #
- C48735479
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,390 in stock
#C48735479
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹143.11 | ₹143.11 |
| 10+ | ₹119.04 | ₹1,190.40 |
| 30+ | ₹105.59 | ₹3,167.70 |
| 100+ | ₹90.64 | ₹9,064.00 |
| 500+ | ₹83.92 | ₹41,960.00 |
| 1,000+ | ₹80.87 | ₹80,870.00 |
1 × ₹143.11
₹143.11
excl. GST
₹168.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
DK5V100R05VL
₹143.11 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 100V
- Frequency - Switching
- 300kHz
- Switch Tube (Built-In/External)
- Built-in
- RDS(on)
- 5mΩ
- Number of Channels
- 1
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.72 g
Overview
A simple and efficient synchronous rectification IC featuring only two functional pins, A and K, corresponding to the anode and cathode of a Schottky diode respectively. The IC integrates an internal 100V power NMOS transistor to significantly reduce diode conduction losses and improve overall system efficiency, designed as a drop-in replacement for equivalent Schottky rectifier diodes on the market. The IC is available in a TO-252 package.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low V<sub>F</sub>
- Ultra-low temperature rise
- Integrated 100V 5mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered technology, no external power supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMC performance
- Halogen-free and RoHS compliant
