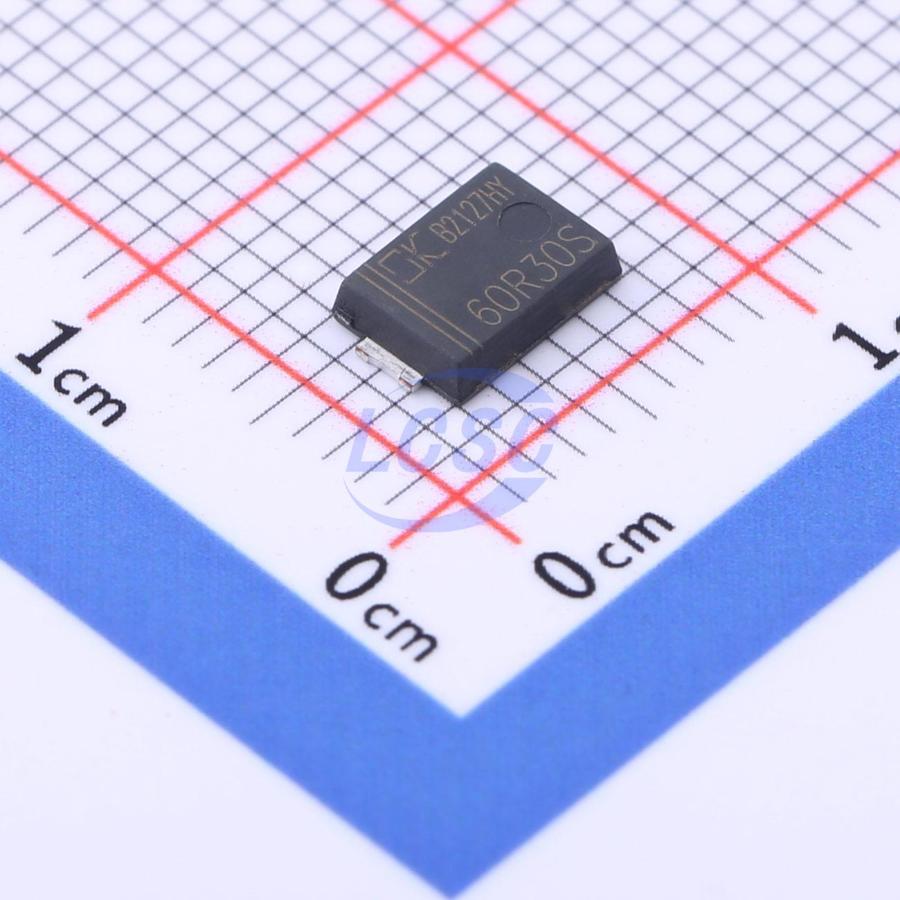

DK5V60R30S
150kHz 1 30mΩ SM-7 Power Supply Controllers, Monitors RoHS
High-performance dual-pin synchronous rectification chip
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V60R30S
- Store part #
- C557559
- Package / case
- SM-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,975 in stock
#C557559
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.86 | ₹164.30 |
| 50+ | ₹25.81 | ₹1,290.50 |
| 150+ | ₹22.78 | ₹3,417.00 |
| 500+ | ₹19.01 | ₹9,505.00 |
| 2,500+ | ₹17.33 | ₹43,325.00 |
| 5,000+ | ₹16.33 | ₹81,650.00 |
5 × ₹32.86
₹164.30
excl. GST
₹193.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK5V60R30S
₹164.30 for 5 + GST
Specifications
- MOS Breakdown Voltage
- 60V
- Function
- Multi-mode compatible control;Adaptive synchronous rectification control
- Frequency - Switching
- 150kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 30mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 50ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.157 g
Overview
DK5V60R30S is a simple and efficient two-pin synchronous rectification IC with only A and K pins, corresponding to the anode and cathode of a Schottky diode respectively. The IC integrates a 60V power NMOS internally, requiring no external components, which significantly reduces the conduction loss of conventional Schottky diodes, improves overall system efficiency, and serves as a drop-in replacement for equivalent Schottky rectifier diodes currently on the market. DK5V60R30S adopts the SM-7 package (compatible with TO-277 package).
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 60V 30mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered technology, no external power supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMI/C performance
- Direct drop-in replacement for Schottky diodes
- No external components required
