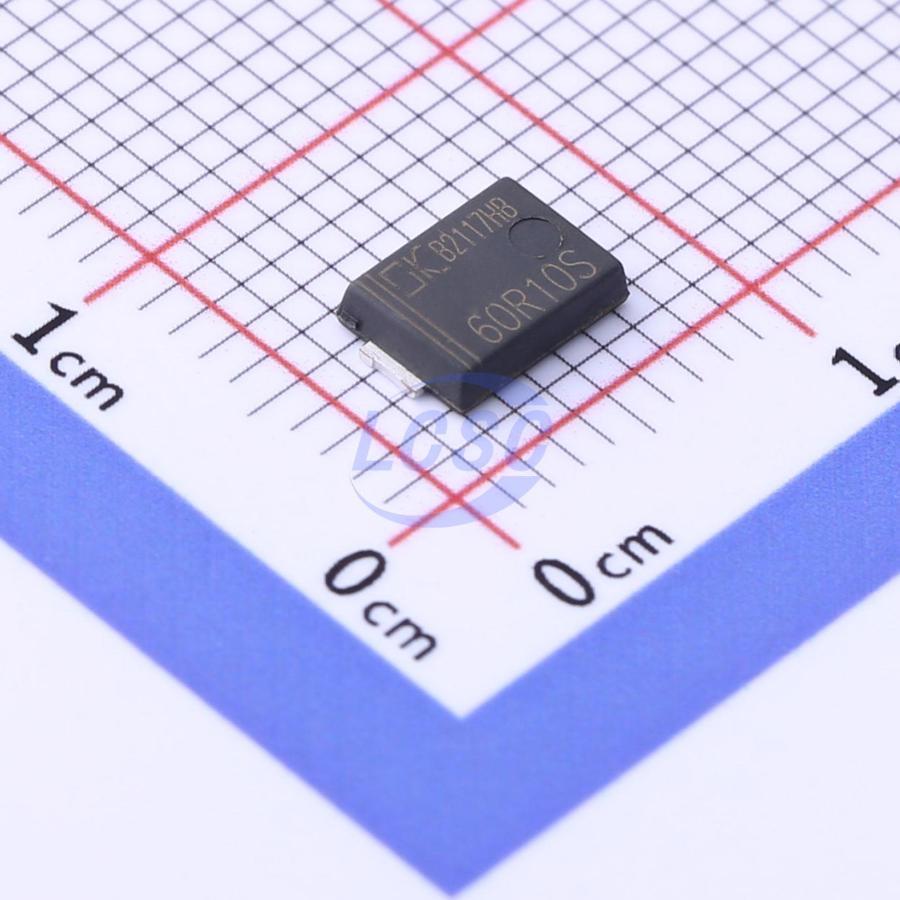

DK5V60R10S
150kHz 1 10mΩ SM-7 Power Supply Controllers, Monitors RoHS
High-performance dual-pin synchronous rectification chip
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V60R10S
- Store part #
- C2979258
- Package / case
- SM-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,745 in stock
#C2979258
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.73 | ₹258.65 |
| 50+ | ₹40.85 | ₹2,042.50 |
| 150+ | ₹36.08 | ₹5,412.00 |
| 500+ | ₹27.39 | ₹13,695.00 |
| 2,500+ | ₹24.78 | ₹61,950.00 |
| 5,000+ | ₹23.05 | ₹1,15,250.00 |
5 × ₹51.73
₹258.65
excl. GST
₹305.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK5V60R10S
₹258.65 for 5 + GST
Specifications
- MOS Breakdown Voltage
- 60V
- Function
- Multi-mode compatible control;Adaptive synchronous rectification control
- Frequency - Switching
- 150kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 10mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 50ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.197 g
Overview
DK5V60R10S is a simple and efficient two-pin synchronous rectifier IC requiring no external components, which significantly reduces the conduction losses of conventional Schottky diodes and improves overall system efficiency. The IC integrates a 60V power NMOS internally and is available in an SM-7 package (compatible with TO-277 package).
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 60V 10mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered, no external supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMI/C performance
- Direct drop-in replacement for Schottky diodes
- No external components required
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DK5V60R30S#C557559Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 4,975 | ₹32.86 · 4,975 in stock | View |
 | DK5V100R25S#C557564Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 4,830 | ₹60.06 · 4,830 in stock | View |
 | DK5V60R20S#C2979261Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 5,005 | ₹53.89 · 5,005 in stock | View |
 | DK5V60R10V#C22751424Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 75 | ₹46.31 · 75 in stock | View |
 | DK5V85R25S#C2979257Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 50 | ₹51.73 · 50 in stock | View |
