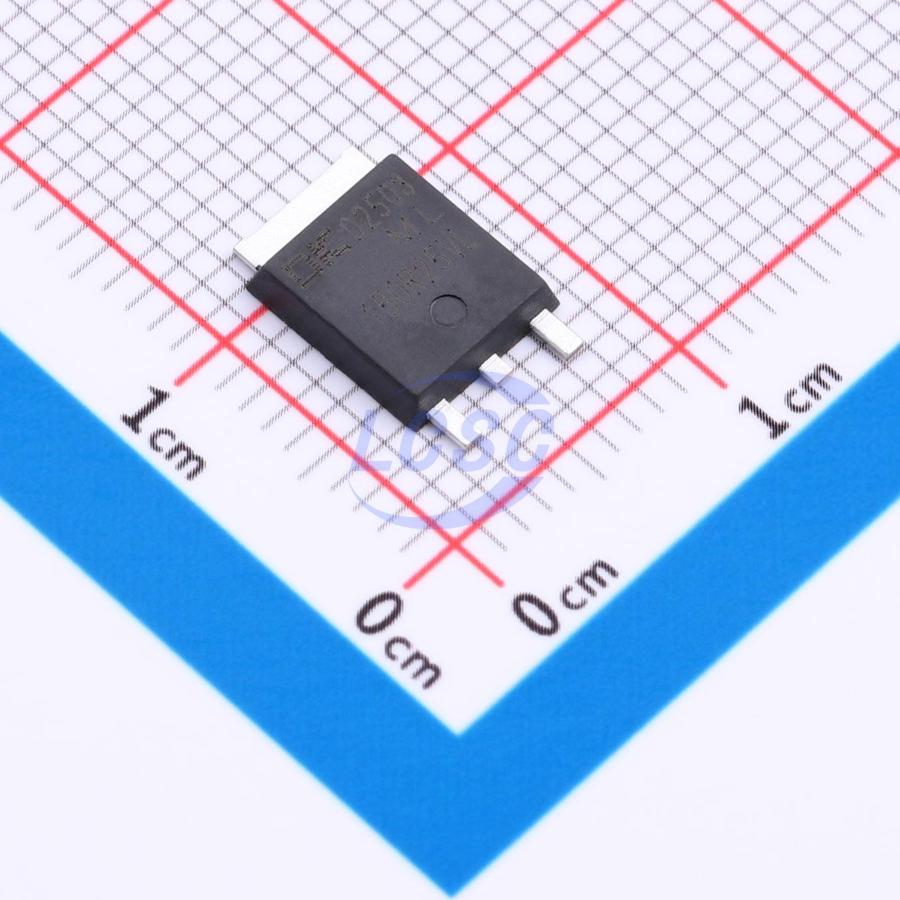

DK5V150R25VL
300kHz 1 25mΩ TO-252 Power Supply Controllers, Monitors
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V150R25VL
- Store part #
- C50345388
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,361 in stock
#C50345388
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.51 | ₹89.51 |
| 10+ | ₹79.74 | ₹797.40 |
| 30+ | ₹74.96 | ₹2,248.80 |
| 100+ | ₹70.19 | ₹7,019.00 |
| 500+ | ₹67.14 | ₹33,570.00 |
| 1,000+ | ₹65.62 | ₹65,620.00 |
1 × ₹89.51
₹89.51
excl. GST
₹105.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DK5V150R25VL
₹89.51 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 150V
- Frequency - Switching
- 300kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 25mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.7 g
Overview
The DK5V150R25VL is a simple and efficient synchronous rectification IC featuring only two functional pins, A and K, corresponding to the anode and cathode of a Schottky diode. The IC integrates an internal 150V power NMOS transistor, significantly reducing diode conduction losses and improving overall system efficiency. It serves as a drop-in replacement for equivalent Schottky rectifier diodes on the market. The IC is available in a TO-252 package.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low V<sub>F</sub>
- Ultra-low temperature rise
- Integrated 150V 25mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered technology, no external supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMC performance
- Halogen-free and RoHS compliant
