DAVICOM

DM9161AEP

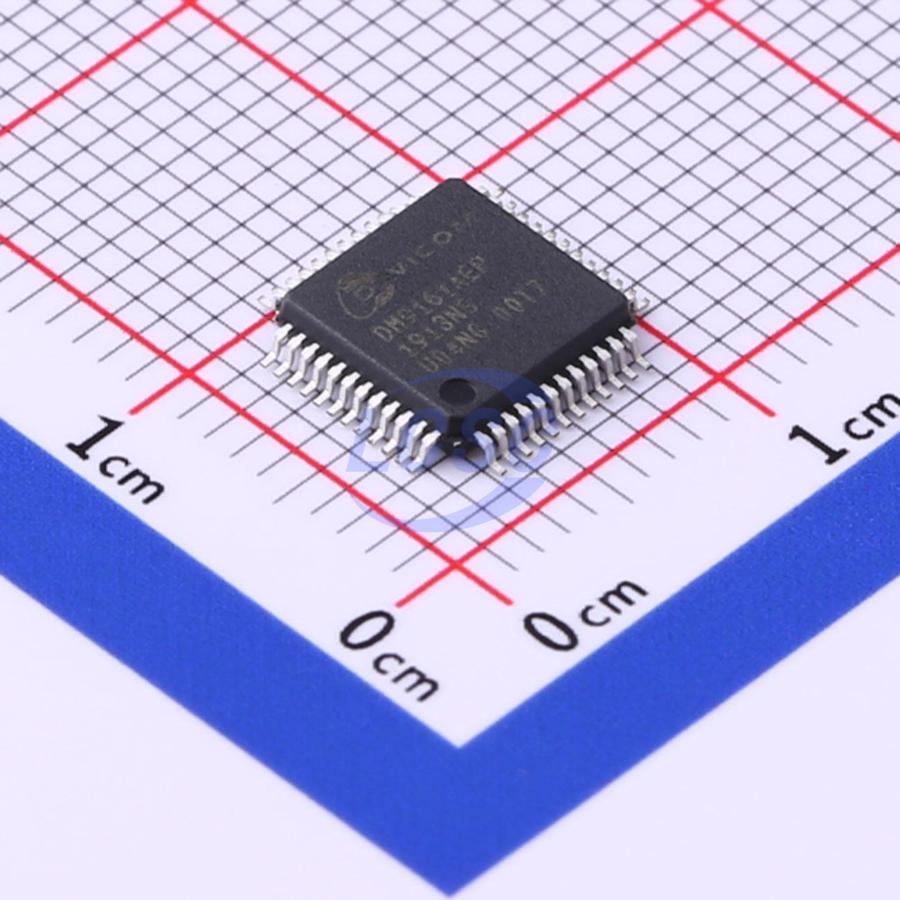

3.3V PHY Transceiver MII LQFP-48(7x7) Drivers, Receivers, Transceivers

LQFP-48(7x7)RoHSActive

10/100Mbps Fast Ethernet Physical Layer Single Chip Transceiver

Manufacturer: DAVICOM
Manufacturer part #: DM9161AEP
Store part #: C18215
Package / case: LQFP-48(7x7)
Category: Drivers, Receivers, Transceivers
Packaging: Tray

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,356 in stock

#C18215

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹339.53	₹339.53
10+	₹292.70	₹2,927.00
30+	₹263.22	₹7,896.60
250+	₹211.84	₹52,960.00
500+	₹198.17	₹99,085.00
1,000+	₹192.32	₹1,92,320.00

Quantity (min 1)

1 × ₹339.53

₹339.53

excl. GST

₹400.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 250 per tray

DM9161AEP

₹339.53 for 1 + GST

Specifications

Voltage - Supply: 3.3V
Type: PHY Transceiver
Ethernet Speed Standards: 10BASE-T;100BASE-TX
Data Rate: 10Mbit/s;100Mbit/s
Features: Programmable LED indication;Low-power mode
Interface: MII

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tray
Standard pack: 250 / Tray
Sold per: Piece
Minimum order: 1
Unit weight: 0.2 g

Overview

The DM9161A is a physical layer, single-chip, and low power transceiver for 100BASE-TX and 10BASE-T operations. On the media side, it provides a direct interface either to Unshielded Twisted Pair Category 5 Cable (UTP5) for 100BASE-TX Fast Ethernet, or UTP5/UTP3 Cable for 10BASE-T Ethernet. Through the Media Independent Interface (MII), the DM9161A connects to the Medium Access Control (MAC) layer, ensuring a high inter operability from different vendors. The DM9161A uses a low power and high performance advanced CMOS process. It contains the entire physical layer functions of 100BASE-TX as defined by IEEE802.3u, including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10BASE-TX Encoder/Decoder (ENC/DEC), and Twisted Pair Media Access Unit (TPMAU). The DM9161A provides a strong support for the auto-negotiation function, utilizing automatic media speed and protocol selection. Furthermore, due to the built-in wave shaping filter, the DM9161A needs no external filter to transport signals to the media in 100BASE-TX or 10BASE-T Ethernet operation.

Key features

Fully comply with IEEE 802.3 / IEEE 802.3u 10Base-T/ 100Base-TX, ANSI X3T12 TP-PMD 1995 standard
Support MDI/MDI-X auto crossover function (Auto-MDI)
Support Auto-Negotiation function, compliant with IEEE 802.3u
Fully integrated Physical layer transceiver
On-chip filtering with direct interface to magnetic transformer
Selectable repeater or node mode
Selectable MII or RMII (Reduced MII) mode for 100Base-TX and 10Base-TX
Selectable MII or GPSI (7-Wired) mode for 10Base-T
Selectable full-duplex or half-duplex operation
MII management interface with maskable interrupt output capability
Provide Loopback mode for easy system diagnostics
LED status outputs indicate Link/ Activity, Speed10/100 and Full-duplex/Collision
Support Dual-LED optional control
Single low power Supply of 3.3V with an advanced CMOS technology
Very Low Power consumption modes:
Power Reduced mode (cable detection)
Power Down mode
Selectable TX drivers for 1:1 or 1.25:1 trans
