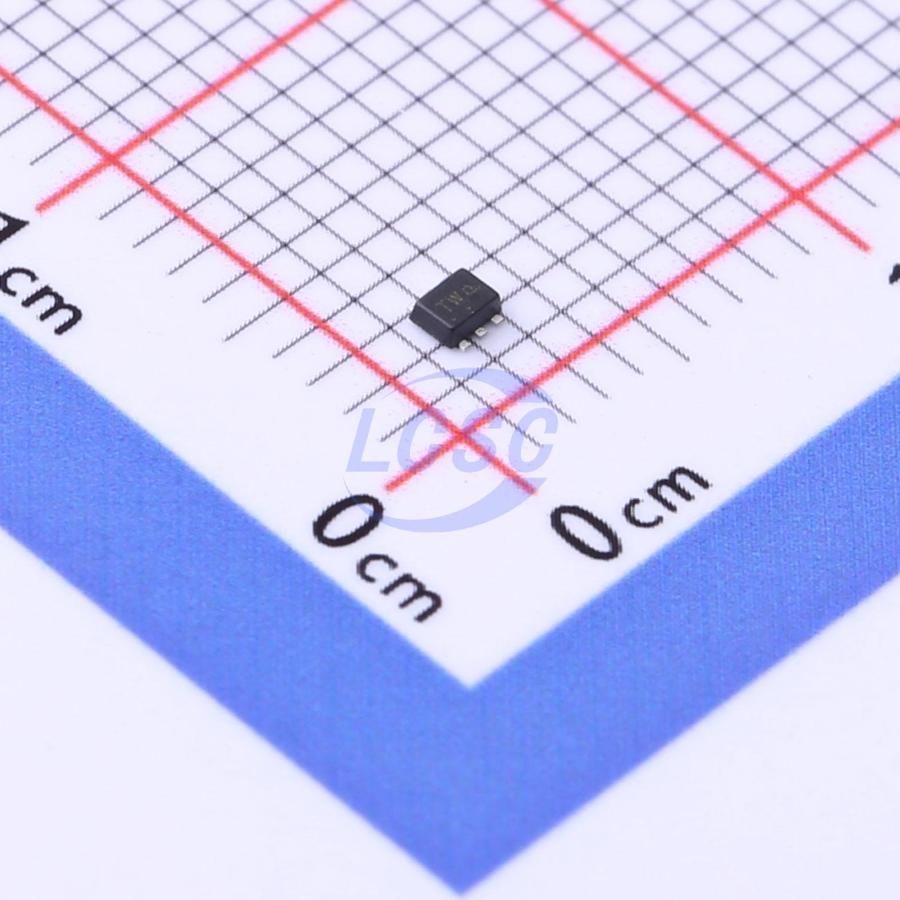

DMC2400UV
N-Channel+P-Channel Array 20V 0.75A Surface Mount SOT-563-6
SOT-563-6RoHSActive
MOSFET N-CH+P-CH ARR 20V 0.75A SOT-563-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- DMC2400UV
- Store part #
- C2940616
- Package / case
- SOT-563-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,675 in stock
#C2940616
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.54 | ₹87.70 |
| 50+ | ₹13.89 | ₹694.50 |
| 150+ | ₹12.07 | ₹1,810.50 |
| 500+ | ₹10.70 | ₹5,350.00 |
| 2,500+ | ₹8.61 | ₹21,525.00 |
| 4,000+ | ₹8.07 | ₹32,280.00 |
5 × ₹17.54
₹87.70
excl. GST
₹103.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DMC2400UV
₹87.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 120pF
- Ciss-Input Capacitance
- 170pF
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 750mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 800mΩ@1.8V
- Number
- 1 N-Channel + 1 P-Channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.045 g
Overview
JMT N-Channel and P-Channel Enhancement Mode MOSFET
Applications
- Notebook
- LoadSwitch
- Networking
- Hand-held Instruments
Key features
- ESD Protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPNTZD3155CT1G#C2940633TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 2,255 | ₹17.24 · 2,255 in stock | View |
 | TPM3155EX6#C2959839TECH PUBLIC · SOT-563-6 | TECH PUBLIC | SOT-563-6 | 840 | ₹21.46 · 840 in stock | View |
 | DMG1016V#C2940617TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 3,570 | ₹14.35 · 3,570 in stock | View |
 | NTZD3155CT1G#C2940634TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 3,910 | ₹17.95 · 3,910 in stock | View |
 | CJX3439K-TP#C41348149TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 890 | ₹9.51 · 890 in stock | View |
