TECH PUBLICDatasheet (PDF)

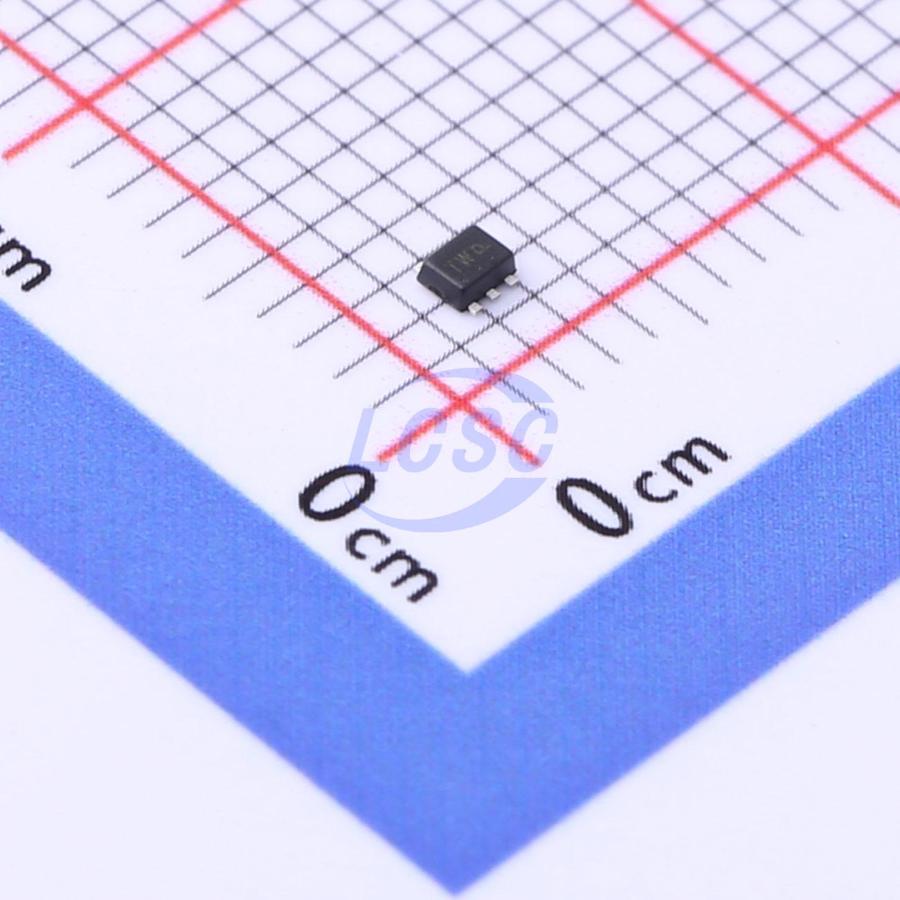

TPNTZD3155CT1G
N-Channel+P-Channel Array 20V 0.75A Surface Mount SOT-563
SOT-563RoHSActive
MOSFET N-CH+P-CH ARR 20V 0.75A SOT-563
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPNTZD3155CT1G
- Store part #
- C2940633
- Package / case
- SOT-563
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C2940633
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.24 | ₹86.20 |
| 50+ | ₹13.79 | ₹689.50 |
| 150+ | ₹12.07 | ₹1,810.50 |
| 500+ | ₹10.77 | ₹5,385.00 |
| 2,500+ | ₹8.57 | ₹21,425.00 |
| 4,000+ | ₹8.04 | ₹32,160.00 |
5 × ₹17.24
₹86.20
excl. GST
₹101.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPNTZD3155CT1G
₹86.20 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 170pF
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 750mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 800mΩ@1.8V
- Number
- 1 N-Channel + 1 P-Channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
Applications
- Notebook
- Load Switch
- Networking
- Hand-held Instruments
Key features
- Electrostatic discharge protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM3155EX6#C2959839TECH PUBLIC · SOT-563-6 | TECH PUBLIC | SOT-563-6 | 840 | ₹21.46 · 840 in stock | View |
 | DMG1016V#C2940617TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 3,570 | ₹14.35 · 3,570 in stock | View |
 | DMC2400UV#C2940616TECH PUBLIC · SOT-563-6 | TECH PUBLIC | SOT-563-6 | 3,675 | ₹17.54 · 3,675 in stock | View |
 | NTZD3155CT1G#C2940634TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 3,910 | ₹17.95 · 3,910 in stock | View |
 | CJX3439K-TP#C41348149TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 890 | ₹9.51 · 890 in stock | View |
