TECH PUBLICDatasheet (PDF)

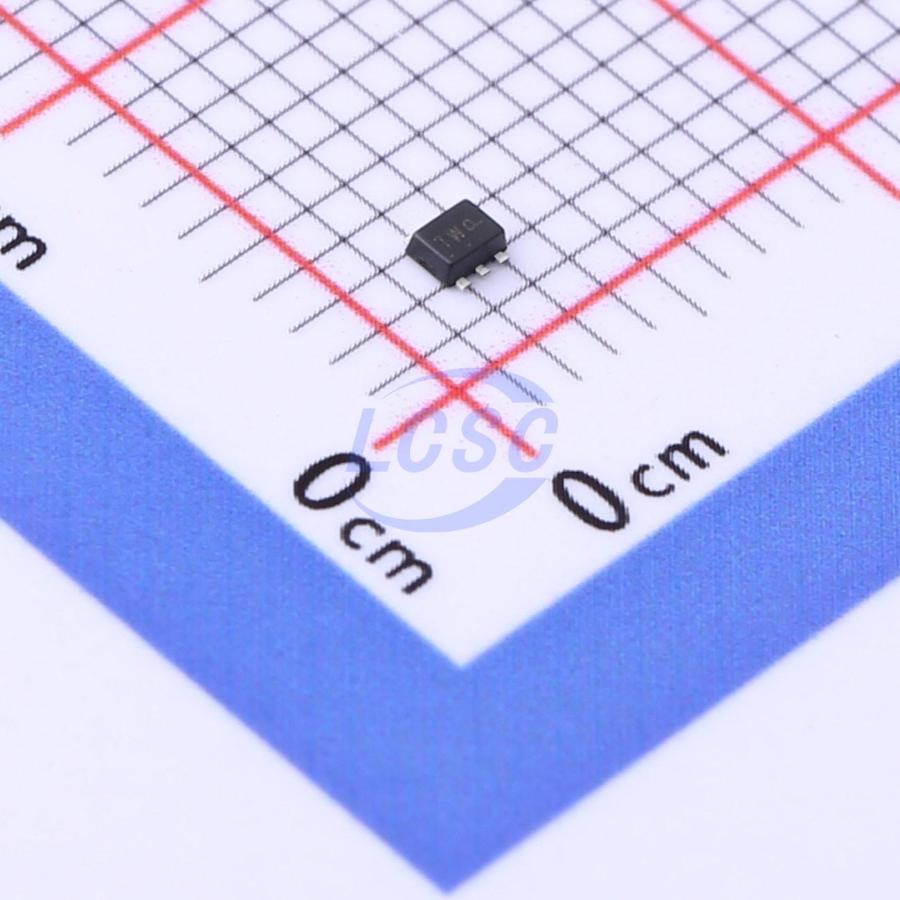

DMG1016V
N-Channel+P-Channel Array 20V 0.75A Surface Mount SOT-563
SOT-563RoHSActive
MOSFET N-CH+P-CH ARR 20V 0.75A SOT-563
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- DMG1016V
- Store part #
- C2940617
- Package / case
- SOT-563
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,570 in stock
#C2940617
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.35 | ₹71.75 |
| 50+ | ₹11.48 | ₹574.00 |
| 150+ | ₹10.05 | ₹1,507.50 |
| 500+ | ₹8.97 | ₹4,485.00 |
| 2,500+ | ₹7.14 | ₹17,850.00 |
| 4,000+ | ₹6.71 | ₹26,840.00 |
5 × ₹14.35
₹71.75
excl. GST
₹84.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DMG1016V
₹71.75 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 170pF
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 750mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 950mΩ@1.8V
- Number
- 1 N-Channel + 1 P-Channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Applications
- Notebook
- LoadSwitch
- Networking
- Hand-held Instruments
Key features
- ESD Protected
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJX3439K-TP#C41348149TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 890 | ₹9.51 · 890 in stock | View |
 | TPNTZD3155CT1G#C2940633TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 2,255 | ₹17.24 · 2,255 in stock | View |
 | TPM3155EX6#C2959839TECH PUBLIC · SOT-563-6 | TECH PUBLIC | SOT-563-6 | 840 | ₹21.46 · 840 in stock | View |
 | NTZD3155CT1G#C2940634TECH PUBLIC · SOT-563 | TECH PUBLIC | SOT-563 | 3,910 | ₹17.95 · 3,910 in stock | View |
 | DMC2400UV#C2940616TECH PUBLIC · SOT-563-6 | TECH PUBLIC | SOT-563-6 | 3,675 | ₹17.54 · 3,675 in stock | View |
