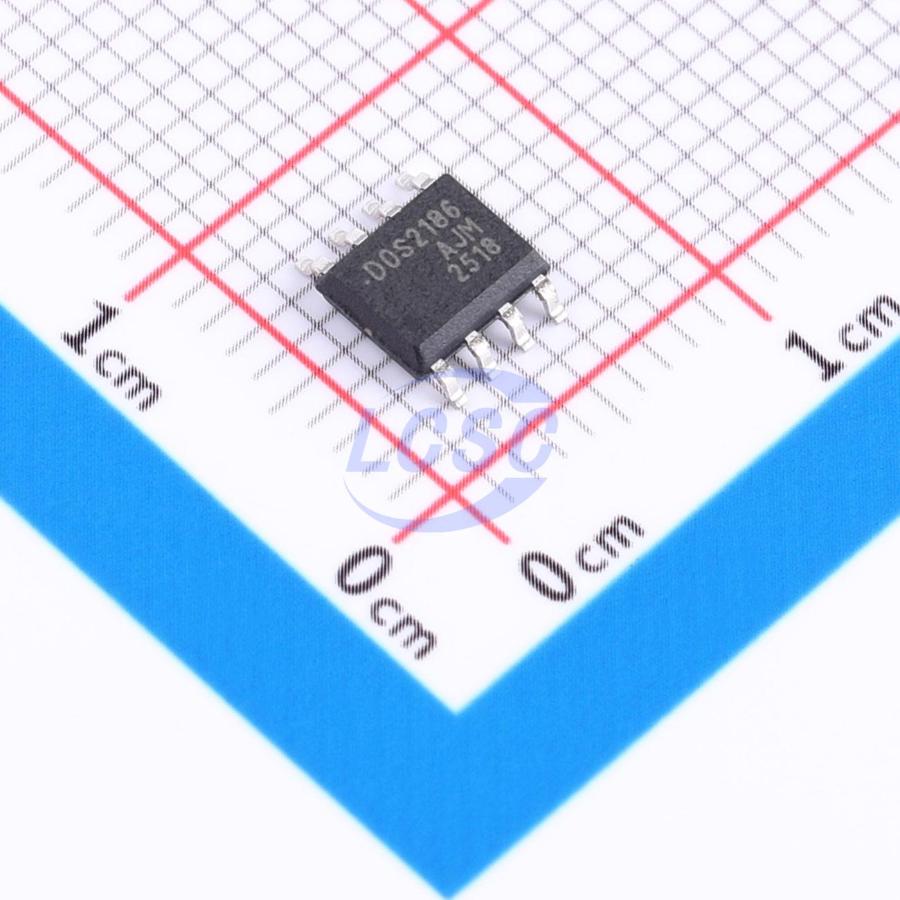

DOS2186
700V 4A 4A SOIC-8 Gate Drivers
- Manufacturer
- DOINGTER
- Manufacturer part #
- DOS2186
- Store part #
- C52140038
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,957 in stock
#C52140038
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.97 | ₹82.97 |
| 10+ | ₹66.32 | ₹663.20 |
| 30+ | ₹58.12 | ₹1,743.60 |
| 100+ | ₹49.90 | ₹4,990.00 |
| 500+ | ₹44.94 | ₹22,470.00 |
| 1,000+ | ₹42.35 | ₹42,350.00 |
1 × ₹82.97
₹82.97
excl. GST
₹97.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DOS2186
₹82.97 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 250ns
- Quiescent Current
- 150uA
- Input Logic Level - High
- 1V~2.5V
- Voltage - Supply
- 700V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 15ns
- Fall Time
- 10ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
DOS2186 is a high-voltage, high-speed power MOSFET driver with independent high-side and low-side referenced output channels. Its proprietary high-voltage IC and latch-up immune CMOS technology enable a robust monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs, down to 3.3V logic levels. The output drivers feature high pulse current buffer stages designed to minimize cross-conduction. The floating channel can be used to drive N-channel power MOSFETs in high-side configurations, operating at voltages up to 700V.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro/Mini Inverter Driver
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt noise immunity: ±50 V/ns
- Allowable negative Vs: -9V
- Gate drive supply voltage range: 10V to 20V
- UVLO on both channels — forward 8.9V, reverse 8.2V
- Turn-on/turn-off propagation delay — Ton/Toff = 130 ns / 130 ns
- Matched propagation delay on both channels
- Typical output source/sink current capability: 4A/4A
- RoHS compliant
