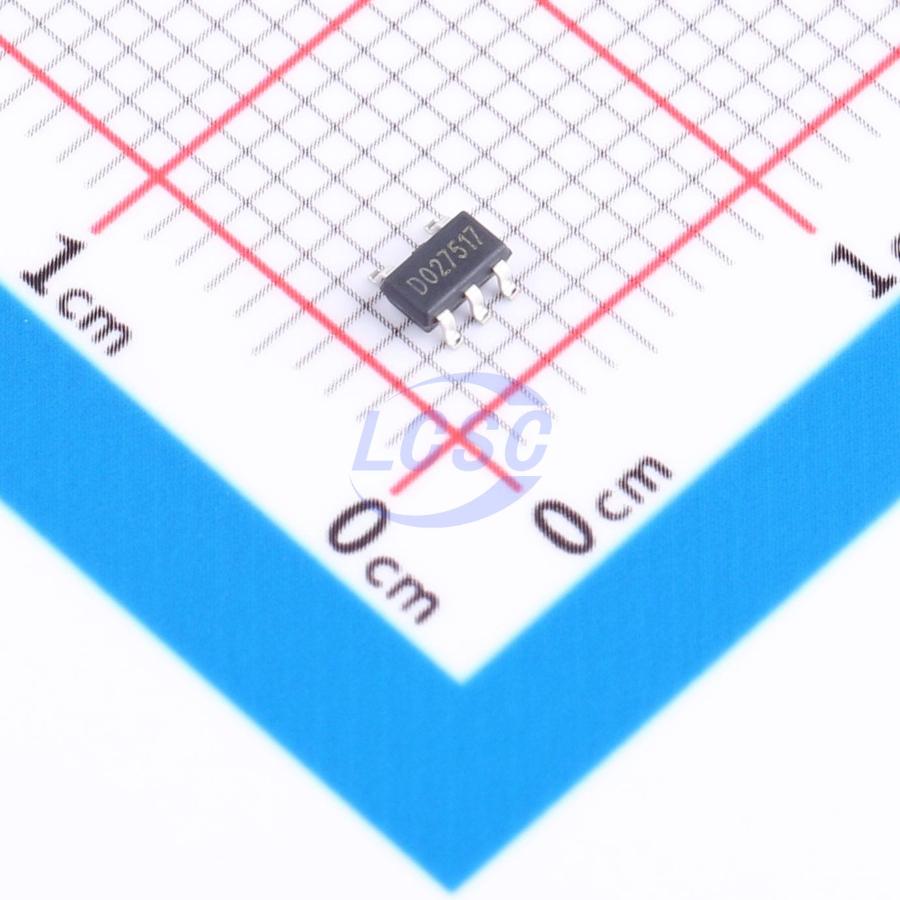

DOS27517
5V~25V 4A 4A SOT-23-5 Gate Drivers
- Manufacturer
- DOINGTER
- Manufacturer part #
- DOS27517
- Store part #
- C52140037
- Package / case
- SOT-23-5
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,645 in stock
#C52140037
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.77 | ₹88.85 |
| 50+ | ₹14.13 | ₹706.50 |
| 150+ | ₹12.30 | ₹1,845.00 |
| 500+ | ₹10.94 | ₹5,470.00 |
| 3,000+ | ₹9.84 | ₹29,520.00 |
| 6,000+ | ₹9.30 | ₹55,800.00 |
5 × ₹17.77
₹88.85
excl. GST
₹104.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DOS27517
₹88.85 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 60ns
- Quiescent Current
- 180uA
- Input Logic Level - High
- 1V~2.5V
- Voltage - Supply
- 5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 10ns
- Features
- Enable shutdown
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
The DOS27517 is a low-voltage power MOSFET and IGBT in-phase gate driver. Its proprietary latch-up resistant CMOS technology enables a highly robust single-chip integrated architecture. The DOS27517 logic input levels are compatible with CMOS or TTL logic output levels as low as 3.3V. The output driver features an internal undervoltage lockout circuit with hysteresis and output current buffer stage. The DOS27517 is designed for operation over a wide VCC range of 5V to 25V and a wide temperature range of -40℃ to 125℃.
Applications
- Switch-mode power supplies
- General-purpose gate driver
- Drives MOSFETs and IGBTs
Key features
- Dual-input design (selectable inverting or non-inverting driver configuration) — unused input pin available for enable/disable function
- TTL and CMOS compatible input logic thresholds
- 5V to 25V single-supply range
- -40℃ to 125℃ operating temperature range
- UVLO function
- UVLO turn-on threshold: 4.0V
- UVLO turn-off threshold: 3.9V
- Turn-on/turn-off delay: Ton/Toff = 30ns/30ns
- 4A peak source and sink current drive capability
- SOT-23-5 package
