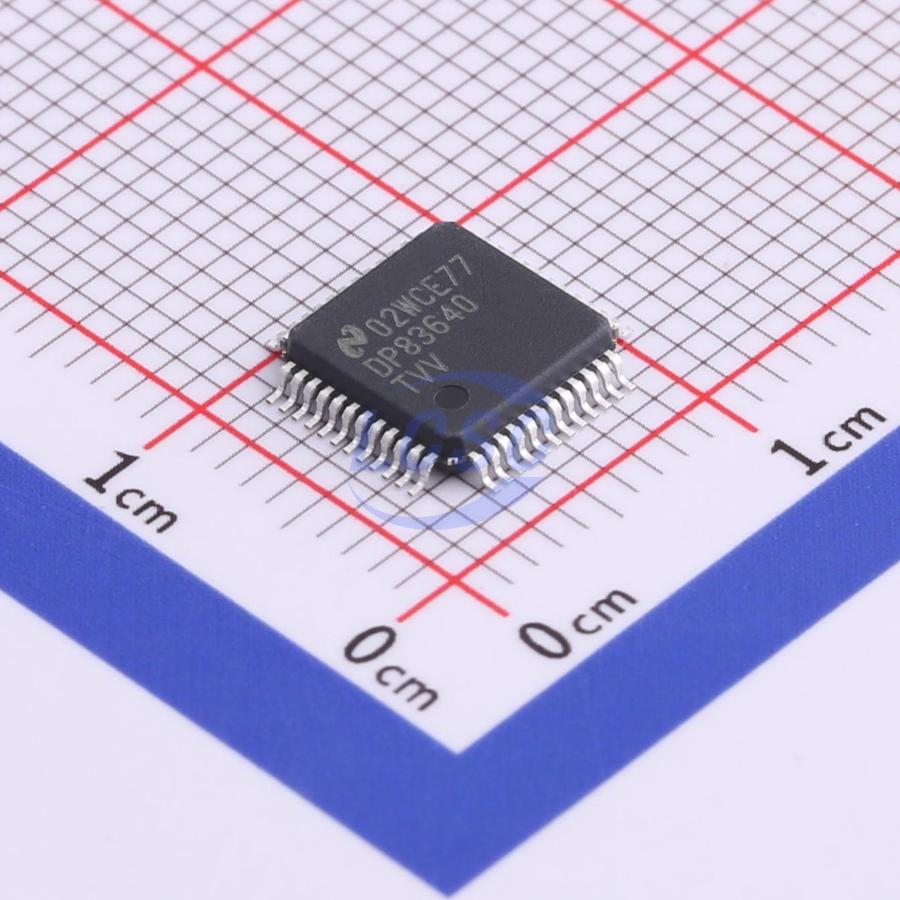

DP83640TVVX/NOPB

PHY Transceiver LQFP-48(7x7) Drivers, Receivers, Transceivers RoHS

LQFP-48(7x7)ROHS3 CompliantActive

Precision PHYTER - IEEE 1588 Precision Time Protocol Transceiver

Manufacturer: TI
Manufacturer part #: DP83640TVVX/NOPB
Store part #: C544437
Package / case: LQFP-48(7x7)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,443 in stock

#C544437

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹857.69	₹857.69
10+	₹740.19	₹7,401.90
30+	₹647.45	₹19,423.50
100+	₹587.50	₹58,750.00

Quantity (min 1)

1 × ₹857.69

₹857.69

excl. GST

₹1,012.07 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,000 per reel

DP83640TVVX/NOPB

₹857.69 for 1 + GST

Specifications

Voltage - Supply: 2.5V;3.3V
Type: PHY Transceiver
Ethernet Speed Standards: 10BASE-T;100BASE-TX;100BASE-FX
Data Rate: 10Mbit/s;100Mbit/s
number of channels: 1
Operating Temperature: -40℃~+85℃
Features: Support optical fiber;IEEE1588 timestamp;Cable diagnostics;Programmable LED indication
Interface: RMII;MII

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: 5A991B1
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.269 g

Overview

The DP83640 Precision PHYTER device delivers the highest level of precision clock synchronization for real time industrial connectivity based on the IEEE 1588 standard. The DP83640 has deterministic, low latency and allows choice of microcontroller with no hardware customization required. The integrated 1588 functionality allows system designers the flexibility and precision of a close to the wire timestamp. The three key 1588 features supported by the device are: Packet time stamps for clock synchronization Integrated IEEE 1588 synchronized clock generation Synchronized event triggering and time stamping through GPIO DP83640 offers innovative diagnostic features unique to Texas Instruments, including dynamic monitoring of link quality during standard operation for fault prediction. These advanced features allow the system designer to implement a fault prediction mechanism to detect and warn of deteriorating and changing link conditions. This single port fast Ethernet transceiver can support both copper and fiber media.

Applications

Factory Automation – Ethernet/IP – CIP Sync
Test and Measurement – LXI Standard
Telecom – Basestation
Real Time Networking

Key features

IEEE 1588 V1 and V2 Supported
UDP/IPv4, UDP/IPv6, and Layer2 Ethernet Packets Supported
IEEE 1588 Clock Synchronization Timestamp Resolution of 8 ns Allows Sub 10-ns Synchronization to Master Reference
12 IEEE 1588 GPIOs for Trigger or Capture
Deterministic, Low Transmit and Receive Latency
Selectable Frequency Synchronized Clock Output
Dynamic Link Quality Monitoring
TDR Based Cable Diagnostic and Cable Length Detection
10/100 Mb/s Packet BIST (Built-in Self Test)
Error-Free Operation up to 150 Meters CAT5 Cable
ESD Protection - 8 kV Human Body Model
2.5-V and 3.3-V I/Os and MAC Interface
Auto-MDIX for 10/100 Mbps
RMII Rev. 1.2 and MII MAC Interface
25-MHz MDC and MDIO Serial Management Interface
IEEE 802.3 100BASE-FX Fiber Interface
IEEE 1149.1 JTAG
Programmable LED Support for Link, 10/100 Mb/s Mode, Duplex, Activity, and Collision Detect
Optional 100BASE-TX Fast Link-loss Detection
Industrial Temperature Range
48-pin LQFP Package (7 mm×7 mm)
