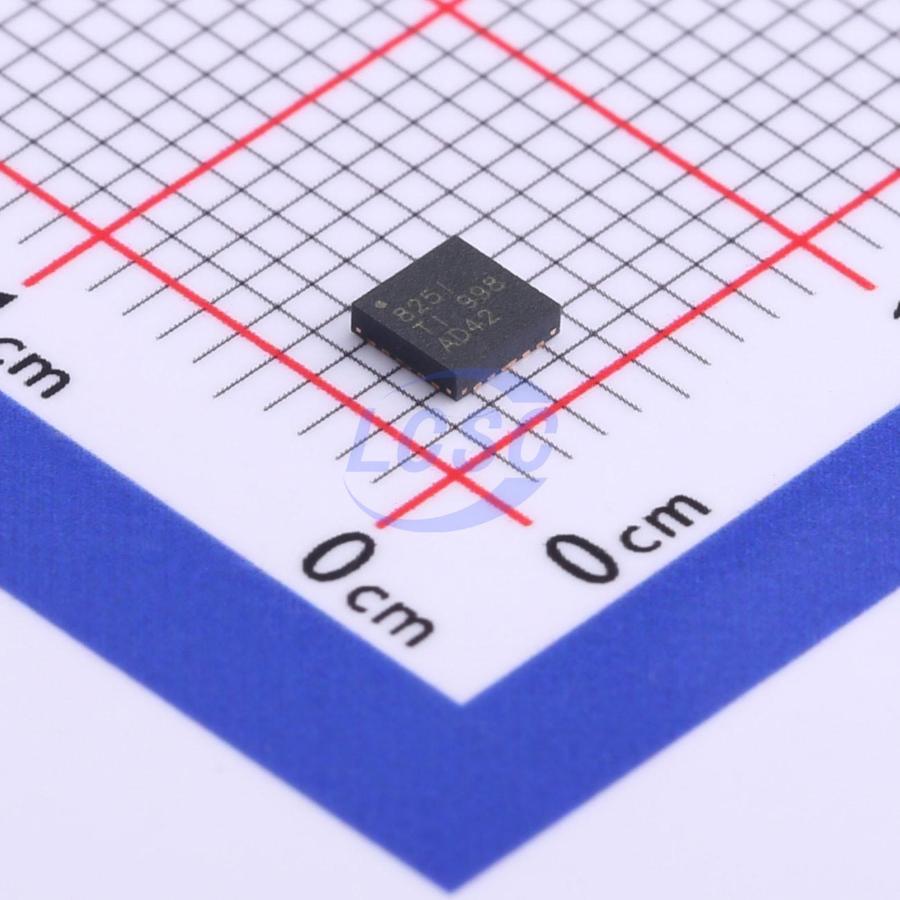

DP83825IRMQR

Ethernet Transceiver RMII HVQFN-24-EP(3x3) Drivers, Receivers, Transceivers RoHS

HVQFN-24-EP(3x3)ROHS3 CompliantActive

Low-power 10/100Mbps Ethernet PHY transceiver

Manufacturer: TI
Manufacturer part #: DP83825IRMQR
Store part #: C783599
Package / case: HVQFN-24-EP(3x3)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,094 in stock

#C783599

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹59.73	₹59.73
10+	₹46.49	₹464.90
30+	₹40.84	₹1,225.20
100+	₹33.67	₹3,367.00
500+	₹30.42	₹15,210.00
1,000+	₹28.68	₹28,680.00

Quantity (min 1)

1 × ₹59.73

₹59.73

excl. GST

₹70.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

DP83825IRMQR

₹59.73 for 1 + GST

Specifications

Voltage - Supply: 3.3V;1.8V
Type: Ethernet Transceiver
Ethernet Speed Standards: 10BASE-TE;100BASE-TX
Data Rate: 10Mbit/s;100Mbit/s
Operating Temperature: -40℃~+85℃
Features: Cable diagnostics;Low-power mode
Interface: RMII

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.068 g

Overview

The DP83825I is an ultra-low-power Ethernet physical layer transceiver with an ultra-small size. It integrates the PMD sub-layer and supports the 10BASE-Te and 100BASE-TX Ethernet protocols. This transceiver supports CAT5e cables up to 150 meters in length. The DP83825I is directly connected to the twisted-pair medium through an external transformer. In the master-slave mode, this device is connected to the MAC layer through the simplified MII (RMII). In the RMII master mode, it provides a 50MHz output clock. This output clock is synchronized with the MDI-derived clock to reduce system jitter. The DP83825I also supports Energy-Efficient Ethernet (EEE), Wake-on-LAN (WoL), and MAC isolation to further reduce system power consumption. For traditional MACs that do not support sending EEE signals through the MAC, the energy-saving mode can be enabled by configuring the registers. The DP83825I can operate in the unmanaged repeater mode. In this mode, the DP83825I operates as a repeater without the need to configure the registers. To facilitate development and debugging, the DP83825I provides an integrated cable diagnostic tool, built-in self-test, and loopback functions.

Applications

Building automation: IP cameras, HMI
Consumer electronics: STB, OTT, IPTV, gaming consoles
Printers
Electronic point-of-sale terminals
Factory automation

Key features

Ultra-small 10/100Mbps PHY: QFN 3mm × 3mm, 24-pin
Ultra-low power consumption <127mW
Compact system solution: integrated MDI and MAC termination resistors
Programmable power-saving modes: Active Sleep, Deep Power-Down, Energy Efficient Ethernet (EEE) IEEE 802.3az, EEE support for legacy MACs, Wake-on-LAN (WoL)
Voltage-mode line driver
MAC interface: RMII (master/slave mode), 3.3V single supply, I/O voltage: 1.8V and 3.3V
Repeater: RMII back-to-back mode in unmanaged mode
MDC/MDIO interface for configuration and status
Fast Link Drop mode
Diagnostic features: TDR-based open/short cable diagnostics, built-in packet generator, multiple loopback paths
Programmable hardware interrupt pin
Operating temperature range: -40°C to 85°C
Compliant with IEEE 802.3 100BASE-TX and 10BASE-Te specifications
