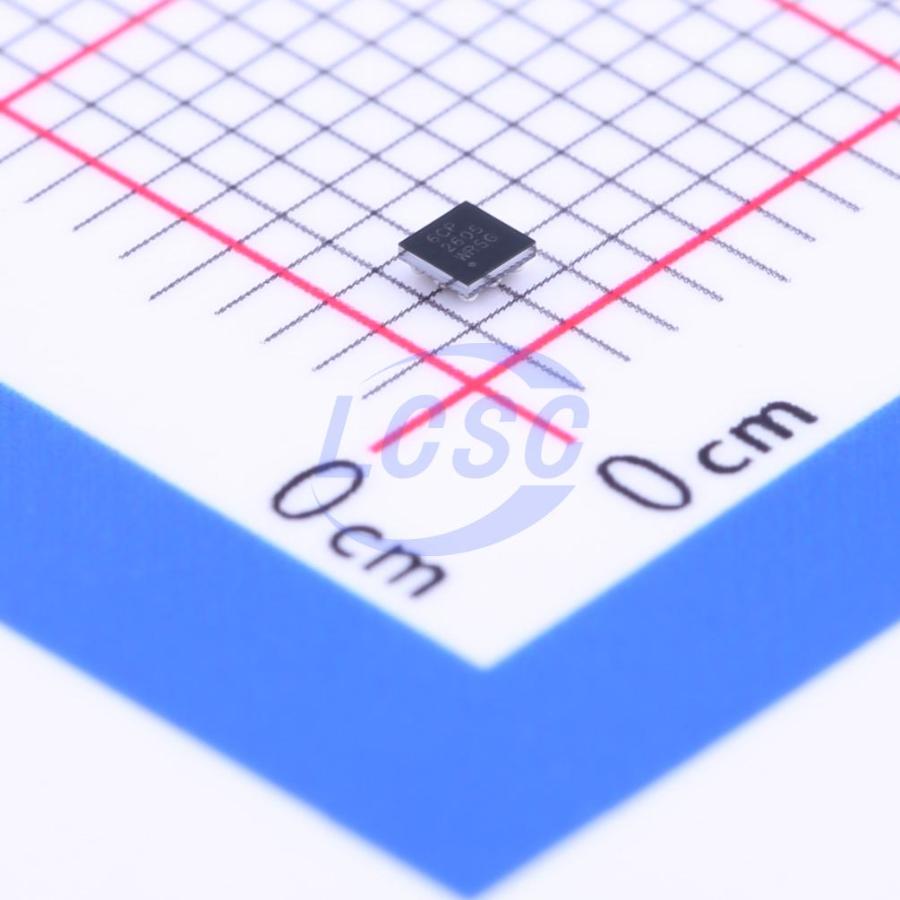

DRV2605YZFR
2.5V~5.5V DSBGA-9 Motor Drivers, Controllers RoHS
Flexible touch feedback/Vibra driver
- Manufacturer
- TI
- Manufacturer part #
- DRV2605YZFR
- Store part #
- C81079
- Package / case
- DSBGA-9
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,552 in stock
#C81079
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.83 | ₹192.83 |
| 10+ | ₹170.47 | ₹1,704.70 |
| 30+ | ₹154.62 | ₹4,638.60 |
| 100+ | ₹140.07 | ₹14,007.00 |
| 500+ | ₹133.33 | ₹66,665.00 |
| 1,000+ | ₹130.73 | ₹1,30,730.00 |
1 × ₹192.83
₹192.83
excl. GST
₹227.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV2605YZFR
₹192.83 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Active braking function;Soft switching
- Technology
- Yes
- Voltage - Supply
- 2.5V~5.5V
- Interface
- I2C
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 600uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
The DRV2605 device is designed to provide highly flexible ERM and LRA actuator haptics through a shared I²C-compatible bus. This control eliminates the need for the host processor to generate pulse-width modulation (PWM) drive signals, saving costly timer interrupts and hardware pins. The DRV2605 device features a rich integrated library that offers over 100 licensed effects from ERM and LRA Immersion, eliminating the need to design haptic waveforms. The DRV2605 device provides the licensed Immersion TouchSense2200 software, which includes a 2200 effects library and has 2200 audio-vibration characteristics. Additionally, the host processor can use the real-time playback mode to bypass the library playback engine and play waveforms directly from the host via I²C. The DRV2605 device also includes an intelligent loop architecture that enables easy LRA automatic resonance drive and ERM drive with optimized feedback. This feedback provides automatic over-drive and braking, resulting in a simplified input waveform diagram and reliable motor control and stable motor performance. The audio-to-haptic mode automatically converts the audio input signal into actual haptic effects. The DRV2605 device features a triple-modulation output stage that provides higher efficiency than linear output drivers. The DRV2605 device comes in a 9-ball WCSP package and uses a small number of components, offering flexible operation and making it an ideal choice for portable vibration and haptic applications that support haptic feedback.
Applications
- Mobile phones and tablets
- Watches and wearable technology
- Remote controls, mice, and peripheral devices
- Devices with haptic feedback
- Human-machine interfaces
Key features
- Flexible haptic feedback/vibra driver for LRA (Linear Resonance Actuator) and ERM (Eccentric Rotating Mass)
- I²C-controlled digital playback engine with real-time playback mode via I²C
- Auto overdrive/braking (ERM/LRA)
- Auto resonance tracking (LRA)
- Auto actuator diagnostics (ERM/LRA)
- Auto level calibration (ERM/LRA)
- Licensed Immersion TouchSense 2200 features: integrated Immersion effects library and audio-to-vibe
- Optional PWM input with duty cycle control range of 0% to 100%
- Optional analog input control
- Optional hardware trigger pin
- High-efficiency output driver
- Fast startup time
- Sustained acceleration over supply voltage
- 1.8V compatible, VDD-tolerant digital pins
- Patent-pending control algorithms
