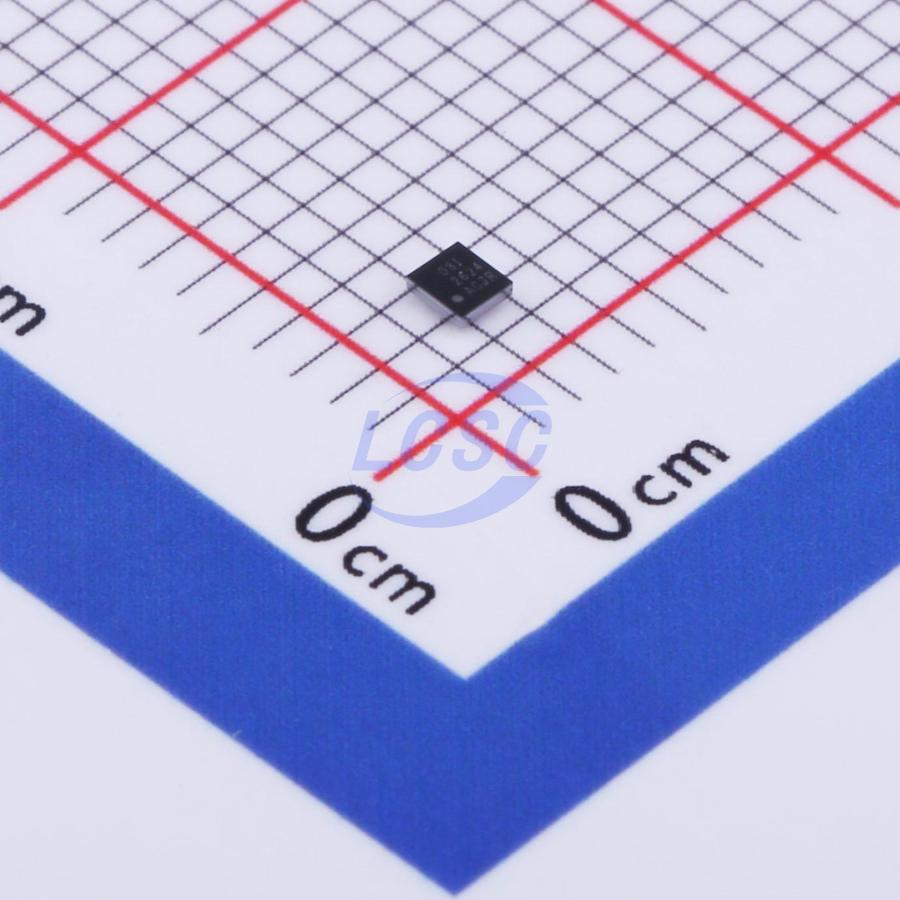

DRV2624YFFR
2.7V~5.5V DSBGA-9 Motor Drivers, Controllers RoHS
Ultra-low power closed-loop LRA/ERM haptic driver with internal memory
- Manufacturer
- TI
- Manufacturer part #
- DRV2624YFFR
- Store part #
- C881487
- Package / case
- DSBGA-9
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,733 in stock
#C881487
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.72 | ₹109.72 |
| 10+ | ₹88.03 | ₹880.30 |
| 30+ | ₹77.41 | ₹2,322.30 |
| 100+ | ₹66.57 | ₹6,657.00 |
| 500+ | ₹60.28 | ₹30,140.00 |
| 1,000+ | ₹57.03 | ₹57,030.00 |
1 × ₹109.72
₹109.72
excl. GST
₹129.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV2624YFFR
₹109.72 for 1 + GST
Specifications
- Features
- Enable shutdown
- Voltage - Supply
- 2.7V~5.5V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2.5mA
- Input Logic Level - High
- 1.41V
- Input Logic Level - Low
- 400mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
The DRV2624 device is a haptic driver that relies on a proprietary closed-loop architecture to deliver sharp, strong, and consistent haptic effects while optimizing power consumption. The device features built-in memory and a recyclable waveform sequencer, as well as automatic overdrive and braking functions, which can easily generate clear and high-quality haptic effects, thereby reducing the burden on the processing unit. The DRV2624 device has a unique function of automatically entering standby mode and a battery protection function, which can help reduce power consumption without user intervention. The device can be put into a complete shutdown state through the NRST pin to save more power. Sine wave and square wave driving can be achieved through waveform shape selection to customize the tactile and audible performance. Non-resonant driving with automatic braking simplifies the implementation of non-resonant haptic solutions.
Applications
- Mobile phones
- Tablets
Key features
- Ultra-low-power shutdown mode
- Low-power standby state
- Resistance-based actuator diagnostics
- SimpleDrive single-wire haptic solution
- Automatic resonance tracking and reporting
- Auto overdrive and braking
- Auto level calibration
- Drive compensation during battery discharge
- Configurable battery monitor and power protection
- Non-resonant drive with auto braking
- LRA waveform shape selection
- Integrated RAM
- Real-time playback (RTP) mode
- I2C-controlled digital playback engine
- Hardware and software trigger options
- Auto transition to standby mode via auto braking
- Optional interrupt pin
- 1.8V-compatible, VDD-tolerant digital interface
- Patent-pending control algorithm
