TIDatasheet (PDF)

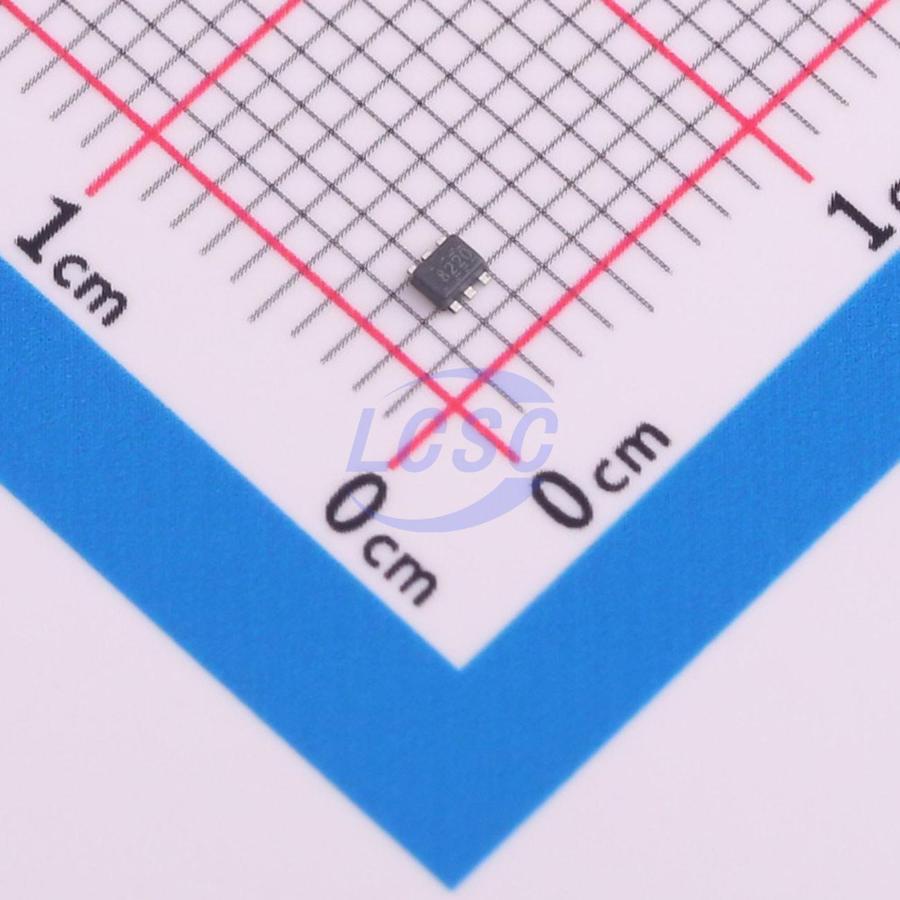

DRV8220DRLR
4.5V~18V SOT-563 Motor Drivers, Controllers RoHS
SOT-563ROHS CompliantActive
H-bridge motor driver with PWM, PH/EN, and half-bridge control interfaces and low-power sleep mode
- Manufacturer
- TI
- Manufacturer part #
- DRV8220DRLR
- Store part #
- C3681351
- Package / case
- SOT-563
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,659 in stock
#C3681351
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.06 | ₹107.06 |
| 10+ | ₹88.60 | ₹886.00 |
| 30+ | ₹79.38 | ₹2,381.40 |
| 100+ | ₹70.37 | ₹7,037.00 |
| 500+ | ₹65.01 | ₹32,505.00 |
| 1,000+ | ₹62.01 | ₹62,010.00 |
1 × ₹107.06
₹107.06
excl. GST
₹126.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DRV8220DRLR
₹107.06 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 4.5V~18V
- Interface
- PWM
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 960nA
- Peak Current
- 1.76A
- RDS(on)
- 1Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.01 g
