TIDatasheet (PDF)

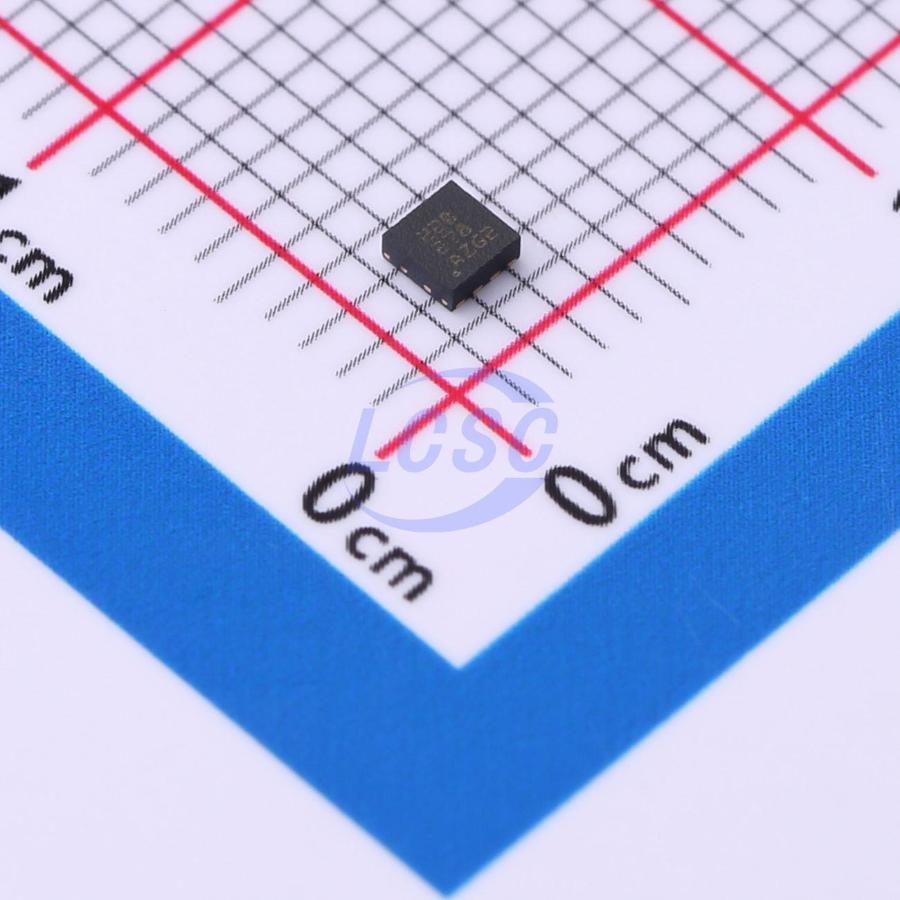

DRV8220DSGR
4.5V~18V WSON-8(2x2) Motor Drivers, Controllers RoHS
WSON-8(2x2)ROHS3 CompliantActive
H-bridge motor driver with PWM, PH/EN, and half-bridge control interfaces and low-power sleep mode
- Manufacturer
- TI
- Manufacturer part #
- DRV8220DSGR
- Store part #
- C3681269
- Package / case
- WSON-8(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,712 in stock
#C3681269
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.20 | ₹77.20 |
| 10+ | ₹65.70 | ₹657.00 |
| 30+ | ₹57.46 | ₹1,723.80 |
| 100+ | ₹50.74 | ₹5,074.00 |
| 500+ | ₹48.57 | ₹24,285.00 |
| 1,000+ | ₹47.27 | ₹47,270.00 |
1 × ₹77.20
₹77.20
excl. GST
₹91.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8220DSGR
₹77.20 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 4.5V~18V
- Interface
- PWM
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 960nA
- Peak Current
- 1.76A
- RDS(on)
- 1Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.09 g
