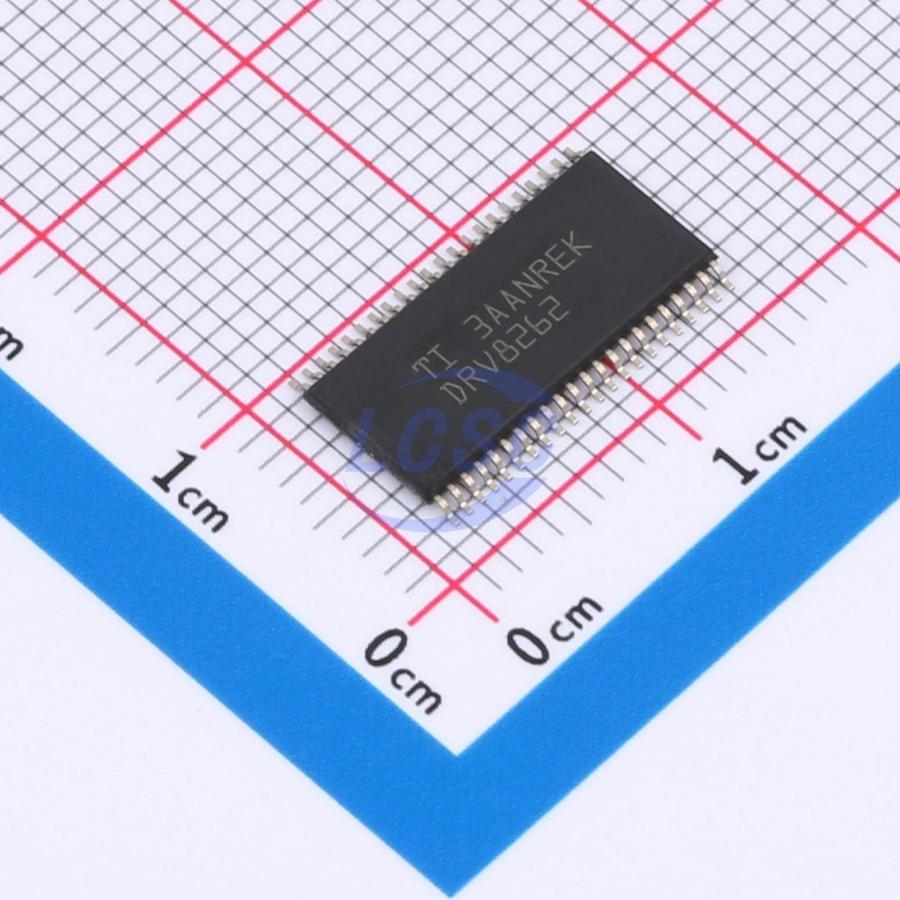

DRV8262DDWR

HTSSOP-44 Motor Drivers, Controllers RoHS

HTSSOP-44ROHS3 CompliantActive

60V single-channel or dual-channel H-bridge motor driver with current detection output

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,732 in stock

#C22427252

Stock & price checked 6 days ago

Quantity (min 1)

1 × ₹1,299.81

₹1,299.81

excl. GST

₹1,533.78 incl. 18% GST

DRV8262DDWR

₹1,299.81 for 1 + GST

Specifications

Drive Type: Bipolar Driver
Number of H-bridges: 2
Features: Power-on reset;Overvoltage protection;Built-in charge pump;Overcurrent Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
Technology: Yes
Operating Temperature: -40℃~+125℃
Control Voltage: 3.05V~5.5V
RDS(on): 100mΩ
Motor Drive Voltage(Vm): 4.5V~65V

Single or dual H-bridge motor driver – Drives One or two brushed-DC motors – One stepper motor – One or two thermoelectric coolers (TEC)

4.5 V to 65 V operating supply voltage range
Low RDS(ON): 100 mΩ HS + LS (Dual H-Bridge); 50 mΩ HS + LS (Single H-Bridge)
High output current capability: Dual H-Bridge (24 V, 25 °C): 8-A peak with DDW package; 16-A peak with DDV package; Single H-Bridge (24 V, 25 °C): 16-A peak with DDW package; 32-A peak with DDV package
Pin-to-pin compatible with: DRV8252: 48V, H-bridge motor driver
Programmable interface of operation: Phase/Enable (PH/EN); PWM (IN/IN)
Integrated current sense and regulation: Current sensing for high-side MOSFETs; Sense output (IPROPI) for each H-bridge; ± 4 % sense accuracy at maximum current
Separate logic supply voltage (VCC)
Configurable off-Time PWM chopping: 7, 16, 24 or 32 μs
Programmable fault recovery method
Supports 1.8-V, 3.3-V, 5.0-V logic inputs
Low-current sleep mode (3 μA)
Protection features: VM undervoltage lockout (UVLO); Charge pump undervoltage (CPUV); Overcurrent protection (OCP); Thermal shutdown (OTSD); Fault condition output (nFAULT)
