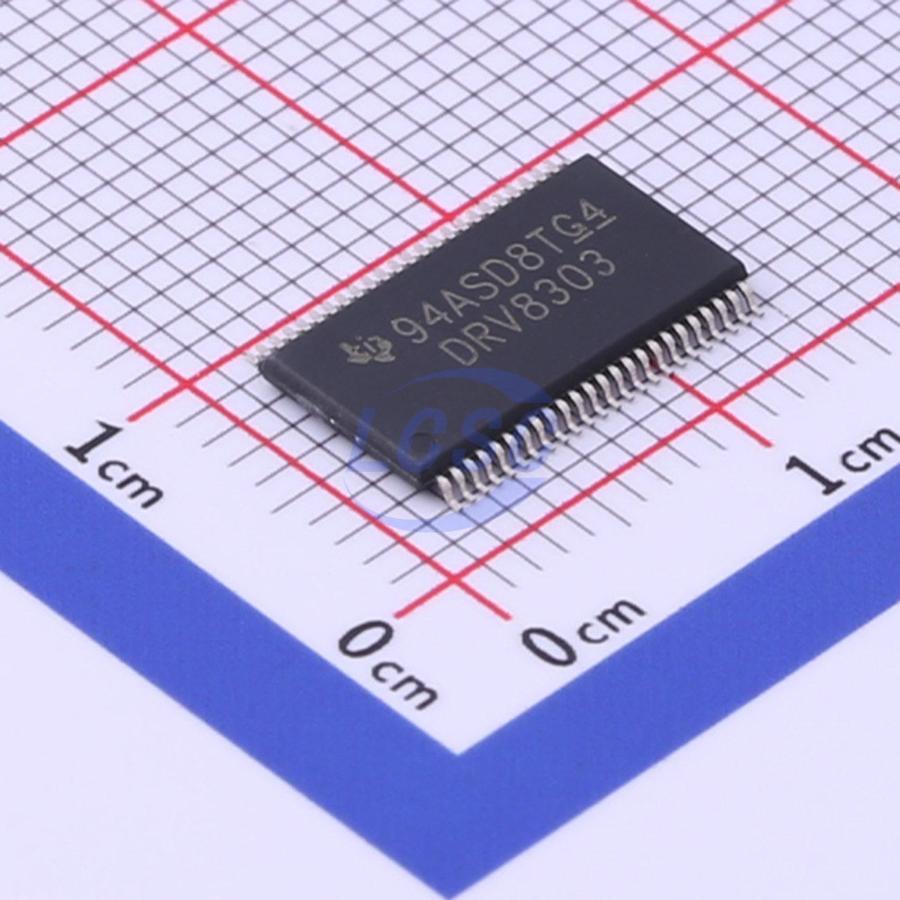

DRV8303DCAR
Three Phase 6V~60V MOSFET 1.7A 2.3A HTSSOP-48-EP-6.1mm Motor Drivers, Controllers RoHS
Three-phase gate driver with two current shunt amplifiers
- Manufacturer
- TI
- Manufacturer part #
- DRV8303DCAR
- Store part #
- C91880
- Package / case
- HTSSOP-48-EP-6.1mm
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,493 in stock
#C91880
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹399.08 | ₹399.08 |
| 10+ | ₹339.69 | ₹3,396.90 |
| 30+ | ₹302.56 | ₹9,076.80 |
| 100+ | ₹264.34 | ₹26,434.00 |
| 500+ | ₹247.27 | ₹1,23,635.00 |
| 1,000+ | ₹239.71 | ₹2,39,710.00 |
1 × ₹399.08
₹399.08
excl. GST
₹470.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8303DCAR
₹399.08 for 1 + GST
Specifications
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Overcurrent Protection;Charge pump boost
- Driven Configuration
- Three Phase
- Voltage - Supply
- 6V~60V
- Number of Channels
- 6
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 50uA
- Load Type
- MOSFET
- Input Logic Level - High
- 2V
- Current - Output High(IOH)
- 1.7A
- Input Logic Level - Low
- 800mV
- Current - Output Low(IOL)
- 2.3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.357 g
Overview
The DRV8303 is a gate driver IC suitable for three-phase motor drive applications. This device provides three half-bridge drivers, each capable of driving two N-channel MOSFETs. The device supports a maximum pull current of 1.7A and a peak current of 2.3A. The DRV8303 can operate with a single power supply within a wide power supply range of 6V to 60V. It uses a bootstrap gate driver architecture and a trickle charging circuit to support a 100% duty cycle. The DRV8303 uses an automatic handshaking mechanism when switching high-side or low-side MOSFETs to prevent current shoot-through. The integrated VDS sensing of high-side and low-side MOSFETs is used to prevent overcurrent in the external power stage. The DRV8303 has two shunt amplifiers for accurate current measurement. These two amplifiers support bidirectional current sensing and can provide an adjustable output offset voltage of up to 3V. The Serial Peripheral Interface (SPI) provides detailed fault reporting and flexible parameter settings, such as gain options for the current shunt amplifier and slew rate control for the gate driver.
Applications
- Three-phase BLDC and PMSM motors
- CPAP and pumps
- E-bikes
- Power tools
- Robotics and RC toys
- Industrial automation
Key features
- 6V to 60V operating supply voltage range
- 1.7A source and 2.3A sink gate drive current capability
- Slew rate control for reduced EMI
- Bootstrap gate driver supporting 100% duty cycle
- 6 or 3 PWM input modes
- Dual integrated current shunt amplifiers with adjustable gain and offset
- 3.3V and 5V interface support
- SPI
- Programmable dead-time control (DTC)
- Programmable overcurrent protection (OCP)
- PVDD and GVDD undervoltage lockout (UVLO)
- GVDD overvoltage lockout (OVLO)
- Overtemperature warning/shutdown (OTW/OTS)
- Reporting via nFAULT, nOCTW, and SPI registers
