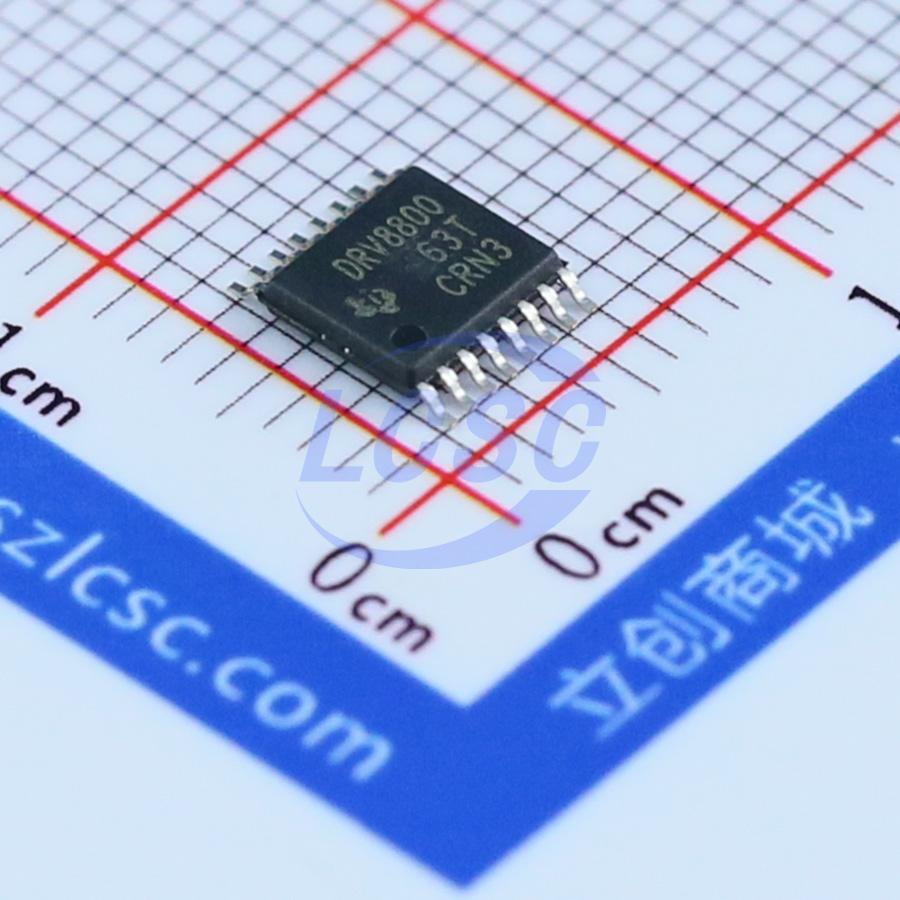

DRV8800PWPR
TSSOP-16-EP Motor Drivers, Controllers RoHS
DMOS FULL-BRIDGE MOTOR DRIVERS
- Manufacturer
- TI
- Manufacturer part #
- DRV8800PWPR
- Store part #
- C32579
- Package / case
- TSSOP-16-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,746 in stock
#C32579
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.91 | ₹175.91 |
| 10+ | ₹146.34 | ₹1,463.40 |
| 30+ | ₹129.81 | ₹3,894.30 |
| 100+ | ₹111.54 | ₹11,154.00 |
| 500+ | ₹91.33 | ₹45,665.00 |
| 1,000+ | ₹87.64 | ₹87,640.00 |
1 × ₹175.91
₹175.91
excl. GST
₹207.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8800PWPR
₹175.91 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 10uA
- Peak Current
- 2.8A
- RDS(on)
- 740mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.345 g
Overview
Designed to control dc motors by using pulse width modulation (PWM), the DRV8800/DRV8801 is capable of peak output currents up to ±2.8 A and operating voltages up to 36V. The PHASE and ENABLE inputs provide dc motor speed and direction control by applying external pulse- width modulation (PWM) and control signals. Internal synchronous rectification control circuitry provides lower power dissipation during PWM operation. Internal circuit protection includes motor lead short- to- supply/short- to- ground, thermal shutdown with hysteresis, undervoltage monitoring of VBB and VCP, and crossover- current protection. The DRV8800/DRV8801 is supplied in a thin- profile 16- pin QFN (RTY) PowerPAD™ package, providing enhanced thermal dissipation. The devices are lead free (Pb free).
Applications
- Printers
- Industrial Automation
Key features
- Low ON-Resistance [rps(on)] Outputs
- Overcurrent Protection
- Motor Lead Short-to-Supply Protection
- Short-to-Ground Protection
- Low-Power Mode
- Synchronous Rectification
- Diagnostic Output
- Internal Undervoltage Lockout (UVLO)
- Crossover-Current Protection
- 16-Pin QFN With PowerPAD™ Package
