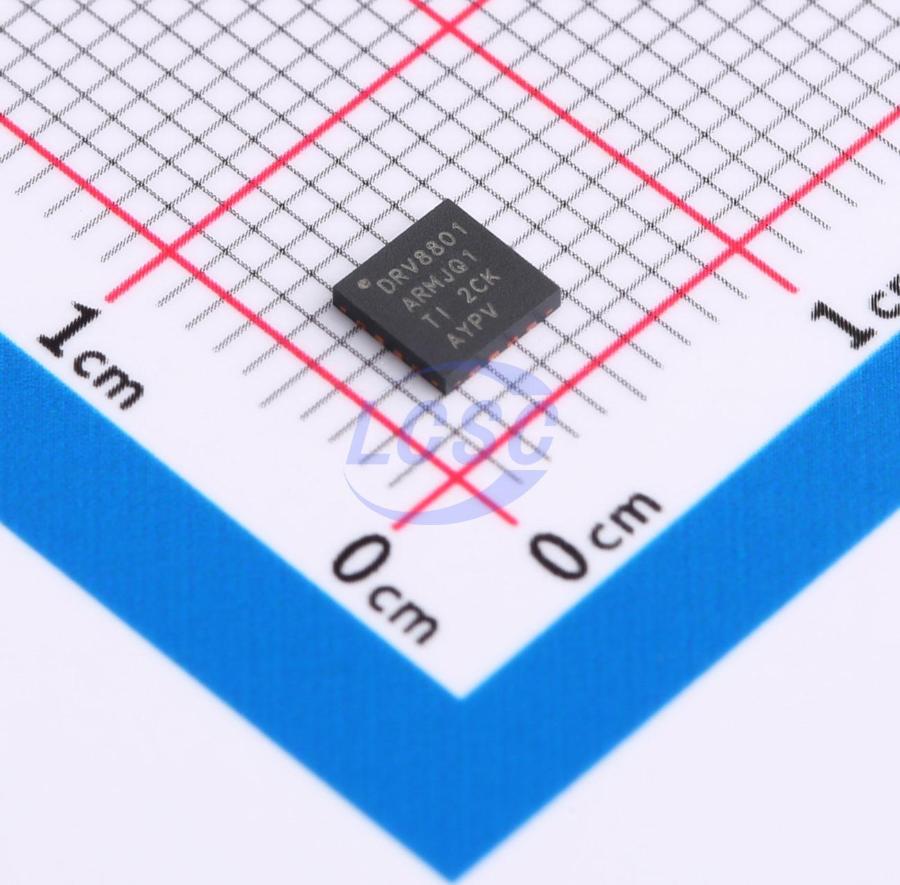

DRV8801AQRMJRQ1
6.5V~36V WQFN-16-EP(4x4) Motor Drivers, Controllers RoHS
DRV8801A-Q1 DMOS full-bridge motor driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8801AQRMJRQ1
- Store part #
- C701788
- Package / case
- WQFN-16-EP(4x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,093 in stock
#C701788
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹197.06 | ₹197.06 |
| 10+ | ₹161.91 | ₹1,619.10 |
| 30+ | ₹142.59 | ₹4,277.70 |
| 100+ | ₹120.67 | ₹12,067.00 |
| 500+ | ₹110.91 | ₹55,455.00 |
| 1,000+ | ₹106.57 | ₹1,06,570.00 |
1 × ₹197.06
₹197.06
excl. GST
₹232.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8801AQRMJRQ1
₹197.06 for 1 + GST
Specifications
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 6.5V~36V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 10uA
- Peak Current
- 2.8A
- RDS(on)
- 830mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.06 g
Overview
The DRV8801A-Q1 device is equipped with an H-bridge driver, providing a versatile motor driver solution. This device can drive a brushed DC motor or one winding of a stepper motor, as well as other devices such as solenoids. A simple PHASE and ENABLE interface can be easily connected to the controller circuit. The output stage uses N-channel power MOSFETs configured as an H-bridge. The DRV8801A-Q1 device can provide a peak output current of up to ±2.8A and withstand an operating voltage of up to 36V. The required gate drive voltage can be generated by an internal charge pump. The low-power sleep mode can turn off part of the internal circuits to achieve extremely low quiescent current and power consumption. A dedicated nSLEEP pin can be used to set this sleep mode. The provided internal protection features include undervoltage lockout, overcurrent protection, power short-circuit protection, ground short-circuit protection, overheat warning, and overheat shutdown. Overcurrent (including ground short-circuit and power short-circuit) and overheat fault conditions are indicated by the nFAULT pin. The DRV8801A-Q1 device is available in a PowerPAD 16-pin ultra-thin quad flat no-lead (WQFN) package (environmentally friendly: RoHS compliant and antimony/bromine free).
Applications
- Automotive body systems
- Door locks
- HVAC actuators
- Piezoelectric alarms
Key features
- Automotive-qualified
- Low on-resistance (0.83Ω) output
- Low-power sleep mode with 100% PWM support
- 6.5V to 36V wide supply voltage range
- Thermally enhanced surface-mount package
- Configurable overcurrent limit
- VBB undervoltage lockout (UVLO)
- Overcurrent protection (OCP)
- Power supply short-circuit protection
- Ground short-circuit protection
- Overtemperature warning (OTW)
- Overtemperature shutdown (OTS)
- Pin (nFAULT) indication for overcurrent and overtemperature fault conditions
