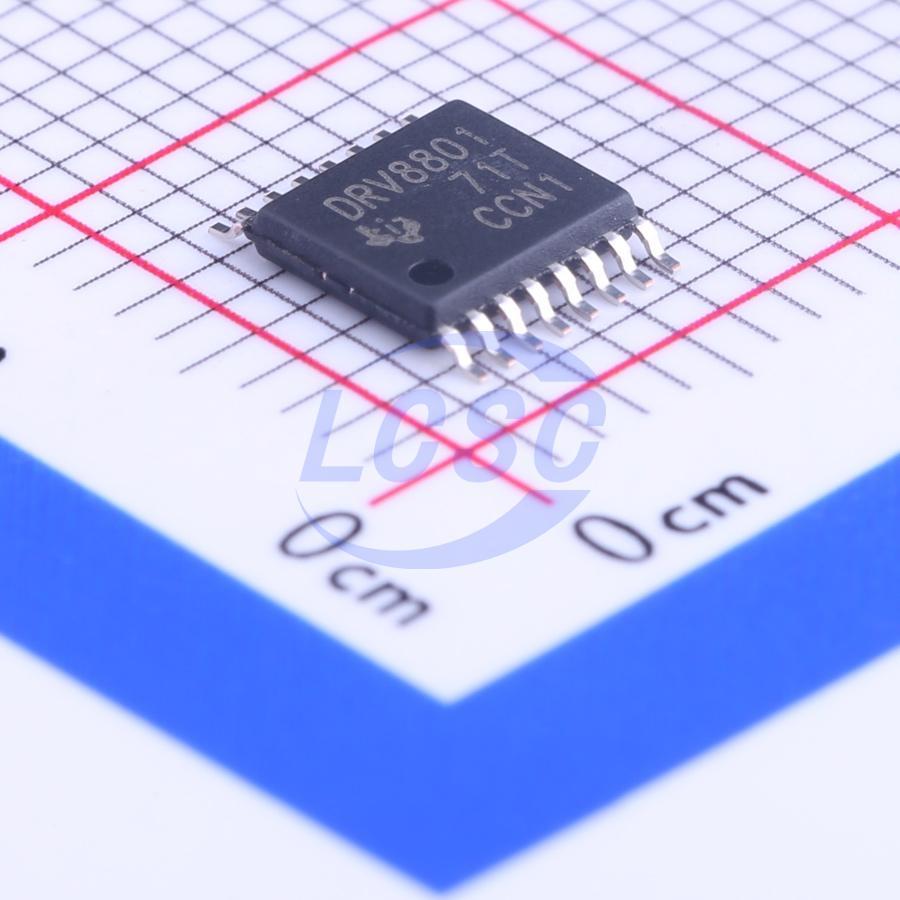

DRV8801PWPR
8V~36V HTSSOP-16-EP Motor Drivers, Controllers RoHS
DMOS Full-Bridge Motor Drivers
- Manufacturer
- TI
- Manufacturer part #
- DRV8801PWPR
- Store part #
- C41146
- Package / case
- HTSSOP-16-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37,757 in stock
#C41146
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.82 | ₹109.82 |
| 10+ | ₹86.38 | ₹863.80 |
| 30+ | ₹74.88 | ₹2,246.40 |
| 100+ | ₹63.37 | ₹6,337.00 |
| 500+ | ₹56.44 | ₹28,220.00 |
| 1,000+ | ₹52.75 | ₹52,750.00 |
1 × ₹109.82
₹109.82
excl. GST
₹129.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8801PWPR
₹109.82 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 8V~36V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 10uA
- Peak Current
- 2.8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.158 g
Overview
The DRV880x provides a versatile motor driver solution with a variety of capabilities. The device contains a full H-bridge which can be used to drive a brushed DC motor, one winding of a stepper motor, or other devices such as solenoids. A simple PHASE-ENABLE interface allows easy interfacing to controller circuits. The output stages use N-channel power MOSFETs configured as an H-bridge. The DRV880x is capable of peak output currents up to ±2.8 A and operating voltages up to 36 V. An internal charge pump generates the needed gate drive voltages. A low-power sleep mode is provided which shuts down internal circuitry to achieve a very low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin. Internal protection functions are provided for undervoltage, charge pump fault, overcurrent, short-to-supply, short-to-ground, and overtemperature. Fault conditions are indicated through the nFAULT pin. The DRV880x is packaged in a 16-pin WQFN package with PowerPAD (Eco-friendly: RoHS & no Sb/Br).
Applications
- Printers
- Industrial Automation
- Robotics
Key features
- H-Bridge Motor Driver
- Low RDS(on) MOSFETs (0.4-Ω Typical)
- Low-Power Sleep Mode
- 100% PWM Supported
- 8-V to 36-V Operating Supply Voltage Range
- Thermally Enhanced Surface-Mount Package
- Protection Features: VBB Undervoltage Lockout (UVLO)
- Charge Pump Undervoltage (CPUV)
- Overcurrent Protection (OCP)
- Short-to-Supply Protection
- Short-to-Ground Protection
- Overtemperature Warning (OTW)
- Overtemperature Shutdown (OTS)
- Fault Condition Indication Pin (nFAULT)
