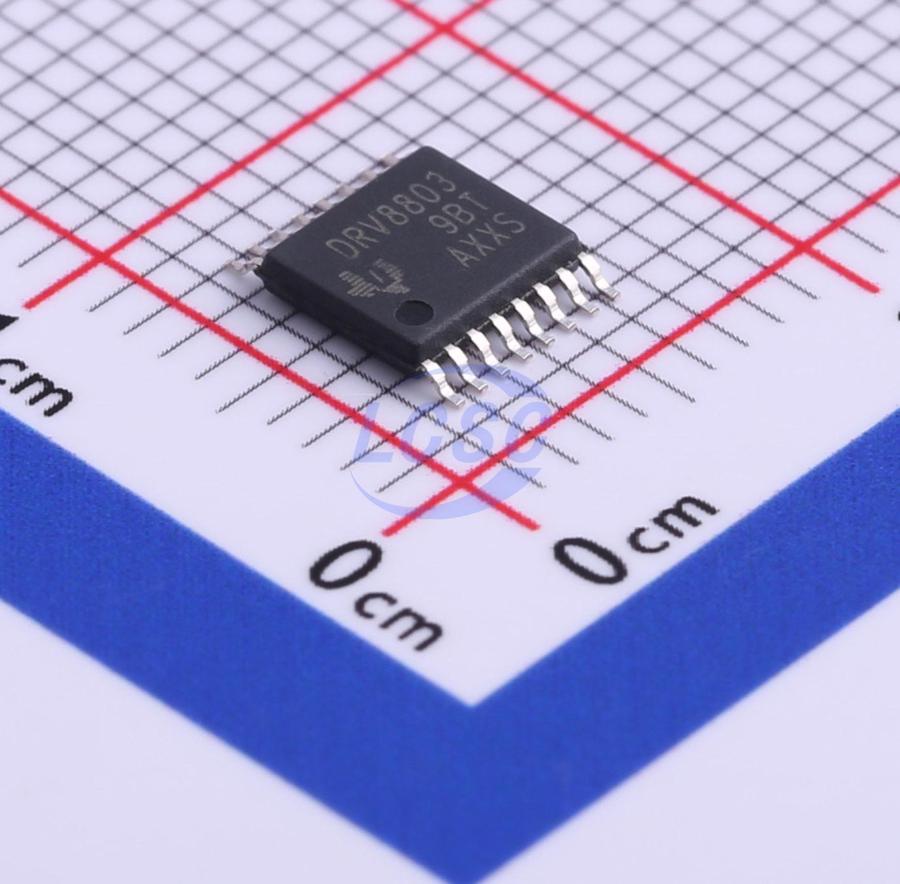

DRV8803PWPR
Low Side 8.2V~60V MOSFET HTSSOP-16-EP Motor Drivers, Controllers RoHS
Quad Low-Side Driver IC
- Manufacturer
- TI
- Manufacturer part #
- DRV8803PWPR
- Store part #
- C114177
- Package / case
- HTSSOP-16-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,674 in stock
#C114177
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.65 | ₹212.65 |
| 10+ | ₹176.16 | ₹1,761.60 |
| 30+ | ₹156.17 | ₹4,685.10 |
| 100+ | ₹133.58 | ₹13,358.00 |
| 500+ | ₹112.08 | ₹56,040.00 |
| 1,000+ | ₹107.52 | ₹1,07,520.00 |
1 × ₹212.65
₹212.65
excl. GST
₹250.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8803PWPR
₹212.65 for 1 + GST
Specifications
- Features
- Enable shutdown;Overcurrent Protection
- Driven Configuration
- Low Side
- Number of Channels
- 4
- Voltage - Supply
- 8.2V~60V
- Propagation Delay tpHL
- 800ns
- Operating Temperature
- -40℃~+150℃
- Load Type
- MOSFET
- Input Logic Level - High
- 2V
- Propagation Delay tpLH
- 800ns
- Input Logic Level - Low
- 700mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.418 g
Overview
The DRV8803 provides a 4-channel low side driver with overcurrent protection. It has built-in diodes to clamp turnoff transients generated by inductive loads and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads. In the SOIC (DW) package, the DRV8803 can supply up to 1.5-A (one channel on) or 800-mA (all channels on) continuous output current per channel, at 25°C. In the HTSSOP (PWP) package, it can supply up to 2-A (one channel on) or 1-A (four channels on) continuous output current per channel, at 25°C with proper PCB heatsinking. The device is controlled through a simple parallel interface. Internal shutdown functions are provided for over current protection, short circuit protection, undervoltage lockout and overtemperature and faults are indicated by a fault output pin. The DRV8803 is available in a 20-pin thermally enhanced SOIC package and a 16-pin HTSSOP package (Eco-friendly: RoHS & no Sb/Br).
Applications
- Relay Drivers
- Unipolar Stepper Motor Drivers
- Solenoid Drivers
- General Low-Side Switch Applications
Key features
- 4-Channel Protected Low-Side Driver Four NMOS FETs With Overcurrent Protection Integrated Inductive Clamp Diodes
- Parallel Interface
- DW Package: 1.5-A (Single Channel On) / 800-mA (Four Channels On) Maximum Drive Current per Channel (at 25°C)
- PWP Package: 2-A (Single Channel On) / 1-A (Four Channels On) Maximum Drive Current per Channel (at 25°C, With Proper PCB Heatsinking)
- 8.2-V to 60-V Operating Supply Voltage Range
- Thermally Enhanced Surface Mount Package
