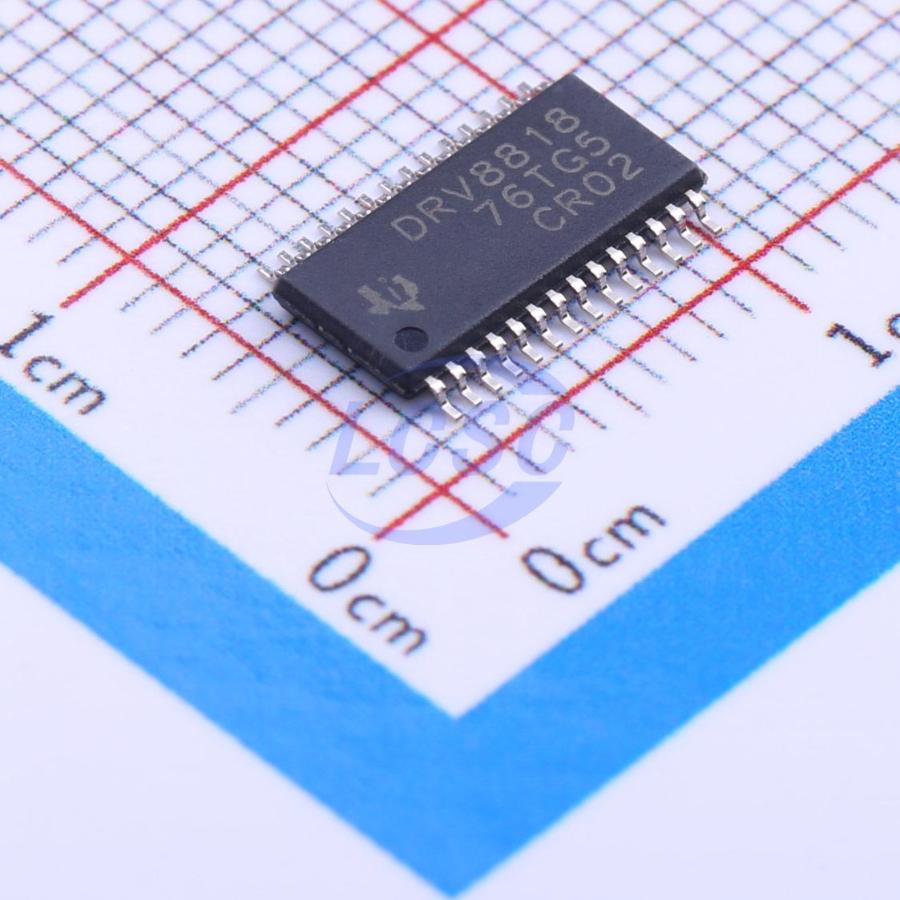

DRV8818PWPR
HTSSOP-28 Motor Drivers, Controllers RoHS
Stepper Motor Controller IC
- Manufacturer
- TI
- Manufacturer part #
- DRV8818PWPR
- Store part #
- C99045
- Package / case
- HTSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
62,423 in stock
#C99045
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.13 | ₹175.13 |
| 10+ | ₹142.56 | ₹1,425.60 |
| 30+ | ₹124.65 | ₹3,739.50 |
| 100+ | ₹104.39 | ₹10,439.00 |
| 500+ | ₹84.68 | ₹42,340.00 |
| 1,000+ | ₹80.51 | ₹80,510.00 |
1 × ₹175.13
₹175.13
excl. GST
₹206.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8818PWPR
₹175.13 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Overcurrent Protection;Over temperature protection;Under-voltage lockout;Dead-time / shoot-through protection
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -40℃~+150℃
- Output Current
- 2.5A
- Step Resolution
- 8
- Control Voltage
- 3V~5.5V
- RDS(on)
- 220mΩ
- Motor Drive Voltage(Vm)
- 8V~35V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
Pulse Width Modulation (PWM) Microstepping Motor Driver Built-In Microstepping Indexer Up to 8 Microsteps/Step Step and Direction Control Programmable Mixed Decay, Blanking, and Off Time Up to 2.5-A Current Per Winding Low 0.37-Ω (HS + LS) MOSFET RDS(ON) (25°C) 8-V to 35-V Operating Supply Voltage Range Pin to Pin Upgrade for DRV8811 With Lower RDS(ON) Thermally-Enhanced Surface Mount Package Protection Features VM Undervoltage Lockout (UVLO) Overcurrent Protection (OCP) Thermal Shutdown (TSD) The DRV8818 provides an integrated stepper motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, as well as microstepping indexer logic to control a stepper motor. The output driver block for each consists of Nchannel power MOSFETs configured as full Hbridges to drive the motor windings. A simple STEP/DIRECTION interface allows easy interfacing to controller circuits. The mode pins allow for configuration of the motor in full-step, half-step, quarter-step, or eighth-step modes. Decay mode and PWM off time are programmable. Internal shutdown functions are provided for over current protection, short circuit protection, undervoltage lockout and overtemperature. The DRV8818 is packaged in a 28-pin HTSSOP package with PowerPAD.
Applications
- Printers
- Textile Machinery Positioning/Tracking
- Factory Automation
- Robotics
Key features
- Pulse Width Modulation (PWM) Microstepping Motor Driver
- Built-In Microstepping Indexer
- Up to 8 Microsteps/Step
- Step and Direction Control
- Programmable Mixed Decay, Blanking, and Off Time
- Up to 2.5-A Current Per Winding
- Low 0.37-Ω (HS + LS) MOSFET RDS(ON) (25°C)
- 8-V to 35-V Operating Supply Voltage Range
- Pin to Pin Upgrade for DRV8811 With Lower RDS(ON)
- Thermally-Enhanced Surface Mount Package
- Protection Features VM Undervoltage Lockout (UVLO) Overcurrent Protection (OCP) Thermal Shutdown (TSD)
