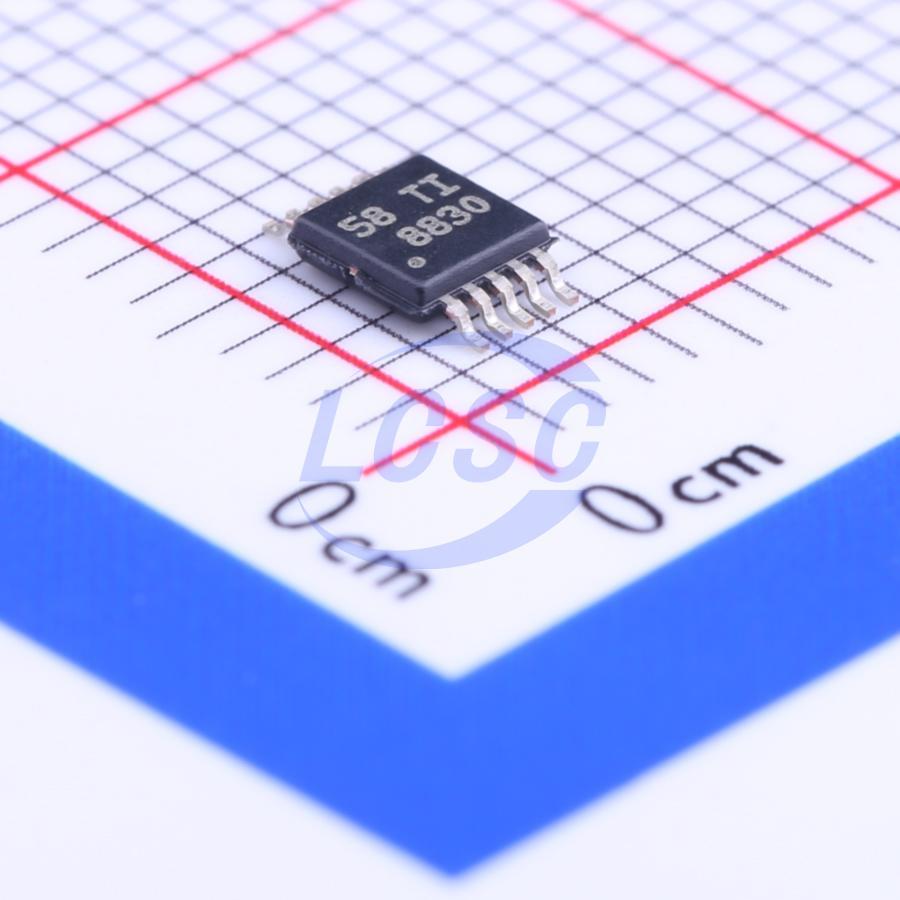

DRV8830DGQR

The DRV8830 device provides an integrated motor driver solution for battery-powered toys, printers, and other low-voltage or battery-powered motion control applications. The device has one H-bridge driver, and can drive one DC motor or one winding of a stepper motor, as well as other loads like solenoids. The output driver block consists of N-channel and P-channel power MOSFETs configured as an H-bridge to drive the motor winding. Provided with sufficient PCB heatsinking, the DRV8830 can supply up to 1-A of DC/RMS or peak output current. It operates on power supply voltages from 2.75 V to 6.8 V. To maintain constant motor speed over varying battery voltages while maintaining long battery life, a PWM voltage regulation method is provided. The output voltage is programmed through an I²C-compatible interface, using an internal voltage reference and DAC. Internal protection functions are provided for over current protection, short-circuit protection, undervoltage lockout, and overtemperature protection. The DRV8830 is available in a tiny 3 mm × 3 mm 10-pin VSON package and HVSSOP package with PowerPAD (Eco-friendly: RoHS & no Sb/Br).

Applications

• Battery-Powered:
• Printers
• Toys
• Robotics
• Cameras
• Phones
• Small Actuators, Pumps, and so forth

Key features

• H-Bridge Voltage-Controlled Motor Driver
• Drives DC Motor, One Winding of a Stepper Motor, or Other Actuators/Loads
• Efficient PWM Voltage Control for Constant Motor Speed With Varying Supply Voltages
• Low MOSFET On-Resistance: HS + LS 450 mΩ
• 1-A Maximum DC/RMS or Peak Drive Current
• 2.75-V to 6.8-V Operating Supply Voltage Range
• 300-nA (Typical) Sleep Mode Current
• Serial I²C-Compatible Interface
• Multiple Address Selections Allow Up to 9 Devices on One I²C Bus
• Current Limit Circuit and Fault Output
• Thermally-Enhanced Surface Mount Packages
