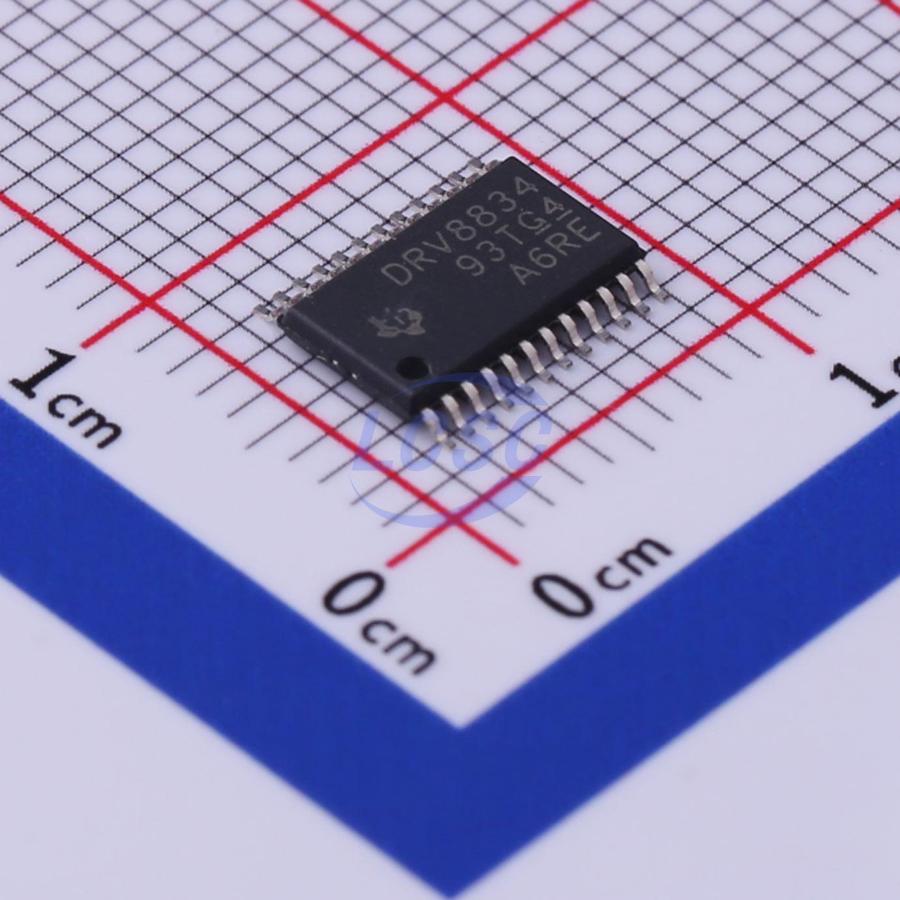

DRV8834PWPR
HTSSOP-24 Motor Drivers, Controllers RoHS
Dual-Bridge Stepper or DC Motor Driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8834PWPR
- Store part #
- C456273
- Package / case
- HTSSOP-24
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,823 in stock
#C456273
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹285.85 | ₹285.85 |
| 10+ | ₹259.37 | ₹2,593.70 |
| 30+ | ₹242.88 | ₹7,286.40 |
| 100+ | ₹226.17 | ₹22,617.00 |
| 500+ | ₹218.57 | ₹1,09,285.00 |
| 1,000+ | ₹215.31 | ₹2,15,310.00 |
1 × ₹285.85
₹285.85
excl. GST
₹337.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8834PWPR
₹285.85 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Motor step-out prevention function;Overcurrent Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Interface
- STEP/DIR
- Operating Temperature
- -40℃~+85℃
- Step Resolution
- 32
- Output Current
- 1.5A
- RDS(on)
- 305mΩ
- Motor Drive Voltage(Vm)
- 2.5V~10.8V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.315 g
Overview
The DRV8834 provides a flexible motor driver solution for toys, printers, cameras, and other mechatronic applications. The device has two H - bridge drivers, and is intended to drive a bipolar stepper motor or two DC motors. The output driver block of each H - bridge consists of N - channel power MOSFETs configured as an H - bridge to drive the motor windings. Each H - bridge includes circuitry to regulate or limit the winding current. With proper PCB design, each H - bridge of the DRV8834 can driving up to 1.5 - A RMS (or DC) continuously, at 25°C with a VM supply of 5 V. The device can support peak currents of up to 2.2 A per bridge. Current capability is reduced slightly at lower VM voltages. Internal shutdown functions with a fault output pin are provided for overcurrent protection, short - circuit protection, undervoltage lockout and overtemperature. A low - power sleep mode is also provided. The DRV8834 is packaged in a 24 - pin HTSSOP or VQFN package with PowerPAD (Eco - friendly: RoHS & no Sb/Br).
Applications
- Battery - Powered Toys
- POS Printers
- Video Security Cameras
- Office Automation Machines
- Gaming Machines Robotics
Key features
- Dual - H - Bridge Current - Control Motor Driver Capable of Driving Two DC Motors or One Stepper Motor
- Two Control Modes: Built - In Indexer Logic With Simple STEP/DIRECTION Control and Up to 1/32 - Step Microstepping PHASE/ENABLE Control, With the Ability to Drive External References for > 1/32 - Step Microstepping
- Output Current 1.5 - A Continuous, 2.2 - A Peak per H - Bridge (at VM = 5 V, 25°C)
- Low RDS(ON): 305 - mΩ HS + LS (at VM = 5 V, 25°C)
- Wide Power Supply Voltage Range: 2.5 V to 10.8 V
- Dynamic tBLANK and Mixed Decay Modes for Smooth Microstepping
- PWM Winding Current Regulation and Limiting
- Thermally Enhanced Surface - Mount Package
