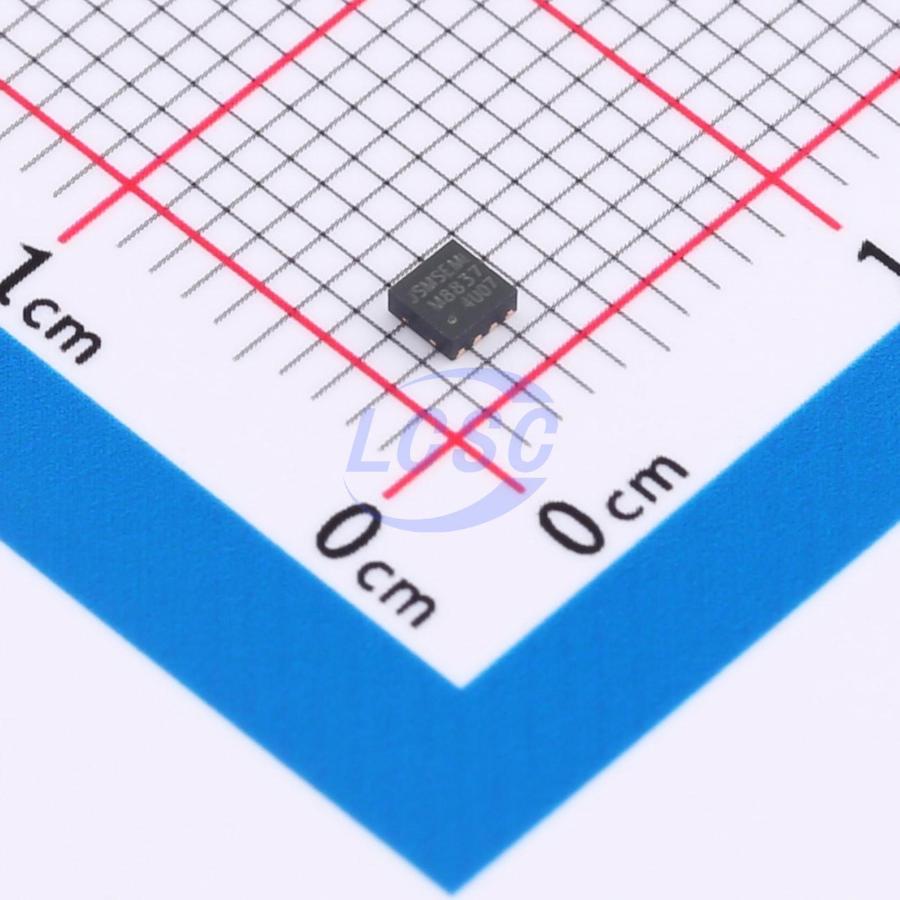

DRV8837DSGR-JSM
DFN-8(2x2) Motor Drivers, Controllers RoHS
1.8A, 12V Low-Voltage H-Bridge Motor Driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- DRV8837DSGR-JSM
- Store part #
- C22447132
- Package / case
- DFN-8(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,785 in stock
#C22447132
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.11 | ₹115.55 |
| 50+ | ₹18.24 | ₹912.00 |
| 150+ | ₹16.15 | ₹2,422.50 |
| 500+ | ₹13.55 | ₹6,775.00 |
| 2,500+ | ₹13.16 | ₹32,900.00 |
| 4,000+ | ₹12.48 | ₹49,920.00 |
5 × ₹23.11
₹115.55
excl. GST
₹136.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DRV8837DSGR-JSM
₹115.55 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 1
- Features
- Built-in charge pump;Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1.8A
- Control Voltage
- 1.8V~7V
- RDS(on)
- 330mΩ
- Motor Drive Voltage(Vm)
- 0V~12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The DRV8837 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one DC motor or other devices such as solenoids. The output driver block consists of N-channel power MOSFETs configured as an H-bridge for driving motor windings. An integrated charge pump generates the required gate drive voltage. The DRV8837 can deliver up to 1.8A of output current. Its motor supply voltage input range is 0 to 12V, and the logic supply voltage input range is 1.8V to 7.0V. The device features a PWM input interface compatible with industry-standard devices. The DRV8837 has an ultra-low power standby mode with a standby current of 120nA. It incorporates internal shutdown functions including overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection. The chip comes in a compact DFN2X2-8 package with an exposed thermal pad for effective heat dissipation.
Applications
- Camera
- Motor control
- Toys
- Robotics
- Medical devices
Key features
- Separate motor and logic supply pins: motor VM: 0 to 12V; logic VCC: 1.8 to 7V
- Low RDS(on), high-side HS + LS: 330mΩ
- nSLEEP pin for low-power sleep mode (120nA)
- Maximum drive current: 1.8A
- PWM or PH/EN interface support; DRV8837 supports PWM (IN1/IN2) interface
- Comprehensive fault protection: VCC UVLO, overcurrent protection, and integrated overtemperature protection
- Compact DFN2X2-8 package
