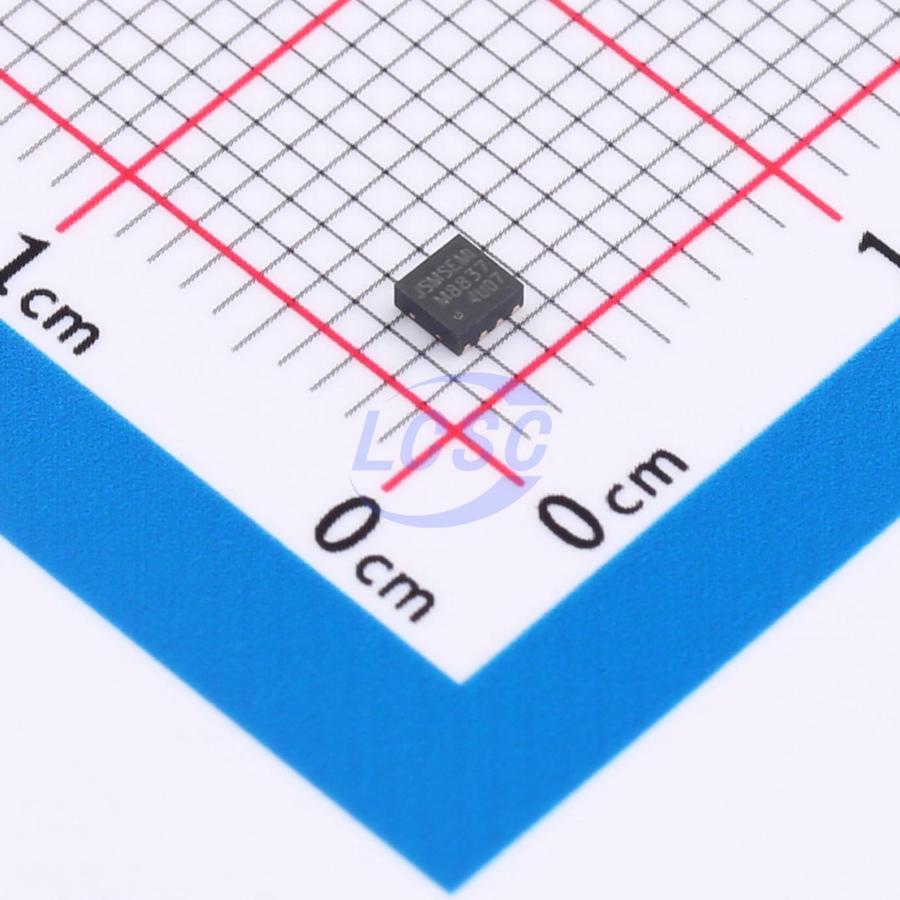

DRV8837DSGT-JSM
DFN-8(2x2) Motor Drivers, Controllers RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- DRV8837DSGT-JSM
- Store part #
- C22447133
- Package / case
- DFN-8(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,100 in stock
#C22447133
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.50 | ₹97.50 |
| 50+ | ₹15.14 | ₹757.00 |
| 150+ | ₹13.26 | ₹1,989.00 |
| 500+ | ₹10.91 | ₹5,455.00 |
| 2,500+ | ₹10.61 | ₹26,525.00 |
| 4,000+ | ₹9.98 | ₹39,920.00 |
5 × ₹19.50
₹97.50
excl. GST
₹115.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DRV8837DSGT-JSM
₹97.50 for 5 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 1
- Features
- Built-in charge pump;Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Output Current
- 1.8A
- Control Voltage
- 1.8V~7V
- RDS(on)
- 330mΩ
- Motor Drive Voltage(Vm)
- 0V~12V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The DRV8837 provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. The device can drive one DC motor or other devices such as solenoids. The output driver block consists of N-channel power MOSFETs configured as an H-bridge for driving motor windings. An integrated charge pump generates the required gate drive voltage. The device is capable of providing up to 1.8A of output current. Its motor supply voltage input range is 0V to 12V, and the logic supply voltage input range is 1.8V to 7.0V. It features a PWM input interface compatible with industry-standard devices. The device offers an ultra-low-power standby mode with a standby current of 120nA. Internal shutdown functions integrate overcurrent protection, short-circuit protection, undervoltage lockout, and thermal shutdown. The chip is housed in a small DFN2X2-8 package with an exposed thermal pad for effective heat dissipation.
Applications
- Cameras
- Consumer products
- Toys
- Robotics
- Medical equipment
- Office equipment
Key features
- Separate motor and logic supply pins: motor supply voltage 0V to 12V, logic supply voltage 1.8V to 7V
- Low RDS(on), high-side plus low-side 330 mΩ
- nSLEEP pin supports low-power sleep mode
- Maximum drive current 1.8A
- PWM or PH/EN interface support
- PWM input interface
- Integrated protection features including logic supply UVLO, overcurrent protection, and built-in thermal shutdown
- Compact DFN2X2-8 package
