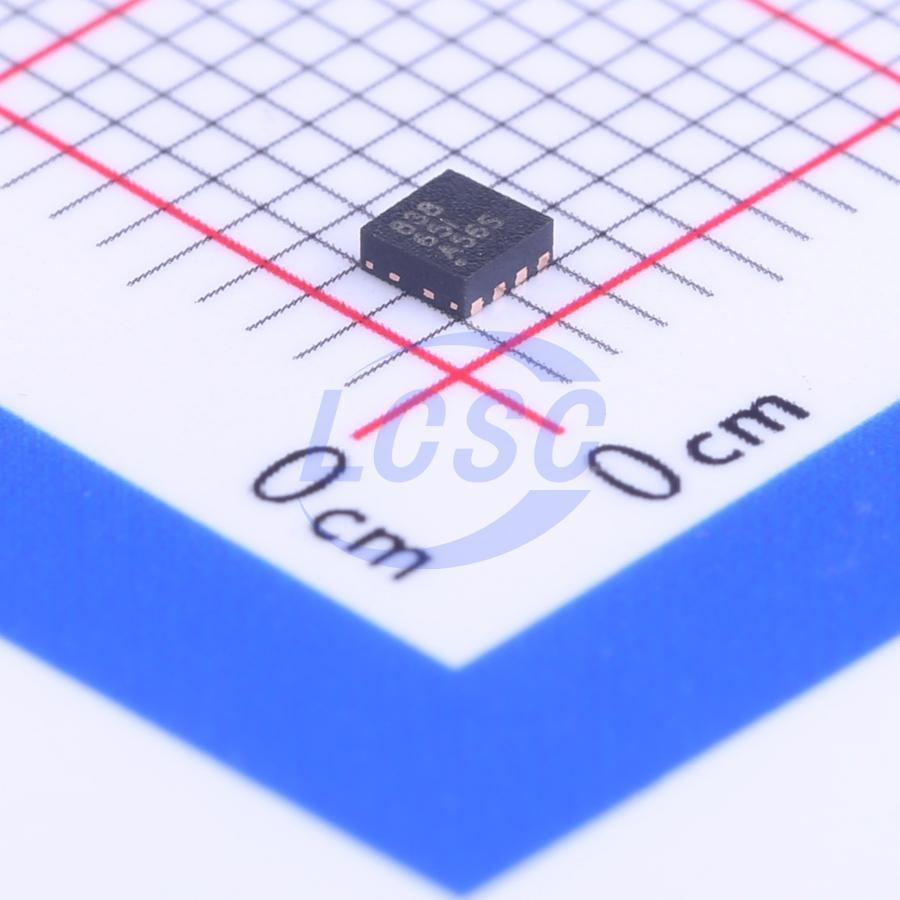

DRV8838DSGR
1.8V~7V WSON-8-EP(2x2) Motor Drivers, Controllers RoHS
DRV883x Low-Voltage H-Bridge Driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8838DSGR
- Store part #
- C86667
- Package / case
- WSON-8-EP(2x2)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,687 in stock
#C86667
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.50 | ₹138.50 |
| 10+ | ₹110.72 | ₹1,107.20 |
| 30+ | ₹96.83 | ₹2,904.90 |
| 100+ | ₹83.15 | ₹8,315.00 |
| 500+ | ₹74.91 | ₹37,455.00 |
| 1,000+ | ₹70.56 | ₹70,560.00 |
1 × ₹138.50
₹138.50
excl. GST
₹163.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8838DSGR
₹138.50 for 1 + GST
Specifications
- Features
- Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 1.8V~7V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 5nA
- Output Current
- 1.8A
- Peak Current
- 1.8A
- RDS(on)
- 280mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.099 g
Overview
The DRV883x provides an integrated motor driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered motion control applications. This device can drive a DC motor or other devices such as solenoids. The output driver block consists of N-channel power MOSFETs configured as an H-bridge to drive the motor windings. An internal charge pump generates the required gate drive voltage. The DRV883x can provide an output current of up to 1.8A. It operates with a motor supply voltage between 0 and 11V and a device supply voltage in the range of 1.8V to 7.0V. The DRV8837 features a PWM (IN/IN) input interface; the DRV8838 features a PH/EN input interface. Both interfaces are compatible with industry-standard devices. Internal shutdown functions for overcurrent protection, short-circuit protection, undervoltage lockout, and thermal protection are also provided.
Applications
- Cameras
- Digital Single-Lens Reflex (DSLR) Lenses
- Consumer Products
- Toys
- Robotics
- Medical Devices
Key features
- H-bridge motor driver
- Drives one DC motor or other load
- Low MOSFET on-resistance: HS + LS 280mΩ
- 1.8A maximum drive current
- Separate motor and logic supply pins: motor VM: 0 to 11V, logic VCC: 1.8 to 7V
- PWM or PH/EN interface: DRV8837: PWM, IN1/IN2; DRV8838: PH/EN
- Low-power sleep mode with 120nA maximum sleep current, nSLEEP pin
- Small package: 8-pin WSON (PowerPAD) 2.0mm×2.0mm
- Protection features: VCC UVLO, OCP, TSD
